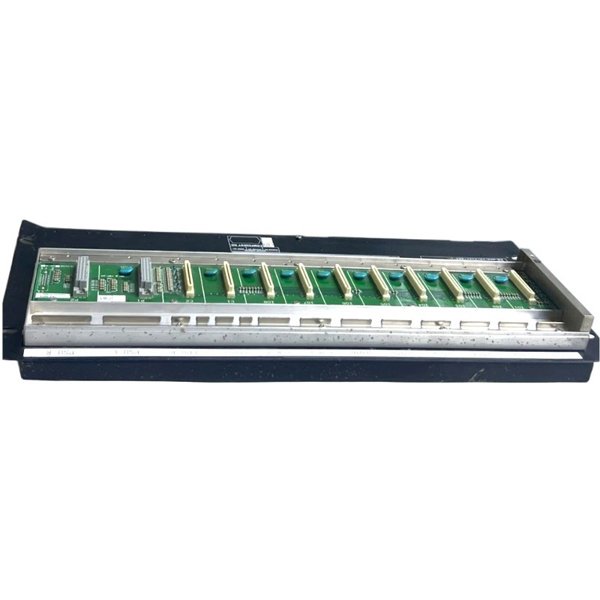

Yokogawa SSC60D-F2542 Duplex Safety control unit

The Yokogawa SSC60D-F2542 is a high-performance solid-state relay designed for industrial automation and control systems. Known for its reliability and precision, this device offers robust switching capabilities for both AC and DC loads, making it an essential component in modern process control environments. Its compact design allows integration into existing control panels with minimal space requirements, while ensuring stable and accurate operation under a wide range of operating conditions.

The SSC60D-F2542 is widely adopted in sectors such as chemical processing, oil and gas, power generation, and advanced manufacturing, where precise electrical switching and safety are critical. Yokogawa’s reputation for durability and long-term performance is well-reflected in this model, which combines ease of installation, maintenance, and compatibility with multiple industrial systems.

Product Advantages

• High Switching Reliability: Provides consistent and precise switching with minimal electrical noise.

• Compact and Lightweight: Facilitates easy installation in constrained panel spaces without compromising performance.

• Wide Operating Voltage Range: Supports various industrial power conditions, ensuring versatility.

• Low Heat Generation: Optimized design minimizes thermal load and reduces cooling requirements.

• Enhanced Safety Features: Offers built-in overcurrent and short-circuit protection to safeguard connected devices.

• Long Service Life: Solid-state design reduces mechanical wear, leading to extended operational lifespan.

• Compatibility: Seamlessly integrates with existing Yokogawa control systems and third-party equipment.

Technical Specifications

Product Applications

• Industrial Automation: Switching heavy machinery, motors, and solenoid valves.

• Process Control Systems: Accurate activation/deactivation of heating, cooling, and pumping units.

• Power Distribution Systems: Reliable load management in AC and DC circuits.

• Chemical and Petrochemical Industries: Safe and efficient switching for hazardous environment systems.

• Renewable Energy Applications: Control of solar inverters, wind turbines, and battery management systems.

• General Manufacturing: Conveyor systems, robotic arms, and automated production lines.

Installation Instructions

1. Ensure the control panel power is off before installation.

2. Mount the relay securely using the designated mounting holes, observing proper spacing for ventilation.

3. Connect input control terminals according to the provided voltage specifications.

4. Connect load terminals ensuring correct polarity for DC loads.

5. Verify isolation distances and check wiring against the schematic diagram.

6. Power on the system and perform functional testing.

7. Regular maintenance should include periodic inspection for dust, temperature monitoring, and terminal tightening.

FAQ

Q1: What is the maximum load current for SSC60D-F2542?

• The maximum rated load current is 60A. Exceeding this may damage the relay.

Q2: Can this relay handle both AC and DC loads?

• Yes, it is designed for both AC and DC switching applications.

Q3: What is the operating temperature range?

• The device operates safely from -20°C to +80°C.

Q4: How do I ensure proper installation?

• Follow the installation instructions carefully, maintain correct polarity for DC, and secure the unit in a ventilated location.

Q5: Is SSC60D-F2542 compatible with other Yokogawa systems?

• Yes, it integrates seamlessly with multiple Yokogawa controllers and panels.

Q6: What protection features are included?

• It includes overcurrent protection, short-circuit protection, and isolation for safe operation.

Q7: How long is the service life?

• Solid-state construction ensures a longer lifespan than traditional mechanical relays, typically exceeding 5 years under normal use.

Q8: Can it be used in high-humidity environments?

• Yes, it can operate safely in 5–95% relative humidity without condensation.

Q9: How fast does the relay switch?

• Switching response time ranges from 1–5 milliseconds depending on load and control voltage.

Q10: Are there certifications for safety compliance?

Yes, it holds CE, UL, and RoHS certifications, meeting international safety and environmental standards.
