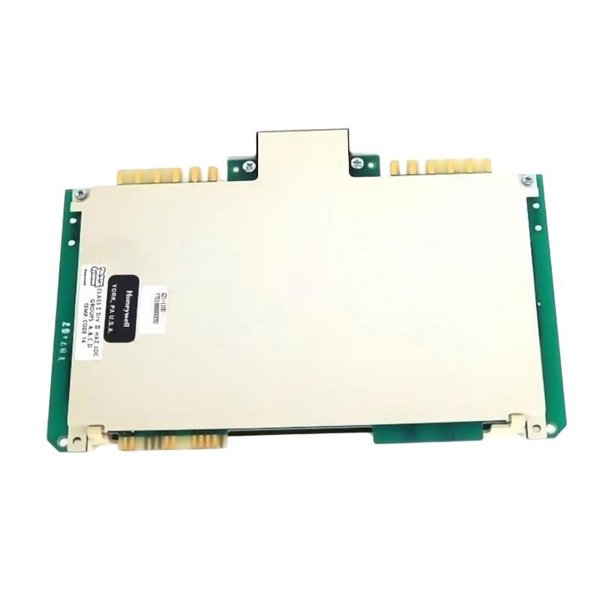

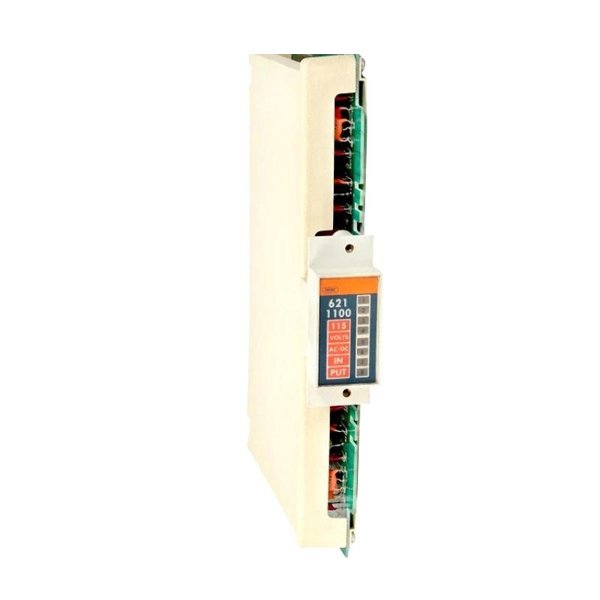

Honeywell 621-1100 Digital Input Module

The Honeywell 621-1100 Digital Input Module is a robust, high-performance component designed for use in Honeywell’s TDC 3000 and PlantScape Distributed Control Systems (DCS). This module enables direct acquisition of binary (on/off) signals from field devices such as switches, limit sensors, interlocks, and alarms.

With 16 individually isolated channels, the 621-1100 provides real-time detection of field signals, enhancing system responsiveness and operational reliability. Its compact design, diagnostic capabilities, and seamless integration into Honeywell process control architectures make it an essential choice for industrial applications requiring dependable discrete signal monitoring.

Engineered to function in harsh industrial environments, the 621-1100 ensures system integrity through optical isolation, signal filtering, and redundant communication support. It is a proven solution for high-availability control systems where accuracy, speed, and diagnostics are critical.

Technical Specifications

Application Scenarios

The 621-1100 Digital Input Module is widely adopted across industries where binary field signals must be monitored reliably and safely. Its versatility and rugged design make it suitable for numerous sectors:

• Petrochemical Plants: Monitoring of valve actuators, pumps, and alarm contacts.

• Oil & Gas Facilities: Detection of pressure switches, shutdown systems, and relay signals.

• Power Generation: Supervises turbine status, circuit breaker contacts, and interlocks.

• Water Treatment Systems: Tracks level indicators, flow switches, and pump logic.

• Pharmaceutical Manufacturing: Safety interlocks, cleanroom access control, and valve states.

• Automotive Production: Conveyor switches, safety doors, and machinery diagnostics.

Product Advantages

• High-Density I/O: 16 channels allow high signal concentration per module, saving space and reducing cost.

• Advanced Diagnostics: Built-in diagnostics enable proactive maintenance and fault isolation.

• Reliable Signal Integrity: Optical isolation prevents signal interference and ground loops.

• Seamless System Integration: Fully compatible with Honeywell’s legacy and modern DCS platforms.

• Long Operational Life: Built for continuous operation in demanding industrial conditions.

• Redundancy & Fault Tolerance: Supports redundant backplane communications for enhanced availability.

• Flexible Input Handling: Capable of interfacing with both dry contacts and voltage-based signals.

• Low Power Consumption: Efficient operation without excessive power drain.

Frequently Asked Questions (FAQ)

1. What is the main function of the 621-1100 module?

   It collects binary input signals from field devices and transmits their status to the control system.

2. How many signals can it read simultaneously?

   The module supports 16 digital inputs at once, each isolated from one another.

3. Can I use both dry contacts and voltage signals?

   Yes, the module is designed to support both dry contact closures and 24VDC signal levels.

4. Is this module hot-swappable?

   In certain rack configurations, the 621-1100 supports hot-swapping under safe operating conditions.

5. What type of redundancy is supported?

   It uses a redundant I/O backplane bus for high system availability.

6. Does it offer self-diagnostics?

   Yes, it provides status indicators for open circuits, signal presence, and module health.

7. Can it operate in extreme temperatures?

   Yes, it functions between -20°C and +60°C, with storage capability down to -40°C.

8. Is there a software configuration tool for this module?

   It is configured and monitored using Honeywell’s DCS configuration tools like LCN or Experion software suites.

9. What’s the physical installation process like?

   It is mounted into a designated rack slot in Honeywell’s I/O chassis and connects via a backplane interface.

10. How durable is the module in industrial environments?

    With robust design standards and optical isolation, the module excels in high-vibration, high-temperature, and dusty environments.
