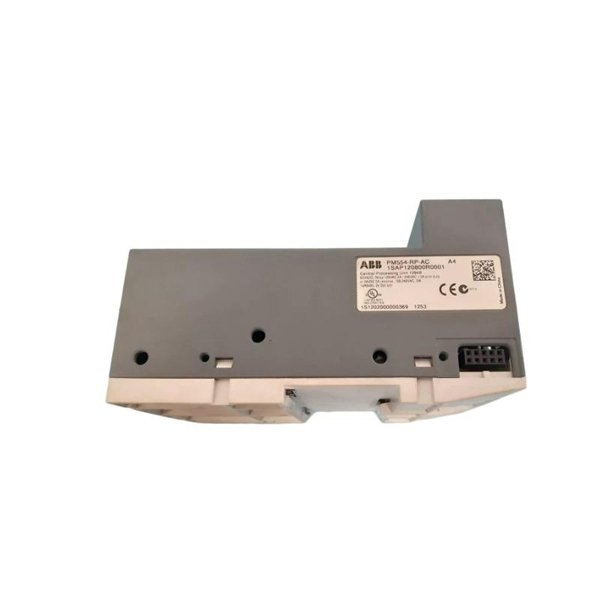

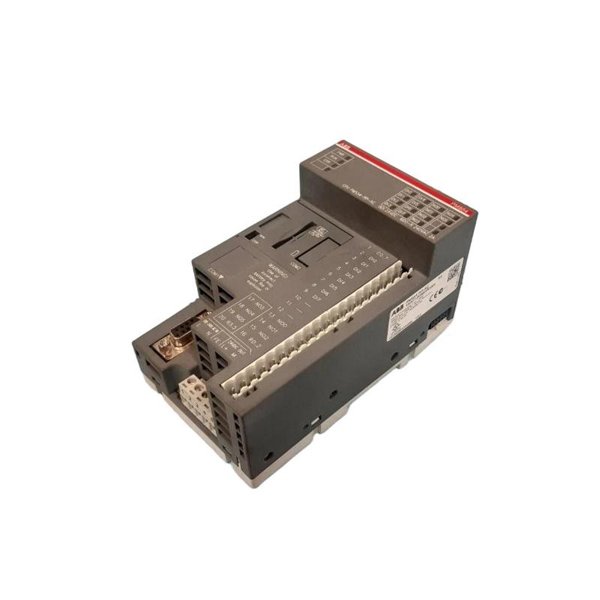

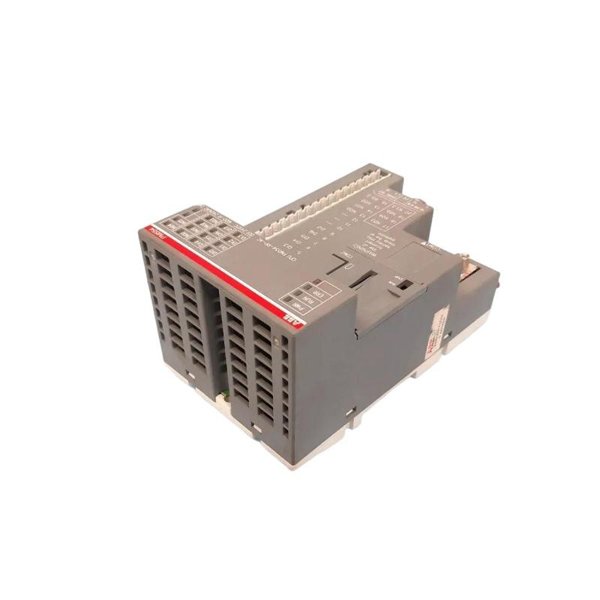

ABB PM554-RP-AC 1SAP120800R0001 AC500 Processor Module
Manufacturer:ABB
Product Number:PM554-RP-AC 1SAP120800R0001
Product Type:AC500 Processor Module
Origin:Sweden (SE)
Dimensions:137 x 35.6 x 137.16 mm
Weight:0.397 kg
Views:32
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PM554-RP-AC is a compact AC500-eCo processor module designed for cost-effective automation solutions. It integrates 8 digital inputs and 6 relay outputs, supports 128 kB program memory, and is powered by a 100–240 V AC supply. Ideal for small to medium-sized control systems, it provides robust performance and reliability within industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | PM554-RP-AC (1SAP120800R0001) |
| Series | AC500-eCo |
| Supply Voltage | 100 V AC to 240 V AC |
| Power Consumption (typ.) | 20 mA at 100 V AC, 12 mA at 240 V AC |
| Inrush Current (nominal) | Typ. 0.3 A²s |
| Digital Inputs | 8 |
| Digital Outputs | 6 Relay |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR, 1 kB RETAIN, 2 kB MB |
| CPU | Freescale ARM 32-bit, 50 MHz |
| Interfaces | I/O Bus, COM1 (RS-485), optional COM2 |
| Programming Languages | IL, FBD, LD, SFC, ST, CFC |
| Mounting | Horizontal or Vertical |
| Dimensions (W x D x H) | 137 x 35.6 x 137.16 mm |
| Weight | 0.397 kg (approx. 400 g) |
| Operating Temperature | 0 °C to +60 °C (horizontal) |
| Protection Class | IP20 |
| Approvals | IEC 61131-2, CE, UL, marine certifications |
Applications
-
Building automation systems
-
Small machine control
-
Water treatment plants
-
Packaging and labeling systems
-
Conveyor and transport systems
-
Light industrial process control
Advantages
-
Operates directly on AC mains power (100–240 V AC)
-
Integrated digital I/Os reduce system footprint
-
Fast instruction cycle time for efficient logic execution
-
Supports multiple IEC 61131 programming languages
-
Space-saving design ideal for DIN rail installations
-
Fully compatible with AC500-eCo accessories
Frequently Asked Questions (FAQ)
Q1: What is the power supply range for the PM554-RP-AC?
A1: It supports a wide-range AC input from 100 V to 240 V AC.
Q2: How many digital inputs and outputs are included?
A2: It features 8 digital inputs and 6 relay digital outputs.
Q3: What type of CPU is used?
A3: It uses a 32-bit Freescale ARM processor operating at 50 MHz.
Q4: Is the module suitable for horizontal and vertical mounting?
A4: Yes, both orientations are supported.
Q5: Can this module be used with Modbus?
A5: Yes, Modbus master and slave communication is supported over COM1.
Q6: What is the typical power consumption?
A6: 20 mA at 100 V AC and 12 mA at 240 V AC.
Q7: What programming languages are supported?
A7: IL, FBD, LD, SFC, ST, and CFC.
Q8: Does the unit include real-time clock functionality?
A8: RTC is optional via accessory TA561-RTC.
Q9: What protection class does this module meet?
A9: IP20.
Q10: Are accessories like memory cards or communication modules available?
A10: Yes, such as MC503 (memory card), TA562-RS (RS-485), TA561-RTC (real-time clock).
