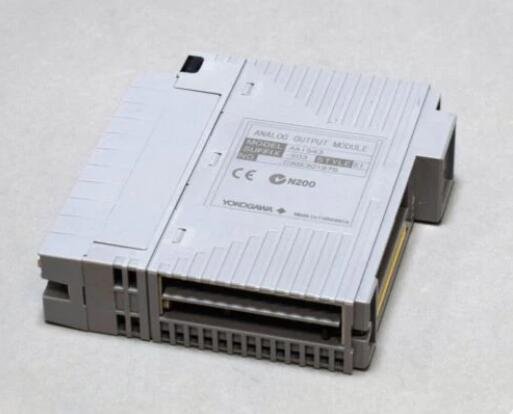

Yokogawa AAI543-S03 Current Output Module

The Yokogawa AAI543-S03 is a high-performance, 16-channel current output module that provides a wide range of output options for industrial automation applications. It features a 4 to 20 mA output range, low noise, and high accuracy, making it ideal for demanding applications.

Features

• 16 independent channels of current output
• Wide output range: 4 to 20 mA
• High resolution: 16 bits
• Low noise: <0.1%
• High accuracy: <0.01%
• RoHS compliant
• CE certified
• 1-year warranty

Specification of Yokogawa AAI543-S03

• Product Type : Current Output Module
• Number of output channels : 16, isolated, standard switch-over response in redundant configuration
• Output signal : 4 to 20 mA
• Withstanding voltage : Between output and system: 1500 V AC, For 1 minute
• Maximum current consumption : 230 mA (5 V DC), 540 mA (24 V DC)
• External communication : Pressure clamp terminal, MIL connector cable, Dedicated cable
• Suffix Codes : S=Standard type ,  3=With ISA Standard G3 option and temperature
• Weight : 0.4 kg
