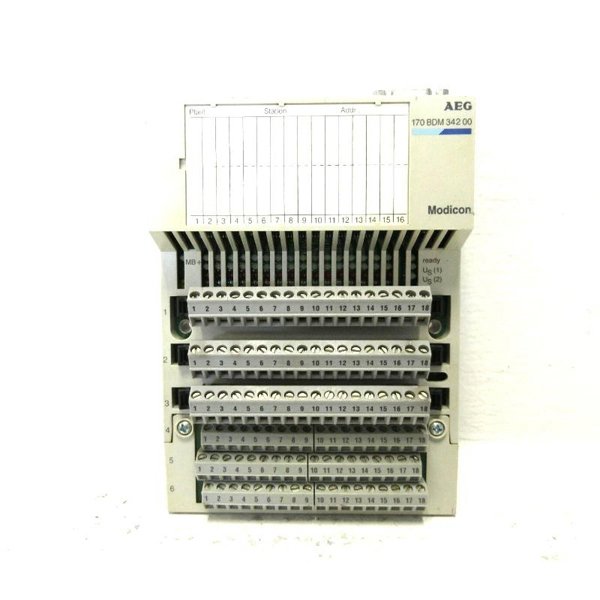

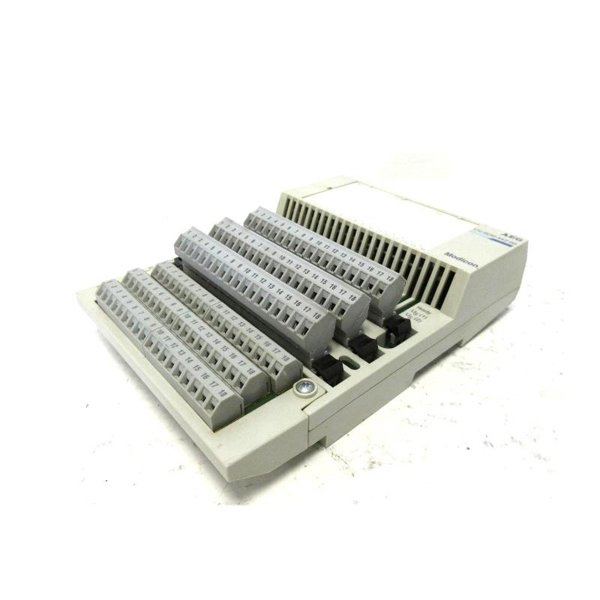

Schneider 170BDM34200 Modbus Plus TIO Input Module
Manufacturer:Schneider
Product Number:170BDM34200
Product Type:Modbus Plus TIO Input Module
Origin:France
Dimensions:125 × 141.5 × 47.5 mm
Weight:0.30 kg
Views:139
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider 170BDM34200 is a TIO (Transparent Input/Output) Input Module designed for Modbus Plus networks. It provides reliable and high-speed communication for distributed I/O systems in industrial automation. This module is built for robustness and efficient integration into the Modicon Momentum platform.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Modbus Plus TIO Input Module |
| Communication Protocol | Modbus Plus |
| Network Connection | 1 × DB9 female connector |
| Mounting Type | DIN Rail / Panel |
| Voltage Range | 5 VDC (via base) |
| Module Type | Transparent I/O |
| I/O Compatibility | Supports Modicon Momentum I/O |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 125 × 141.5 × 47.5 mm |
| Weight | 0.30 kg |
Applications
-
SCADA and telemetry systems
-
Factory automation
-
Energy and utility monitoring
Advantages
-
Seamless integration with Modicon Momentum I/O bases
-
High-speed Modbus Plus communication
-
Transparent data handling for efficient control
-
Compact and lightweight for space-constrained panels
-
Easy installation and maintenance
-
Compatible with wide industrial environments
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 170BDM34200 module?
A1: It serves as a Modbus Plus interface module for Transparent I/O in distributed systems.
Q2: Is this module compatible with all Modicon Momentum bases?
A2: Yes, it is designed to work with Modicon Momentum I/O bases.
Q3: Can it be used in harsh industrial environments?
A3: Yes, it supports wide temperature ranges and high humidity.
Q4: What is the communication connector type?
A4: It uses a DB9 female connector for Modbus Plus networks.
Q5: Does this module support hot-swapping?
A5: No, power must be off before insertion or removal.
Q6: What are the power requirements for this module?
A6: It requires 5 VDC, typically supplied through the base.
Q7: Is configuration software required?
A7: No, it operates transparently without special configuration.
Q8: What is the installation method?
A8: It supports DIN rail or panel mounting.
Q9: Is this module suitable for real-time applications?
A9: Yes, due to its high-speed communication and transparency.
Q10: Can it communicate with other Modbus networks?
A10: It is designed specifically for Modbus Plus; for other networks, a gateway is required.
