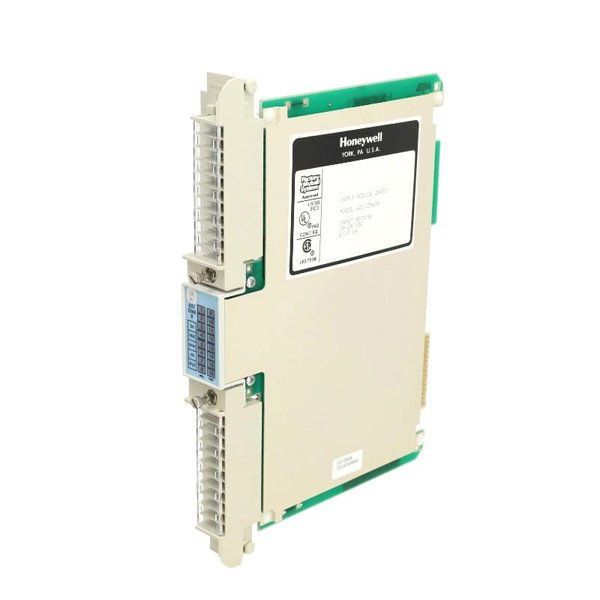

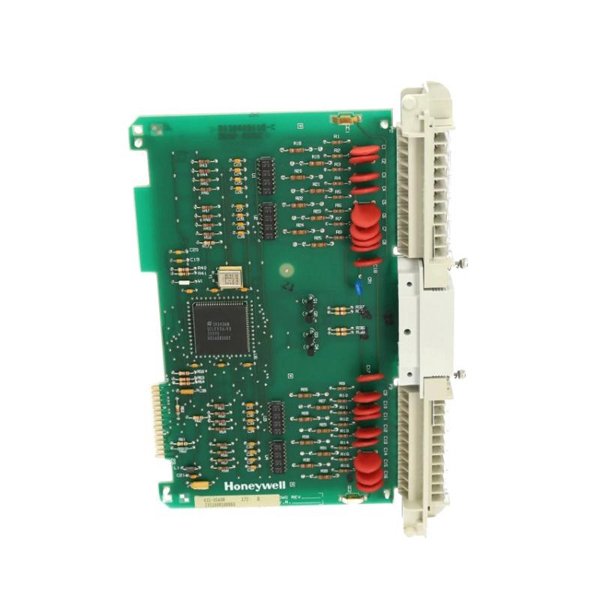

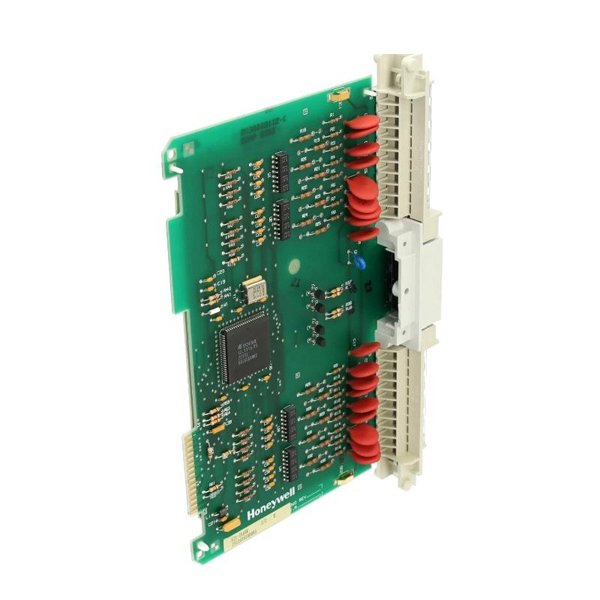

Honeywell 621-3560RC Input Module

The Honeywell 621-3560RC Input Module is a high-reliability analog input module engineered for critical industrial applications within Honeywell’s TDC 3000 control system. Designed to acquire and process analog signals with high precision, this module converts raw field data into digital signals that are essential for process automation and monitoring.

It is equipped with 8 high-accuracy analog input channels, each capable of handling 4–20 mA or 0–10 V signals. The 621-3560RC is known for its superior electrical isolation, quick response time, and robust performance in challenging environments. It integrates seamlessly with existing Honeywell distributed control systems (DCS), providing a reliable backbone for analog data acquisition in sectors such as oil & gas, chemicals, power generation, and water treatment.

Engineered to endure harsh industrial conditions, the 621-3560RC delivers both accuracy and durability. This module helps reduce maintenance efforts and unplanned downtimes through intelligent diagnostic features, making it a preferred choice for facilities requiring stable, long-term operation.

Technical Specifications

Applications

The Honeywell 621-3560RC Input Module is widely used in critical industrial applications where analog data acquisition is required. Its ability to precisely handle multiple input signals makes it ideal for:

• Oil & Gas Operations

  Measurement of flow rates, pipeline pressure, and reservoir monitoring for safe extraction and transport.

• Power Generation Facilities

  Monitoring turbine temperatures, coolant levels, and pressure sensors for optimal performance and safety.

• Chemical Processing Plants

  Collection of pH, temperature, and flow data for automated chemical reactions and safety checks.

• Water & Wastewater Treatment

  Continuous monitoring of turbidity, flow, and chemical dosing levels for regulatory compliance.

• Pharmaceutical Manufacturing

  Precision data capture for controlled environments to ensure compliance with GMP and FDA standards.

• Food & Beverage Production

  Real-time analog monitoring of pasteurization, mixing, and storage processes.

Product Advantages

• High Accuracy and Stability

  Ensures precision measurements even in fluctuating environmental conditions.

• Multiple Signal Handling

  Supports both current and voltage signals, providing adaptability to various sensor types.

• Isolated Channels

  Galvanic isolation protects the system from voltage transients and signal interference.

• Fast Response Time

  Rapid signal conversion allows near real-time monitoring and response.

• Rugged Construction

  Built for harsh environments with a wide operating temperature and humidity tolerance.

• Diagnostic Intelligence

  Onboard diagnostics reduce troubleshooting time and enhance system uptime.

• Easy Integration

  Seamless compatibility with TDC 3000 systems enables plug-and-play efficiency.

• Compact Form Factor

  Space-saving design supports high-density installations in control cabinets.

Frequently Asked Questions (FAQ)

1. What type of input signals does the 621-3560RC accept?

It accepts both 4–20 mA current signals and 0–10 V voltage signals, configurable through software.

2. How many input channels are available on this module?

The 621-3560RC offers 8 isolated analog input channels.

3. Is the module compatible with legacy TDC 3000 systems?

Yes, it is fully compatible with Honeywell TDC 3000 architectures.

4. Can it detect wiring or signal faults?

Yes, the module includes built-in diagnostics for identifying open circuits, shorts, and out-of-range signals.

5. Is it possible to install the module in high-vibration areas?

Yes, when installed in an industrial-grade rack with vibration damping, it performs reliably in such environments.

6. Does it require any specific power supply?

A 24 VDC regulated power supply is required for stable operation.

7. Is software configuration needed before deployment?

Yes, signal type and scaling must be configured via Honeywell’s control system interface.

8. Can this module be hot-swapped?

No, the module should only be replaced or installed when the system is powered down.

9. What is the typical lifespan of the module?

While not hot-swappable, the module is built for long-term use with a typical lifespan exceeding 10 years under normal conditions.

10. Does the module require regular calibration?

Periodic calibration is recommended per industry standards but not required frequently due to its stable internal components.
