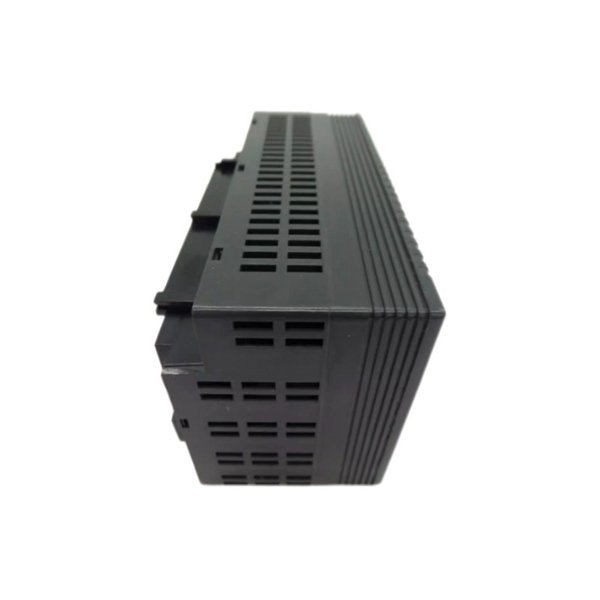

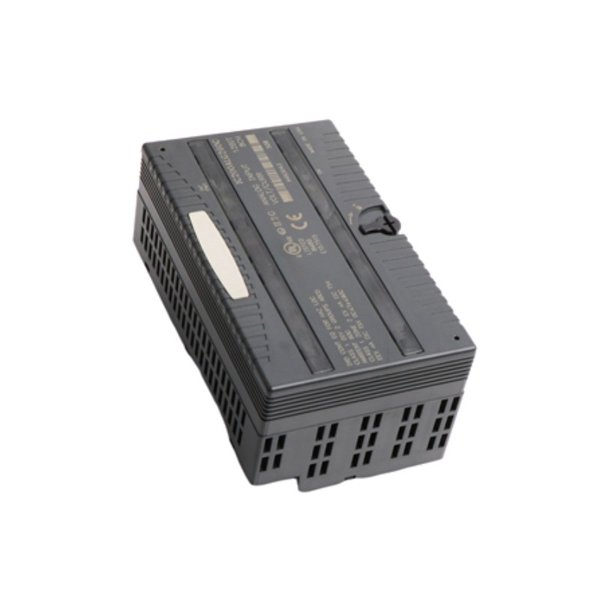

General Electric IC200ALG260C Analog Input Module

The GE IC200ALG260C is a high-performance analog input module designed for use in industrial control systems. It is part of the GE Fanuc series of programmable logic controllers (PLC), offering a flexible and reliable solution for processing analog signals in diverse automation environments. This module is particularly suitable for systems requiring precise analog input measurements, making it ideal for applications in industries such as manufacturing, chemical processing, and power generation. The IC200ALG260C module provides high-resolution data conversion and ensures the safe and efficient operation of control systems by transmitting accurate real-time analog signals to the PLC.

Product Specifications

Product Applications

The GE IC200ALG260C Analog Input Module is ideal for applications that require the conversion of analog signals to a digital format for use in control and automation systems. Some of the key applications include:

• Manufacturing Automation: Collecting data from analog sensors, such as temperature, pressure, and flow rate sensors, to control manufacturing processes.

• Chemical Processing: Monitoring process variables like pressure, flow, and temperature in reactors and mixers.

• Power Generation: Measuring parameters such as voltage, current, and temperature in power plants and electrical grids.

• Building Automation: Integrating temperature, humidity, and air quality sensors into HVAC systems for efficient building management.

• Oil and Gas: Monitoring and controlling flow rates, pressure, and temperature in pipelines and drilling operations.

• Water and Wastewater Treatment: Handling measurements from sensors monitoring water levels, flow rates, and chemical dosing.

Product Advantages

• High Resolution: The module offers 12-bit resolution per channel, ensuring precise analog signal conversion and accuracy.

• Versatile Input Types: Supports both voltage and current inputs (±10 V, 0 to 20 mA, 4 to 20 mA), making it adaptable to a wide range of field devices.

• Wide Temperature Range: With an operating range of -20°C to 60°C, the module is suitable for both indoor and outdoor industrial applications.

• Compact and Easy Installation: The module is designed for easy mounting on DIN rails, facilitating quick installation and maintenance.

• Reliable and Durable: Built to withstand harsh industrial environments, the IC200ALG260C ensures reliable and consistent performance over time.

• LED Status Indicators: Each input channel is equipped with an LED indicator, providing real-time status updates and making troubleshooting easier.

FAQ

1. What is the function of the GE IC200ALG260C module?

   The IC200ALG260C module converts analog signals from sensors (voltage or current) into digital signals for processing by the PLC.

2. How many input channels are available on this module?

   The IC200ALG260C module offers 16 analog input channels.

3. What types of analog inputs does the module support?

   The module supports ±10 V, 0 to 20 mA, and 4 to 20 mA inputs.

4. What is the resolution of the module?

   The module provides 12-bit resolution for each input channel.

5. What is the power supply requirement for the IC200ALG260C module?

   The module operates on a 24 V DC power supply.

6. What is the temperature range of the IC200ALG260C module?

   The module operates in a temperature range of -20°C to 60°C, making it suitable for various industrial environments.

7. What are the dimensions of the IC200ALG260C module?

   The module has dimensions of 110 x 66.8 x 50 mm.

8. How is the IC200ALG260C module mounted?

   The module is mounted on a standard DIN rail for easy installation.

9. How does the module indicate the status of each input?

   Each input channel is equipped with an LED indicator that shows the real-time status of the input.

10. Can the IC200ALG260C module be used in outdoor environments?

    While the module is designed for industrial environments, it is best used in controlled environments as it is not rated for direct exposure to outdoor elements.
