Honeywell CC-PAOH51 51410070-275 Analog Output Module

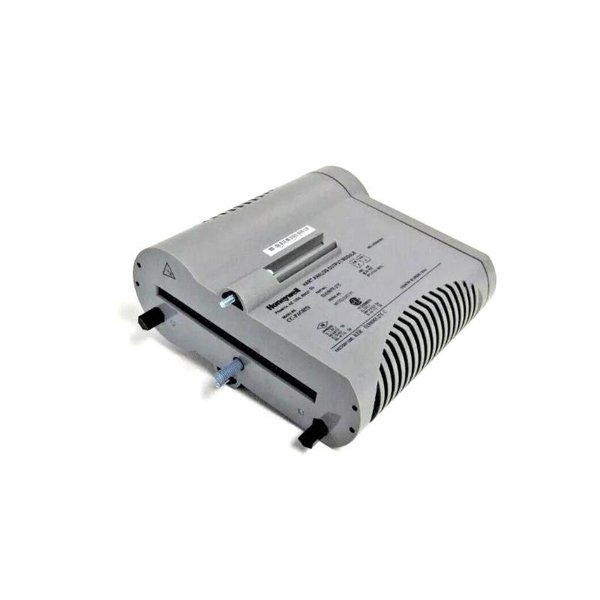

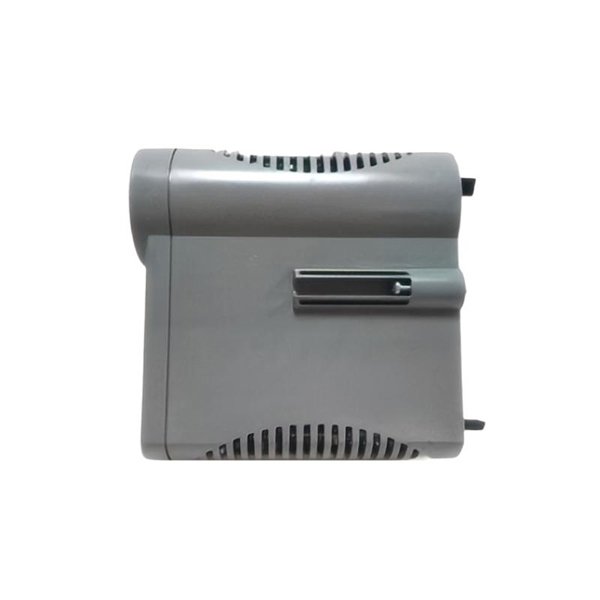

The Honeywell CC-PAOH51 51410070-275 is a high-performance HART Analog Output Module designed for seamless integration into industrial control systems. It facilitates precise conversion of digital signals to analog outputs, enabling accurate control of various field devices such as actuators, valves, and other instrumentation.

This module is an integral component of Honeywell’s Experion® Process Knowledge System (PKS) and the C300 controller family, ensuring reliable and efficient process automation across diverse industrial applications.

Product Specifications

Applications

The Honeywell CC-PAOH51 Analog Output Module is designed for a wide range of industrial applications requiring precise analog signal output and HART communication capabilities. Common applications include:

• Process Control Systems: Regulating actuators, valves, and other control elements in industries such as oil and gas, chemical processing, and power generation.

• Manufacturing Automation: Providing accurate control signals to machinery and production equipment.

• Environmental Monitoring: Controlling devices in systems that monitor environmental parameters.

• Utilities and Energy Management: Managing equipment in water treatment plants, electrical grids, and renewable energy installations.

• Pharmaceutical Production: Ensuring precise control in sensitive manufacturing processes.

• Food and Beverage Industry: Maintaining consistent quality through accurate process control.

Product Advantages

• High Precision and Accuracy: Offers ±0.1% full-scale accuracy and 16-bit resolution for precise control.

• HART Protocol Support: Enables enhanced communication with field devices, allowing for diagnostics and configuration over the same wiring.

• Multiple Output Ranges: Configurable for 4-20 mA, 0-20 mA, and 0-10 V signals to accommodate various devices.

• Robust Isolation: Provides 500V channel-to-channel and 1500V channel-to-system isolation, ensuring signal integrity and safety.

• Fast Response Time: Less than 20 ms response time for timely control actions.

• Wide Operating Temperature Range: Suitable for extreme environments, operating reliably from -40°C to +70°C.

• Compact and Modular Design: Facilitates easy integration into existing systems with minimal space requirements.

• Low Power Consumption: Efficient operation with a maximum power consumption of 4W, reducing overall energy costs.

• Reliable Performance: Designed for high availability and durability in industrial settings.

• Seamless Integration: Fully compatible with Honeywell’s Experion® PKS and C300 controller systems, ensuring smooth system integration.

FAQ

1. Q: What type of analog output signals does the CC-PAOH51 support?

   A: The CC-PAOH51 supports standard output signal ranges including 4–20 mA, 0–20 mA, and 0–10 V, which can be configured based on system requirements.

2. Q: Can the CC-PAOH51 module communicate using the HART protocol?

   A: Yes, it fully supports HART communication, allowing two-way digital communication over the analog signal for device diagnostics and configuration.

3. Q: How many output channels are available on the CC-PAOH51 module?

   A: It provides 16 isolated analog output channels, each independently configurable.

4. Q: Is the module hot-swappable? Can I replace it without shutting down the system?

   A: Yes, the module is designed to be hot-swappable within Honeywell’s C300 controller platform, minimizing downtime during maintenance.

5. Q: What type of isolation does the module provide?

   A: The module offers channel-to-channel isolation of 500 V and channel-to-system isolation of 1500 V, ensuring electrical safety and signal integrity.

6. Q: What kind of accuracy and resolution can I expect?

   A: It delivers a high-resolution 16-bit output with a calibrated accuracy of ±0.35% of full scale at 25°C.

7. Q: What is the maximum load the analog outputs can drive?

   A: Each channel can drive up to 800 ohms resistive load when supplied with 24 VDC.

8. Q: What kind of environmental conditions can the CC-PAOH51 withstand?

   A: It operates reliably in harsh industrial environments, withstanding temperatures from -40°C to +70°C and humidity up to 95% non-condensing.

9. Q: How is the module mounted in the system?

   A: It is typically mounted in Honeywell’s Series C racks or can be DIN rail mounted, offering flexible installation options.

10. Q: Is this module suitable for safety-critical or SIL-rated systems?

    A: While it is designed for high reliability in industrial control systems, its usage in SIL-rated systems should be confirmed with Honeywell’s safety documentation.
