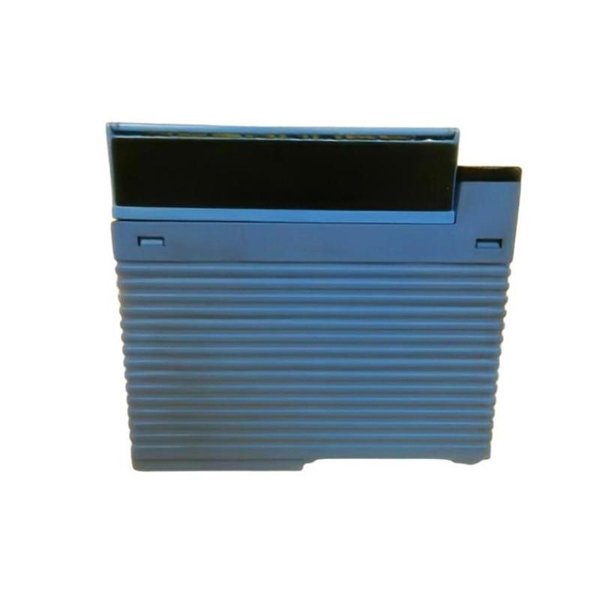

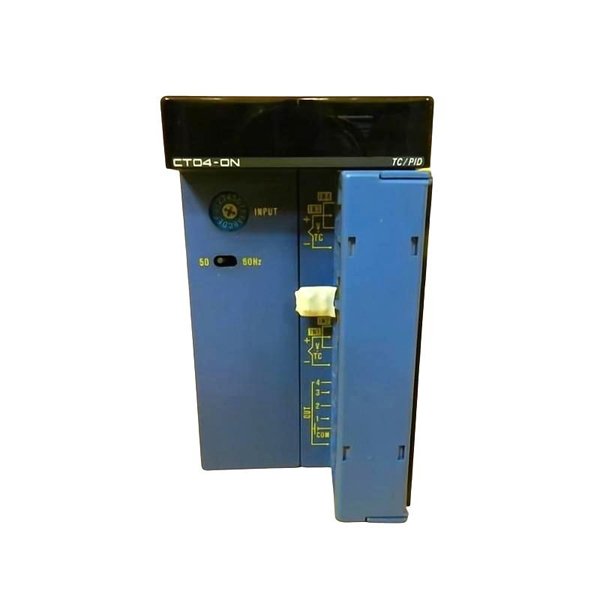

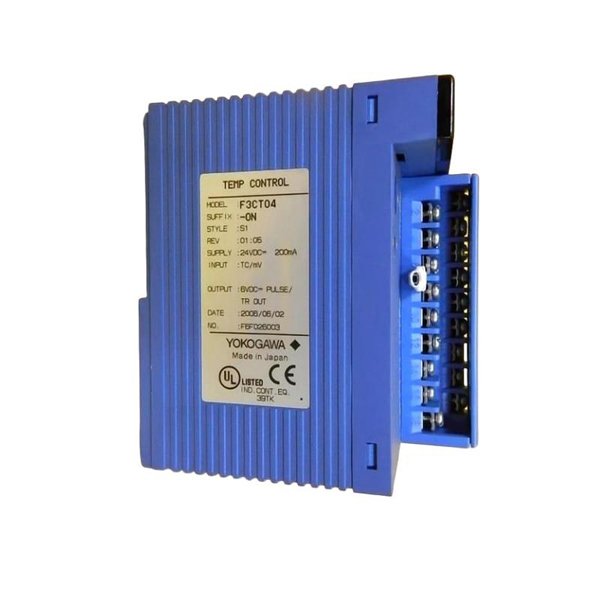

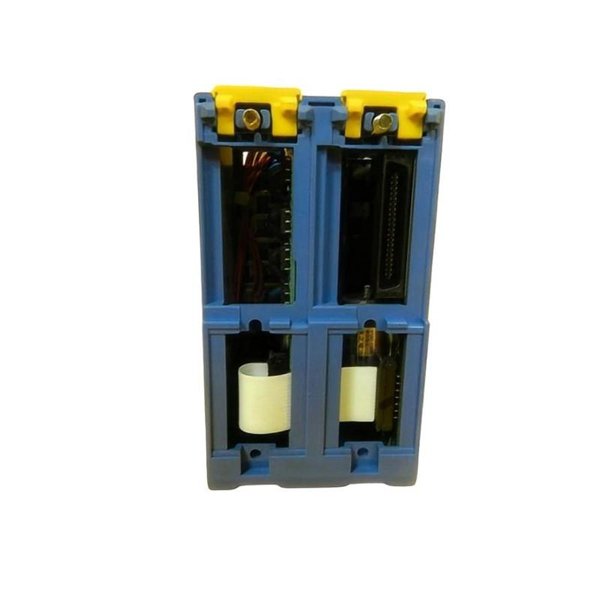

Yokogawa F3CT04-0N Temperature Control/Monitoring Module

The Yokogawa F3CT04-0N Temperature Control/Monitoring Module is designed for accurate temperature measurement, control, and monitoring within industrial automation systems. This module supports a variety of temperature sensors, such as RTDs and thermocouples, making it suitable for diverse applications, including process temperature control and monitoring of equipment in critical environments.

Key Features

• Wide Sensor Compatibility – Supports RTDs, thermocouples, and other temperature sensors.

• Control Modes – Features on/off and proportional control modes for flexible operation.

• High Accuracy – Provides temperature measurement accuracy of ±0.1% of reading.

• Multiple Input Channels – Capable of handling both single and multiple temperature inputs.

• Real-time Monitoring – High-speed processing for real-time temperature control and monitoring.

• Easy Integration – Fully compatible with Yokogawa F3 Series systems.

• Compact Design – Space-efficient with easy DIN rail mounting.

Technical Specifications

Industry Applications

• Industrial Automation – Temperature control and monitoring for automation systems.

• Power Generation – Temperature regulation and control in turbines, reactors, and boilers.

• Oil & Gas – Accurate monitoring and control in drilling and refining operations.

• Chemical & Petrochemical – Temperature monitoring in chemical reactions and processing.

• Food & Beverage – Precision temperature control in food production lines and packaging.

Advantages

• Versatile Control – Supports both on/off and proportional control for different temperature control needs.

• Real-time Monitoring – Provides precise real-time monitoring for temperature stability and operational efficiency.

• Wide Sensor Compatibility – Supports multiple types of temperature sensors for flexibility in various applications.

• Easy Integration – Can be seamlessly integrated into Yokogawa F3 Series systems, enhancing system functionality.

• Durable and Compact – Rugged design with compact dimensions for installation in confined spaces.

Frequently Asked Questions (FAQ)

Q1: What temperature sensors are supported by the F3CT04-0N module?

It supports RTDs and thermocouples for temperature measurement.

Q2: What is the temperature measurement range of the module?

The range is from -200 °C to 1800 °C, depending on the type of sensor used.

Q3: What control modes does the F3CT04-0N module offer?

It supports On/Off and Proportional control modes for temperature regulation.

Q4: How many temperature inputs can the module handle?

The module can handle single or multiple input channels.

Q5: What is the accuracy of the temperature measurements?

The module provides an accuracy of ±0.1% of the reading.

Q6: How is the F3CT04-0N module mounted?

It can be easily mounted on a DIN rail, simplifying installation.

Q7: What is the weight of the module?

The F3CT04-0N weighs approximately 0.5 kg.

Q8: What is the operating temperature range for this module?

The operating temperature range is from 0 °C to 60 °C.

Q9: Can this module be used in food processing applications?

Yes, it is well-suited for use in food & beverage processing where precise temperature control is critical.

Q10: How does the module communicate with other system components?

It uses a system bus for inter-module communication, ensuring smooth integration with other Yokogawa F3 Series modules.
