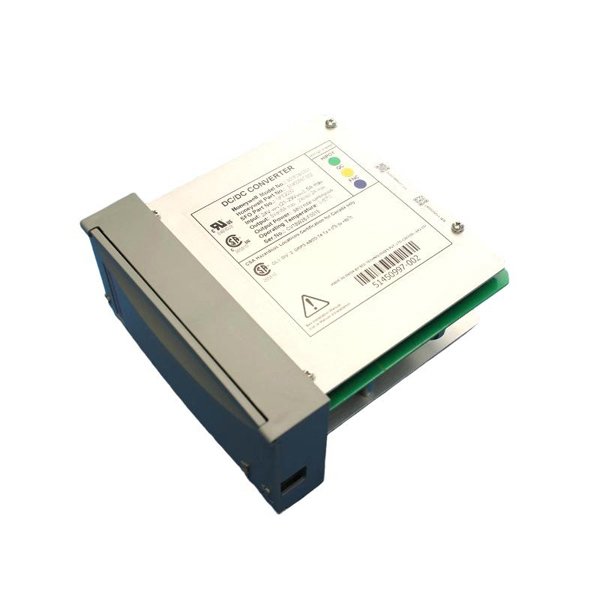

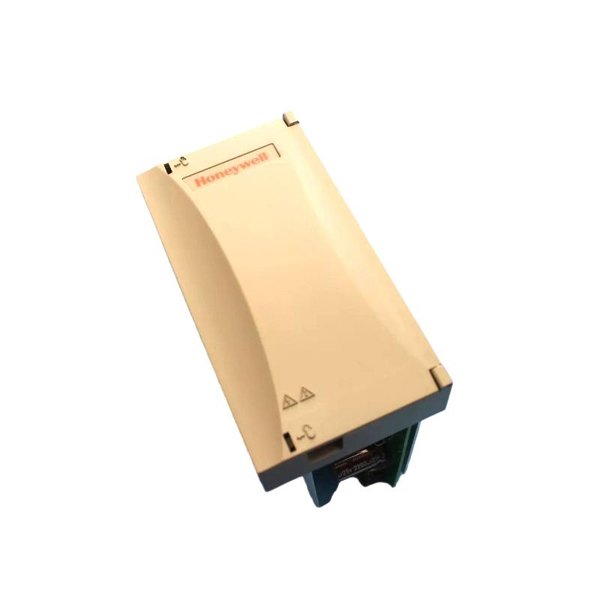

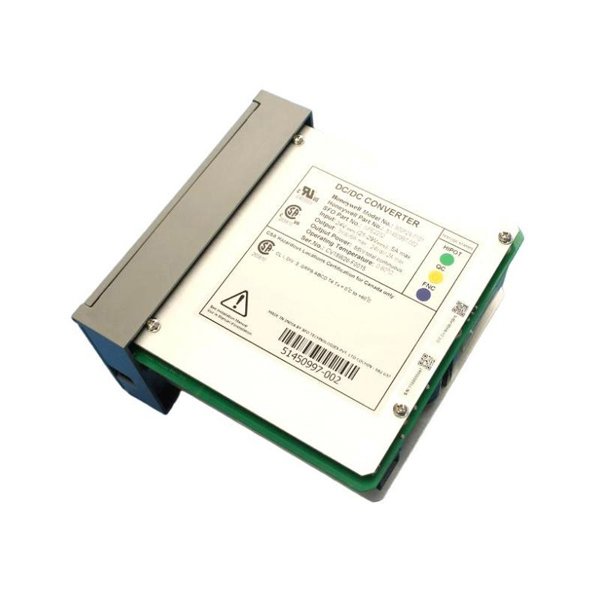

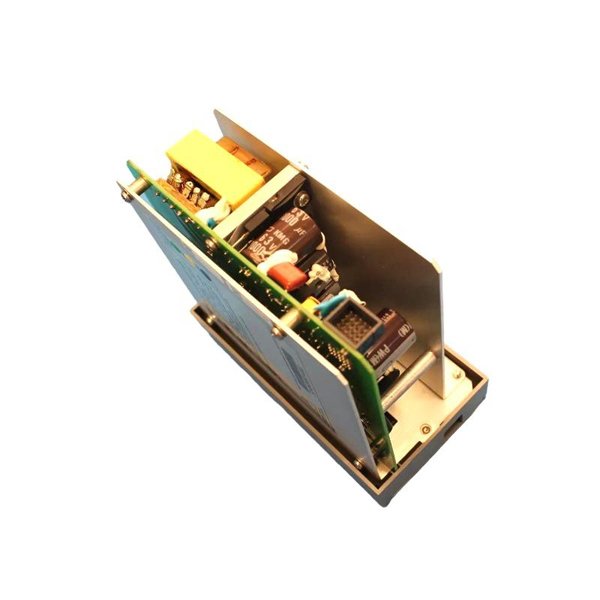

Honeywell 900P24-0101 HC 900 Controller Power Supply Module
Manufacturer:Honeywell
Product Number:900P24-0101
Product Type:Power Supply Module
Origin:USA
Dimensions:137 x 72.6 x 151 mm
Weight:0.65 kg
Views:58
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell 900P24-0101 is a 24VDC power supply module designed for the HC900 Controller platform. It delivers both 5VDC and 24VDC output, providing consistent and regulated power to controllers and I/O modules in industrial automation environments. It ensures reliability, protection, and stability in critical process control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 900P24-0101 |
| Input Voltage | 21–29 VDC |
| Input Power Rating | 72.5 W |
| Output Voltage | 5 VDC and 24 VDC |
| Output Power | 60 W |
| Inrush Current | 30 A for 3 ms @ 29 VDC |
| Fuse | Internal, non-replaceable |
| Termination | Screw terminals, wire gauge #12–22 AWG |
| Dimensions | 137 x 72.6 x 151 mm |
| Weight | 0.65 kg |
| Mounting | DIN rail 35 mm |
| Status Indicator | None |
| Certifications | UL, CE, CSA, ATEX, FM |
| Operating Temp. | 0°C to 60°C |
| Storage Temp. | -40°C to 70°C |
| Humidity | 10–90% RH (non-condensing) |
Applications
-
Power supply for HC900 controllers in industrial automation.
-
Process control in manufacturing, oil & gas, water treatment, and HVAC.
-
Redundant controller rack applications.
Product Advantages
-
Compact DIN rail mounting for space-saving design.
-
Dual voltage output (5VDC and 24VDC) from a single source.
-
Internal fuse protection to safeguard against overcurrent.
-
Tool-secured voltage cover for operator safety.
-
Stable operation under harsh environmental conditions.
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range of the 900P24-0101?
A1: It operates on a 24VDC input voltage, ranging from 21 to 29 VDC.
Q2: What output voltages does it supply?
A2: It provides both 5VDC and 24VDC outputs.
Q3: What is the output power capacity?
A3: The module has a maximum output capacity of 60W.
Q4: Is the internal fuse replaceable?
A4: No, the internal fuse is non-replaceable and sealed.
Q5: Can the power supply be hot-swapped?
A5: No, field power should be disconnected before removal.
Q6: What certifications does this module have?
A6: CE, UL, CSA, ATEX, and FM certifications.
Q7: Is it suitable for redundant systems?
A7: Yes, it can be used in redundant controller racks.
Q8: What type of terminal connection does it use?
A8: Screw-type terminals for #12–22 AWG wires.
Q9: What is the typical inrush current?
A9: 30A for 3 milliseconds at 29VDC.
Q10: Does it have any visual status indicators?
A10: No, it does not include LED indicators.
