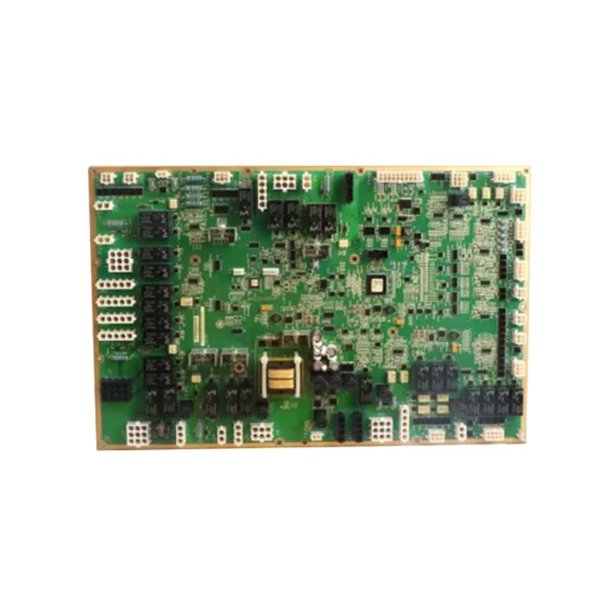

General Electric IS200WETBH1BAA WETB TOP BOX MODULE

The GE IS200WETBH1BAA is a WETB top box module that is used in systems to interface with WETB modules to provide connectivity for various field devices in control systems. The IS200WETBH1BAA is a component densely populated board. The board has copper strips along the edge where most of the board 65+ plugs and connectors are located.

The IS200WETBH1BAA module provides the terminal point for connecting field wiring to the control system. This includes the wiring of sensors, actuators, switches, and other field devices, ultimately achieving integration between the field and the control system.

It can act as a distribution point for electrical signals between the control system and field devices. It helps route electrical signals from input devices to the control system and output signals back to devices such as valves, pumps, and actuators.

The WETB top box module sits on top of a control rack or an area that can manage multiple incoming and outgoing field connections.

Frequently asked questions about the product are as follows:

-What is the main function of the GE IS200WETBH1BAA WETB top box module?

The main function is to act as a field wiring terminal and signal distribution point. It connects field devices such as sensors and actuators to the GE Mark VI/Mark VIe control system.

-How does the IS200WETBH1BAA provide electrical isolation?

The IS200WETBH1BAA uses transformers or optoisolators to provide electrical isolation between the control system and field devices to prevent surges or faults in the field wiring from affecting the control system.

-What applications is the IS200WETBH1BAA commonly used for?

Used in turbine control systems, power plants, industrial automation, and safety systems.
