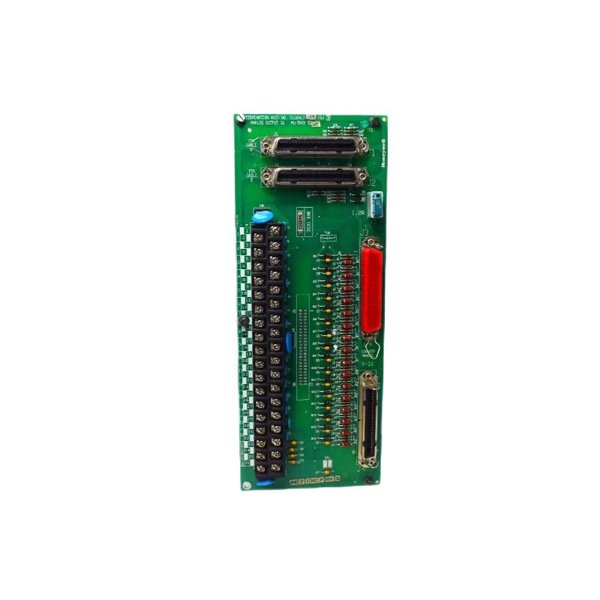

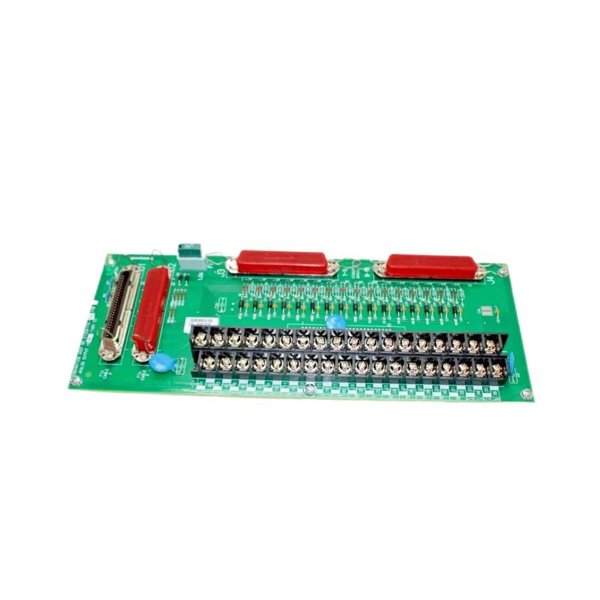

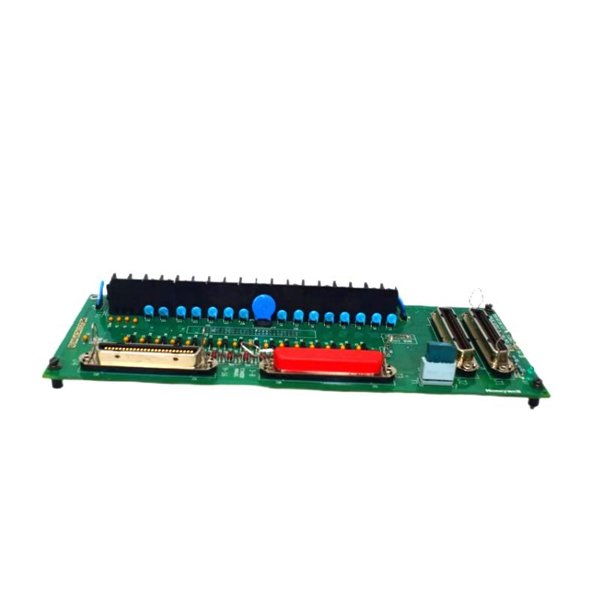

Honeywell MC-TAOY52 51204174-175 Analog Output Module

​The Honeywell MC-TAOY52 51204174-175 Analog Output Module is a high-performance device designed to convert digital signals from a control system into precise analog outputs. This functionality is essential for controlling various analog devices in industrial automation systems.​

Product Specifications

Product Details

The Honeywell MC-TAOY52 51204174-175 Analog Output Module is engineered to meet the demands of industrial automation applications, offering reliable and precise analog signal conversion. It provides four independent output channels, each configurable for a range of -10 V to +10 V or 4 mA to 20 mA, accommodating various control requirements. With 16-bit resolution and an accuracy of ±0.1% full scale, it ensures precise control over connected analog devices. The module’s high update rate of 250 Hz allows for rapid response to control signals, enhancing system performance. Operating on a 24 VDC power supply with low consumption (<5 W), it is suitable for energy-efficient systems. Its IP65 rating ensures reliable operation in industrial environments where protection against dust and water ingress is essential. The compact dimensions (115 mm x 75 mm x 35 mm) and lightweight design (0.4 kg) facilitate easy installation in space-constrained areas.​

Product Applications

• Process Control: Regulates variables such as temperature, pressure, and flow by providing precise analog signals to control devices.​

• Discrete Manufacturing: Controls machinery and equipment by converting digital control signals into analog form.​

• Building Automation: Manages systems like HVAC by sending accurate analog signals to actuators and dampers.​

• Energy Management: Adjusts settings on energy-consuming devices to optimize efficiency based on real-time data.​

• Test and Measurement: Supplies calibrated analog signals to testing instruments for accurate measurements.​

Product Advantages

• High Precision: 16-bit resolution and ±0.1% accuracy ensure exact replication of control signals.​

• Flexible Output Range: Programmable outputs cater to diverse application needs.​

• Rapid Response: 250 Hz update rate facilitates quick adjustments and real-time control.​

• Energy Efficient: Low power consumption minimizes operational costs.​

• Durable Design: IP65 rating protects against environmental factors, ensuring longevity in industrial settings.​

• Compact and Lightweight: Space-saving form factor simplifies integration into existing systems.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the Honeywell MC-TAOY52 module?

   • It converts digital control signals into precise analog outputs to control various industrial devices.​

2. How many output channels does the module have?

   • It offers four independent analog output channels.​

3. What is the programmable output range of each channel?

   • Outputs can be configured between -10 V to +10 V or 4 mA to 20 mA.​

4. What is the resolution and accuracy of the module?

   • It provides 16-bit resolution with an accuracy of ±0.1% full scale.​

5. What is the update rate of the analog outputs?

   • The module updates outputs at a rate of 250 Hz.​

6. What power supply does the module require?

   • It operates on a 24 VDC power supply.​

7. What is the power consumption of the module?

   • It consumes less than 5 W during operation.​

8. What are the operating temperature limits?

   • The module functions within a temperature range of -40°C to +70°C.​

9. What protection rating does the module have?

   • It has an IP65 rating, making it resistant to dust and water ingress.​

10. What are the dimensions and weight of the module?

    • Dimensions are 115 mm x 75 mm x 35 mm, and it weighs 0.4 kg.
