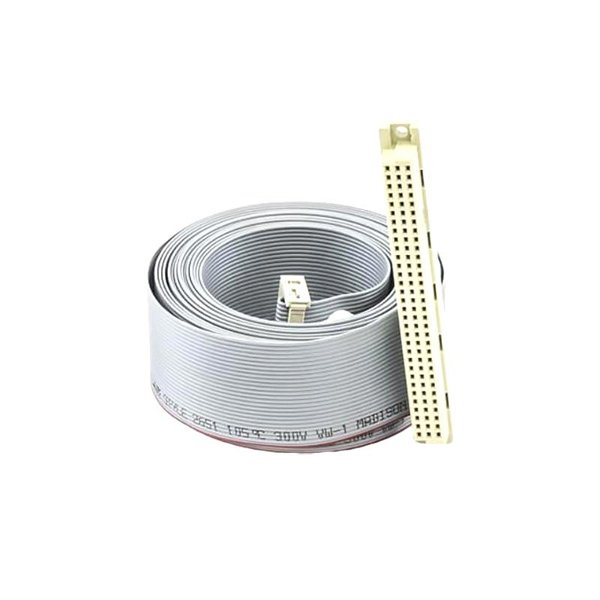

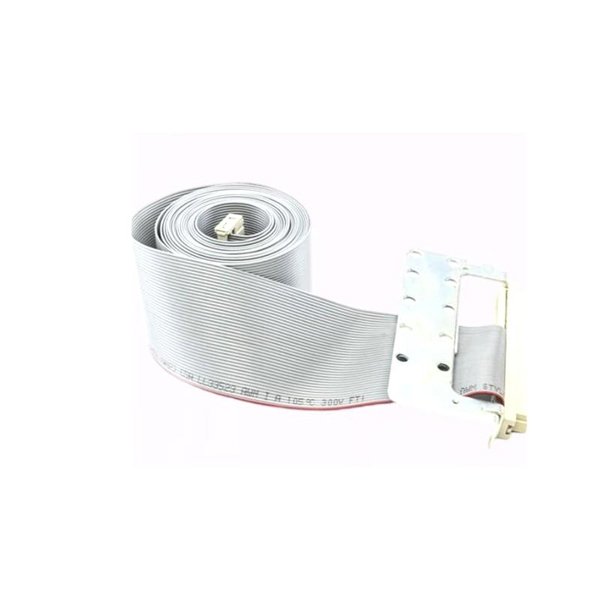

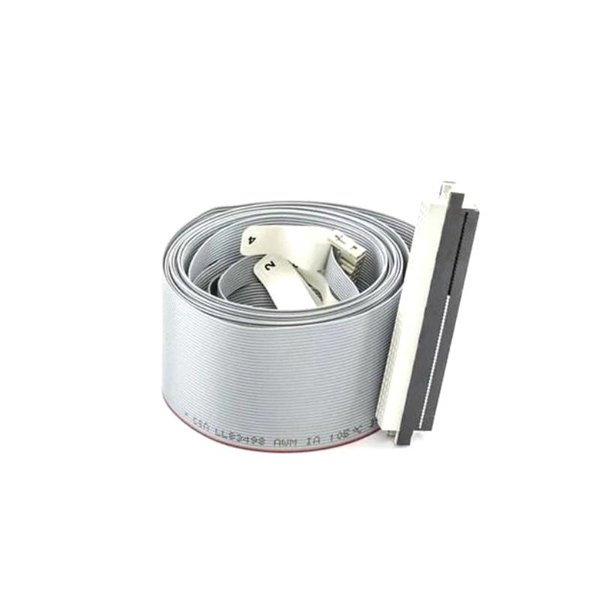

ABB DSTK 153 26390603-G Ribbon Cable

The ABB DSTK 153 26390603-G Ribbon Cable is a high-quality, prefabricated flat cable designed for seamless integration within ABB’s Advant control systems. With a length of 3.0 meters, this ribbon cable ensures reliable signal transmission between modules, making it an essential component in industrial automation setups. Its robust construction and compatibility with ABB systems make it a preferred choice for engineers seeking dependable connectivity solutions.​

Product Specifications

Applications

The DSTK 153 26390603-G Ribbon Cable is primarily used in:​

• ABB Advant Control Systems: Facilitates communication between modules.​

• Industrial Automation: Ensures reliable signal transmission in automated processes.​

• Process Control Systems: Connects various control units for synchronized operations.​

• Manufacturing Plants: Integrates with machinery for efficient control and monitoring.​

Advantages

1. Reliable Performance: Ensures consistent signal transmission with minimal interference.​

2. Durable Construction: Built to withstand industrial environments.​

3. Easy Integration: Designed for seamless compatibility with ABB systems.​

4. Compact Design: Saves space within control cabinets.​

5. RoHS Exemption: Exempted from certain restrictions, allowing broader application.​

6. Prefabricated: Reduces installation time and potential errors.​

7. Versatile Use: Suitable for various industrial applications.​

8. Trusted Brand: Manufactured by ABB, ensuring quality and reliability.​

Frequently Asked Questions (FAQ)

1. What specific ABB systems is the DSTK 153 26390603-G compatible with?

The DSTK 153 ribbon cable is specifically designed for use with ABB Advant Master DCS systems, particularly in applications involving processor modules and remote I/O communication.

2. How many conductors are included in the DSTK 153 ribbon cable?

This ribbon cable contains 64 conductors, making it suitable for parallel signal transmission in high-density industrial control environments.

3. What is the insulation type used in this ribbon cable?

The cable typically uses PVC insulation for flexibility and basic chemical resistance, suitable for standard industrial cabinet environments.

4. Does this cable support hot-swapping of connected modules?

No, the DSTK 153 is not designed for hot-swapping. Power should always be turned off before disconnecting or reconnecting this cable to prevent potential damage.

5. What is the recommended bend radius for the DSTK 153 during installation?

To avoid mechanical stress, the minimum bend radius should be no less than 10 times the cable thickness, which helps preserve conductor integrity over time.

6. Is the DSTK 153 UL or CE certified?

While ABB components are manufactured to high standards, specific certification (UL, CE) may not be stamped on ribbon cables themselves. It’s advisable to check the certification of the complete system or consult ABB directly.

7. How should the cable be routed inside a control cabinet?

It should be routed through internal cable trays or guided ducts, avoiding sharp corners, high-voltage lines, or EMI-heavy zones to ensure clean signal transmission.

8. What type of connector housing is used at both ends of the DSTK 153?

Both ends are terminated with molded plastic IDC (Insulation Displacement Connectors) with a locking clip, ensuring a secure and vibration-resistant fit to ABB modules.

9. Can the DSTK 153 handle temperature variations in harsh environments?

The cable is rated for typical cabinet temperatures ranging from -10°C to +70°C. For applications exceeding these ranges, consider using additional thermal insulation or alternatives.

10. How often should this cable be inspected or replaced in an industrial setting?

Under normal operating conditions, the cable can last several years without issues. However, periodic inspection every 12–18 months is advisable to check for wear, corrosion on connectors, or insulation damage due to environmental factors.
