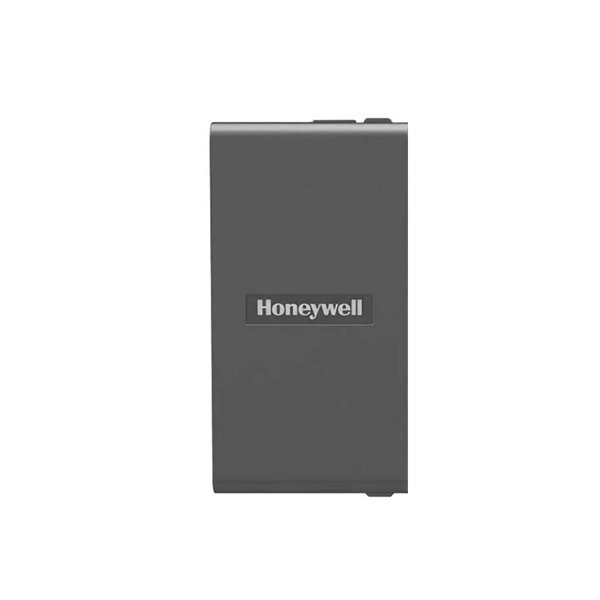

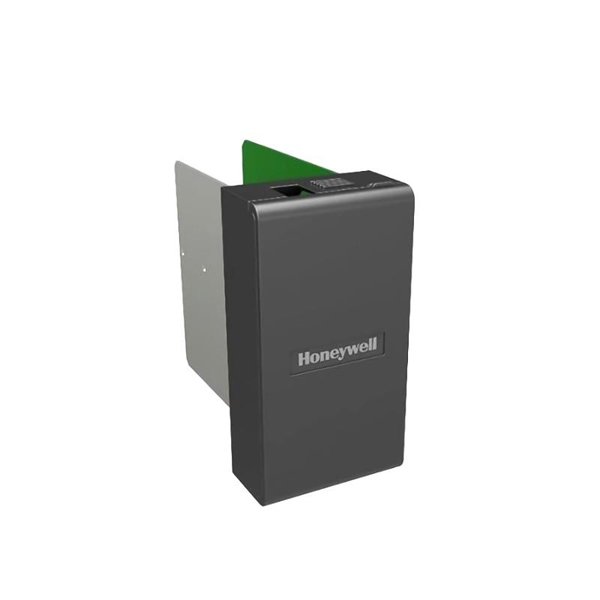

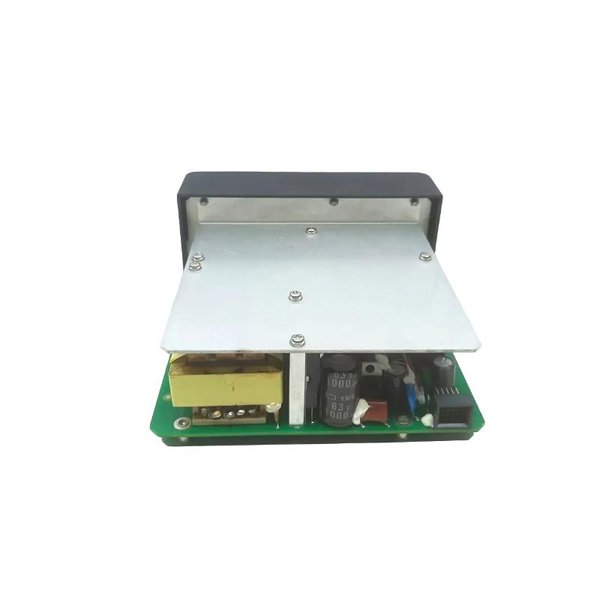

Honeywell 900P01-0301 Power Supply

The Honeywell 900P01-0301 Power Supply Module is a high-performance component within the HC900 Hybrid Controller System, delivering reliable and regulated power to controller CPUs, I/O modules, and communication interfaces. Engineered specifically for demanding industrial environments, this power supply ensures continuous operation and stability for mission-critical applications such as batch processing, thermal control, and safety systems.

The 900P01-0301 model is known for its high output current capacity, enhanced thermal design, and extended environmental tolerances, making it a preferred choice in systems requiring higher I/O loads or redundant power configurations. It supports installation into standard HC900 I/O bases and is fully compatible with other modules in the HC900 platform.

Technical Specifications

Product Applications

• Hybrid Control Systems: Integral part of the HC900 platform, powering CPUs, I/O modules, and network interfaces.

• Safety Instrumented Systems (SIS): Powers SIL2-compliant configurations for critical safety applications.

• Batch and Continuous Process Control: Used in industries such as chemical, pharmaceutical, food and beverage, and paper manufacturing.

• Thermal Control Systems: Ideal for power-critical applications like furnace, boiler, and oven control.

• OEM Integration: Embedded in industrial machines and systems requiring reliable power supply modules.

• Utility & Infrastructure Automation: Applied in water treatment, HVAC, and energy management systems.

Product Advantages

• High Output Capacity: Capable of delivering up to 12 A, allowing more I/O modules and complex configurations.

• Enhanced Durability: Built with robust materials for reliable operation in harsh industrial environments.

• Advanced Protection: Integrated overload, overvoltage, and thermal safeguards to prevent system damage.

• Modular Integration: Seamlessly fits into the HC900 I/O base without requiring system redesign.

• LED Diagnostics: Real-time status indicators reduce troubleshooting time and enhance maintainability.

• Compact Design: Slim profile and lightweight build ensure space-saving installation.

• International Approvals: Meets global safety and performance standards for industrial applications.

• Energy Efficient: High conversion efficiency reduces heat generation and energy waste.

Frequently Asked Questions (FAQ)

1. Q: What is the maximum output current of the 900P01-0301 module?

   A: The module supports up to 12 amps of regulated 5 VDC output, suitable for high-load configurations.

2. Q: Is this power supply compatible with all HC900 bases?

   A: Yes, it is fully compatible with all standard HC900 I/O bases and racks.

3. Q: Can the 900P01-0301 be used in redundant configurations?

   A: Absolutely. It supports redundant power supply setups to ensure uninterrupted power in critical applications.

4. Q: Does this power supply have built-in protection features?

   A: Yes, it includes overload, overvoltage, and thermal shutdown protections.

5. Q: What kind of diagnostics does the module provide?

   A: It has LED indicators showing power OK, overload, and fault status for easier troubleshooting.

6. Q: Can it be installed on a DIN rail?

   A: Yes, the module supports both DIN rail and rack mounting in HC900 chassis systems.

7. Q: What is the operating temperature range?

   A: The unit operates reliably in temperatures from 0°C to 60°C.

8. Q: How much space does the module occupy in the rack?

   A: Its compact size of 137 x 72.6 mm makes it suitable for space-constrained installations.

9. Q: Is it certified for use in international projects?

   A: Yes, it is CE, UL, CSA, and RoHS certified, ensuring broad international applicability.

10. Q: Is fan cooling required?

    A: No, the unit uses passive convection cooling, eliminating moving parts and reducing maintenance.
