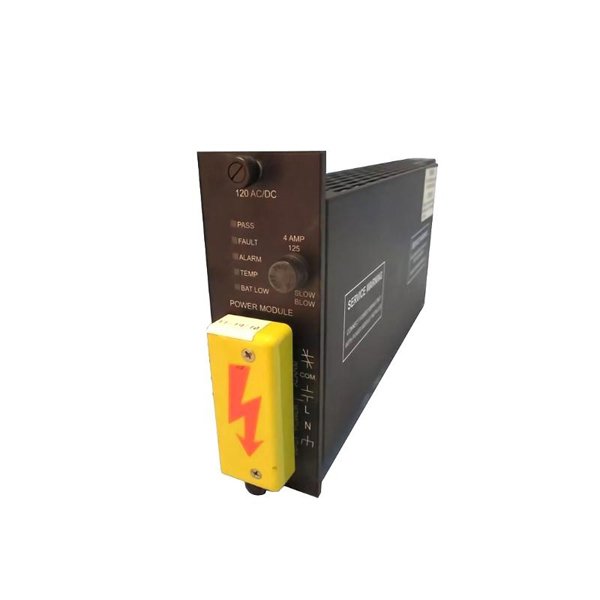

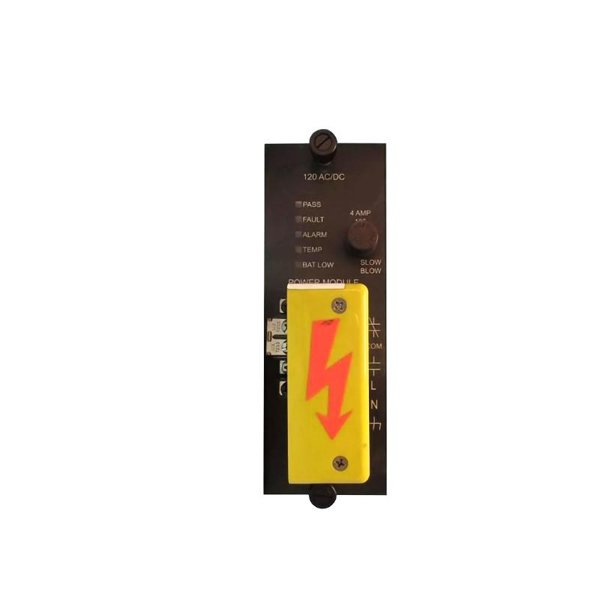

Triconex 8300A Power Supply Module

The Triconex 8300A Power Supply Module is a vital component within the Triconex safety system, providing stable and reliable power to the entire safety instrumentation network. Engineered by Schneider Electric, the 8300A module is designed to ensure uninterrupted power delivery to critical modules such as processors and input/output cards within the Triconex safety platform. This module meets rigorous industrial standards and supports continuous operation even in harsh environments, guaranteeing that safety functions remain active at all times. The 8300A is designed to seamlessly integrate into Triconex chassis, supporting the system’s triple modular redundancy (TMR) architecture for enhanced fault tolerance and system availability.

Product Specifications

Product Applications

The Triconex 8300A Power Supply Module is deployed in many critical sectors, where stable and reliable power supply is essential to maintain safety system integrity:

• Oil & Gas Industry: Powers safety instrumented systems controlling wellhead equipment and emergency shutdown systems.

• Chemical Plants: Ensures continuous operation of safety controllers monitoring hazardous chemical reactions.

• Power Generation: Supports safety systems in nuclear, fossil, and renewable energy plants.

• Pharmaceutical Manufacturing: Provides stable power for process safety and automation.

• Mining Industry: Powers safety logic systems for conveyor belts and processing equipment.

• Transportation Systems: Supplies power for signaling and control safety systems in rail and mass transit networks.

Product Advantages

• Stable Power Delivery: Provides consistent and reliable power to safety modules to maintain continuous operation.

• Wide Input Range: Compatible with a broad voltage input range, making it adaptable to various industrial power supplies.

• Compact Design: Fits neatly within standard Triconex chassis, allowing easy integration without consuming excessive space.

• High Efficiency: Operates at over 85% efficiency, reducing heat output and improving overall system reliability.

• Robust Construction: Designed to perform reliably in industrial environments with temperature and vibration considerations.

• Convection Cooling: Passive cooling method reduces maintenance and increases module longevity.

• Redundancy Support: Can be configured in redundant power supply setups to enhance system availability.

• Safety Certified: Meets SIL 3 requirements, supporting high-integrity safety system designs.

• LED Status Indicators: Visual indicators help quickly verify module operational status.

• Ease of Maintenance: Modular design allows easy replacement without disrupting overall system operation.

Frequently Asked Questions (FAQ)

1. What input voltage does the Triconex 8300A support?

   It supports an input voltage range of 85 to 264 VAC at 47 to 63 Hz.

2. What output voltages are provided by the module?

   The module provides +5 VDC at 10 A and +24 VDC at 2.5 A.

3. Can the 8300A be used in redundant power supply configurations?

   Yes, it is designed to support redundant power setups.

4. What are the physical dimensions of the power supply module?

   Dimensions are 63 x 178 x 394 mm.

5. What is the operating temperature range?

   The module operates reliably between 0°C and +55°C.

6. Does it require forced cooling?

   No, it uses convection cooling, eliminating the need for fans.

7. Is the module compatible with other Triconex chassis?

   Yes, it is designed for compatibility with all standard Triconex chassis.

8. How heavy is the 8300A Power Supply Module?

   It weighs 3.3 kg.

9. Does the module have any LED indicators?

   Yes, it features power and status LEDs for operational monitoring.

10. What certifications does this power supply hold?

    It complies with IEC 61508 SIL 3 and IEC 61511 standards for safety.
