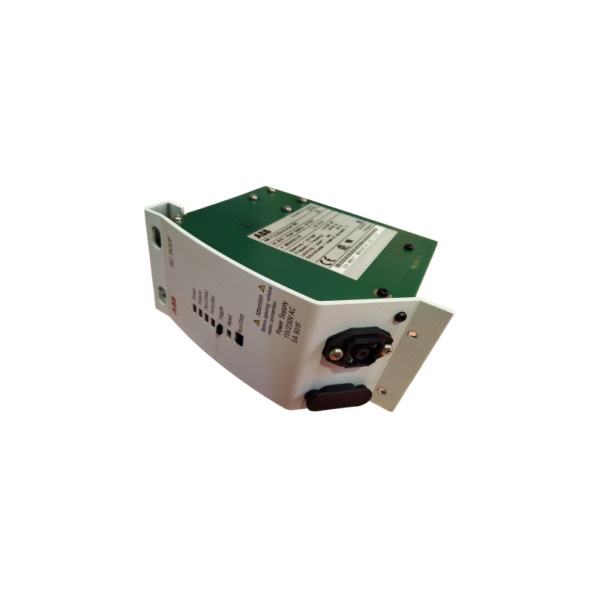

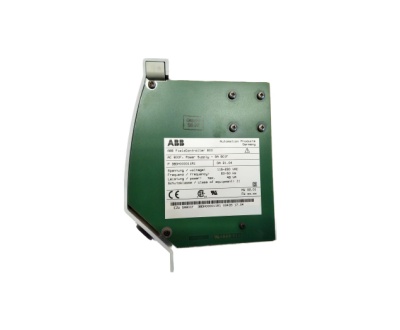

ABB SA 801F 3BDH000011R1 Power supply Modules

Power supply for the FieldController. The module must be mounted in every basic unit and installed in slot P(first slot on the left side of the basic unit). There are two different versions,the SA801F power supply module for 115/230 V AC and the SD 802F power supply module for 24 V DC and redundant power supply,which meets stricter requirements for the availability of the power supply.

For further parameter information and object data,see Parameterization of AC 800 F,page20 and Diagnostic data forobjects,page 28.

Configuration of process station AC 800F in the hardware structure

Within the hardware structure the resources defined in the project tree are allocated to the hard.

ware actually required. The D-PS resource stands for a process station.

The fieldbus-based process station consists of an ABB FieldController 800 (AC 800F). The FieldController takes the fieldbus modules and makes it possible to connect various fieldbusses.The FieldController basic unit consists of the case and the main board, which together form a unit which can be equipped with various modules. The module for the power supply and an Ethernet module for connection to the DiqiNet S system bus are essential. Both modules are available invarious designs. The FieldController can be equipped with a maximum of 4 fieldbus modules selected from CAN. Profibus and serial modules.

The CAN module allows connection of a maximum of 5 I/O units and thus the connection of 45 I/O modules in the same way as they are used in the conventional Freelance 2000 D-PS process station.

Each Profibus module allows the connection of a Profibus line, i.e. the connection of a maximum of 125 slaves. Each of these slaves can also be modular, i.e. contain a maximum of 64 modules.The serial module has 2 interfaces which can be occupied as preferred either with the Modbus master interface protocol, the Modbus slave interface protocol, the telecontrol interface protocol.the Protronic interface protocol or the Sartorius scale interface protocol.
