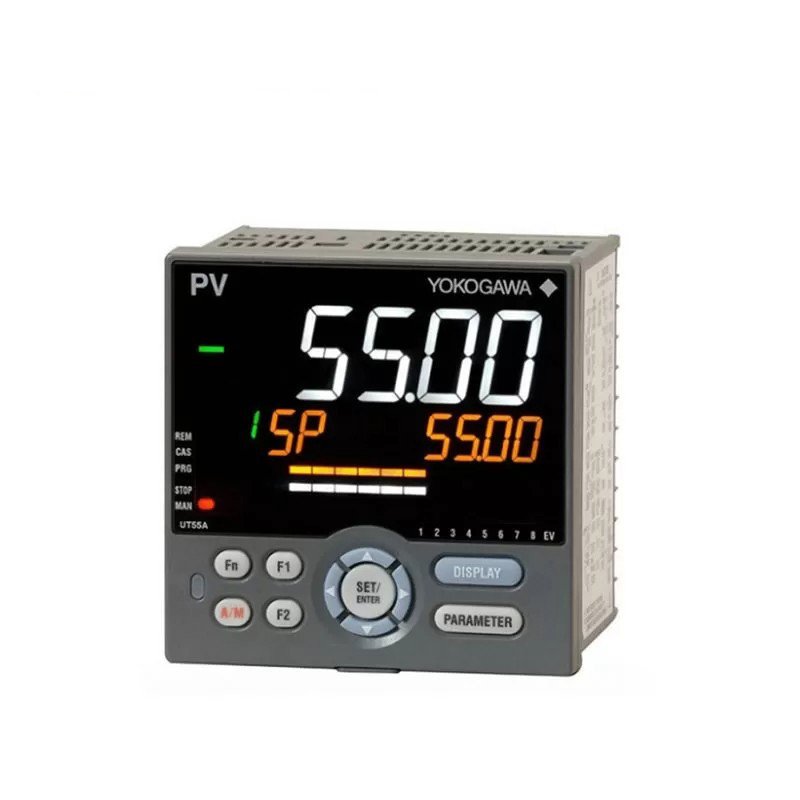

Yokogawa UP55A-011-11-00 Digital Controller

The YOKOGAWA UP55A-011-11-00 is an advanced digital controller. It provides precise process control in various industrial applications. It features a user-friendly interface, flexible I/O options, and advanced control algorithms. This controller is ideal for demanding environments.

Technical Specifications

• Control Mode: PID, On/Off, Manual
• Input Types: Universal inputs, including thermocouple, RTD, voltage, and current
• Number of Inputs: 1
• Output Types: Relay, voltage pulse, current, SSR drive
• Number of Outputs: 2 control outputs, 2 alarm outputs
• Power Supply: 100 to 240 V AC, 50/60 Hz
• Display: Dual 4-digit LED displays
• Communication Protocols: RS-485, Modbus RTU
• Accuracy: ±0.1% of span
• Control Cycle Time: 250 ms
• Dimensions: 96 mm x 96 mm x 100 mm (H x W x D)
• Weight: Approx. 500 g
• Operating Temperature: 0 to 50 °C
• Humidity: 20 to 90% RH (non-condensing)
• Mounting: Panel mount
• Certifications: CE, UL, CSA

Key Features

• High Accuracy: Ensures precise control with an accuracy of ±0.1% of span.
• Versatile Inputs: Supports various input types for broad application compatibility.
• Advanced Control: Offers PID, On/Off, and manual control modes for flexible operation.
• Robust Construction: This controller works reliably in harsh industrial environments.
• Communication: RS-485 and Modbus RTU support easy integration into control systems.
• User-Friendly: Intuitive dual 4-digit LED displays provide clear visibility and ease of use.

Applications

The YOKOGAWA UP55A-011-11-00 suits applications in industries such as:

• Chemical
• Pharmaceutical
• Food and Beverage
• Oil and Gas
• Power Generation
