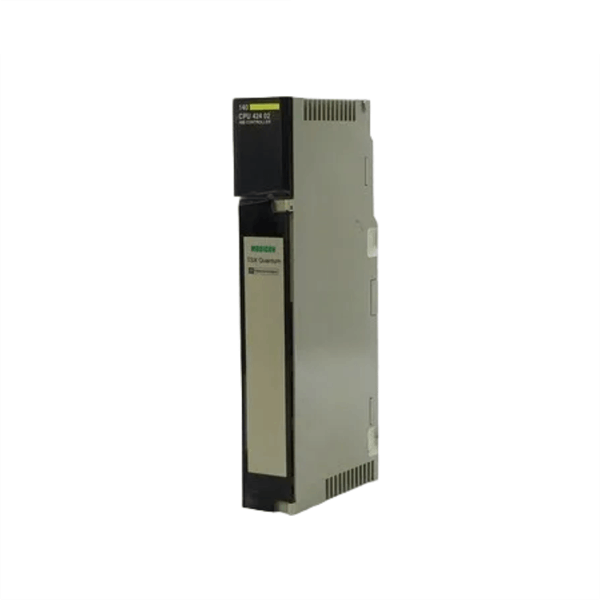

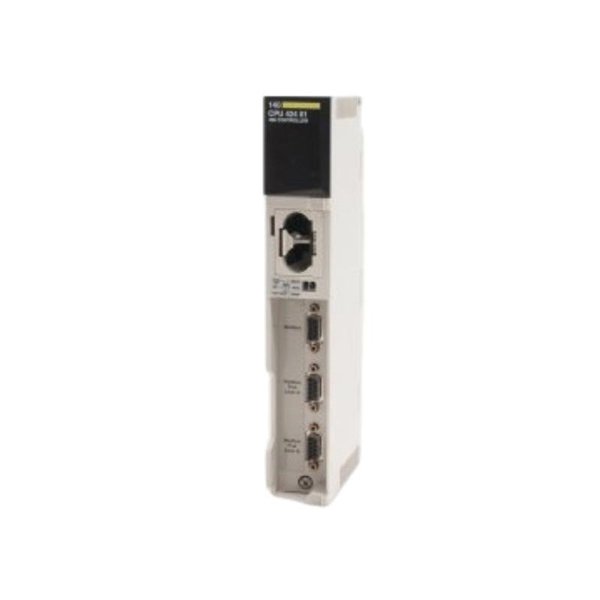

Schneider 140CPU42401C Programmable Logic Controller

The Schneider 140CPU42401C is a modular programmable logic controller (PLC) from Schneider Electric, designed for industrial automation applications that require reliable and high-performance control systems. This product is part of the Modicon family, which is renowned for its adaptability, scalability, and ease of integration into various industrial environments. The 140CPU42401C combines powerful processing capabilities with flexible I/O options, making it suitable for both small and large-scale applications.

This PLC is designed to operate in a wide range of industrial environments, offering a solution for automating complex processes, ensuring efficiency, and improving operational reliability.

Technical Specifications

Applications

The Schneider 140CPU42401C is designed for a wide array of applications in different industries, including:

1. Manufacturing Automation: Controls and automates processes such as production lines, assembly, and packaging systems.

2. Water Treatment Plants: Manages systems for water distribution, filtration, and chemical dosing.

3. Building Automation: Controls heating, ventilation, and air conditioning (HVAC) systems, lighting, and energy management.

4. Energy Distribution: Regulates energy flows in industrial plants, power stations, and substations.

5. Transport and Infrastructure: Used for managing traffic systems, elevators, and other critical infrastructure systems.

The flexibility and modularity of this PLC make it adaptable to various industrial sectors, whether in small systems or large-scale operations.

Advantages

1. Scalability: The modular design allows for easy expansion to meet increasing control and I/O requirements.

2. Reliability: Built to operate in harsh industrial environments with a wide range of temperature and voltage tolerances.

3. Advanced Processing Power: With 1MB of RAM and fast processing speed, this PLC can handle complex automation tasks efficiently.

4. Flexibility in Communication: Supports multiple communication protocols such as RS-232 and RS-485, enabling seamless integration into existing control networks.

5. Ease of Integration: Compatible with Schneider Electric’s extensive range of I/O modules, sensors, and actuators.

6. Compact Size: Space-saving design that fits into standard industrial control panels, reducing installation and maintenance costs.

FAQ (Frequently Asked Questions)

1. Q: What is the voltage range for the Schneider 140CPU42401C PLC?

   A: The 140CPU42401C operates on 24V DC power.

2. Q: Can this PLC be used in extreme temperatures?

   A: Yes, it can operate in temperatures ranging from -20°C to 60°C, making it suitable for a variety of industrial environments.

3. Q: How much memory does the Schneider 140CPU42401C have?

   A: It is equipped with 1MB of RAM, ensuring fast processing and the ability to handle complex automation tasks.

4. Q: What communication ports does the Schneider 140CPU42401C support?

   A: The PLC supports two RS-232 ports and one RS-485 port for communication with other devices.

5. Q: Can the 140CPU42401C be expanded?

   A: Yes, it has a modular design, allowing for the addition of I/O modules and other devices to meet expanding system requirements.

6. Q: What is the weight of the Schneider 140CPU42401C?

   A: The product weighs approximately 0.8 kg.

7. Q: How is the 140CPU42401C mounted?

   A: It is designed to be mounted on a DIN rail for easy installation and integration into control panels.

8. Q: What industries benefit from using the 140CPU42401C PLC?

   A: It is widely used in manufacturing automation, water treatment plants, building automation, energy distribution, and transportation systems.

9. Q: What is the processing speed of this PLC?

   A: The PLC can process instructions at a speed of 100 nanoseconds per instruction.

10. Q: Is the Schneider 140CPU42401C compatible with Schneider Electric’s other PLC models?

    A: Yes, it is fully compatible with other Schneider Electric products, including a wide range of I/O modules, communication interfaces, and software tools.
