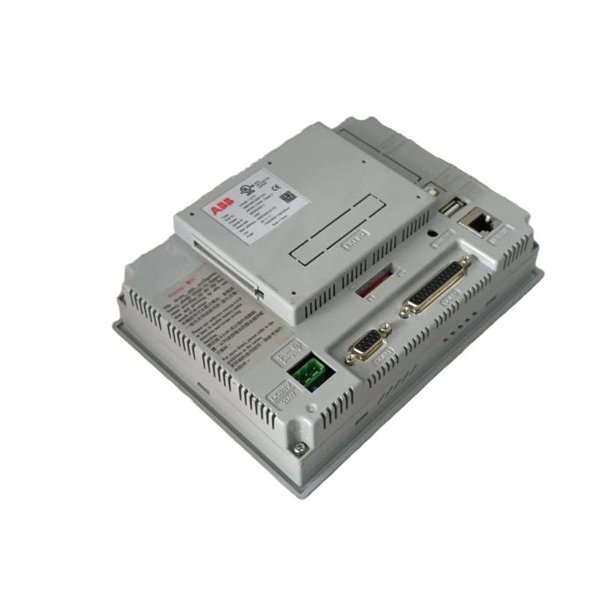

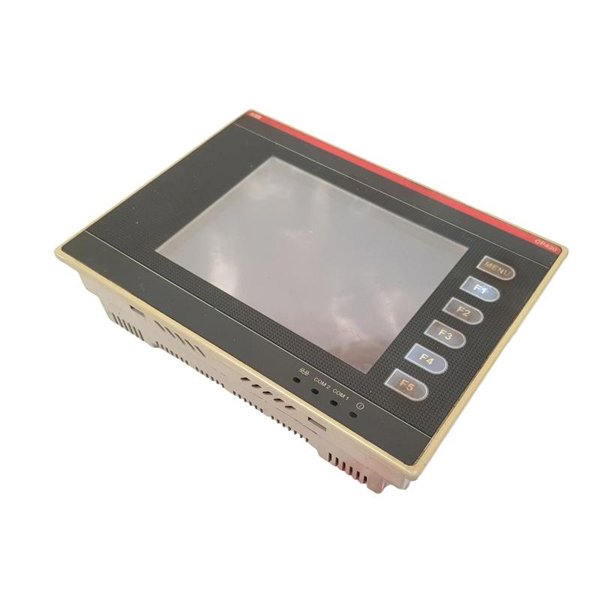

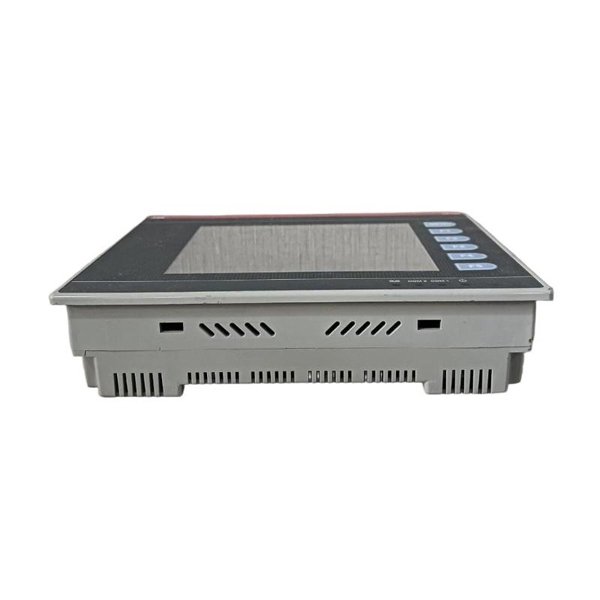

ABB CP430B 1SBP260183R1001 Control Panel

The ABB CP430B 1SBP260183R1001 Control Panel is a sophisticated, user-friendly interface designed for managing and controlling ABB low-voltage AC drives. Part of the well-regarded CP400B series, the CP430B is an ideal tool for operators, maintenance engineers, and commissioning teams, offering a simple yet powerful method of accessing drive functions, monitoring performance, adjusting parameters, and diagnosing faults — all without the need for external software or a PC.

Equipped with a large backlit LCD display capable of displaying 4 lines of clear text, and intuitive soft-touch membrane keys, the CP430B enhances interaction between the operator and the motor control system. With parameter copy and restore capability, multilingual interface, and rugged construction suitable for demanding environments, it delivers high flexibility and reliability.

The CP430B is fully compatible with ABB’s extensive line of AC drives, making it a highly versatile addition to any automation setup.

Product Specifications

Applications

The ABB CP430B Control Panel is suitable for a wide range of industrial, commercial, and OEM environments:

• Water & Wastewater Processing

  Pump speed control, flow management, and valve automation.

• HVAC and Building Automation

  Fans, compressors, and air handling unit control.

• Material Handling & Logistics

  Conveyors, elevators, hoists, and automated transport systems.

• Food & Beverage

  Control of motors for packaging equipment, mixers, and production lines.

• OEM Machine Builders

  Integrated interface for customized machinery and equipment.

• General Industrial Automation

  Commissioning, tuning, and monitoring of motor-driven systems in any industry.

Product Advantages

• Clear and Readable Interface

  Large 4-line LCD with backlight ensures visibility in low-light areas.

• Fast Parameter Handling

  Copy and restore up to five parameter sets for easy commissioning and troubleshooting.

• Extensive Drive Compatibility

  Works with ABB ACS310, ACS355, ACS550, and ACS580 drive families.

• Compact and Durable

  Designed to fit easily on drive faces or control panels; IP54 protection available.

• Real-Time System Monitoring

  View key operating data, alarms, and status information live.

• Multilingual Interface

  Supports international users with a broad selection of languages.

• Certified and Reliable

  Complies with key global certifications (CE, UL, cULus).

• Simple Installation

  Powered via the panel bus, eliminating the need for external power supplies.

• Optimized for Maintenance

  Reduces downtime by enabling quick diagnostics and fault analysis.

• Part of ABB’s Proven Ecosystem

  Fully integrated with ABB’s suite of drives and automation systems.

Frequently Asked Questions (FAQ)

1. Which ABB drives are supported by CP430B?

   It is compatible with ACS310, ACS355, ACS550, and ACS580 drives.

2. How many parameter sets can it store?

   It can store up to five parameter sets for quick copy and restore.

3. Is external power required for this panel?

   No, it is powered by the drive via the panel bus (5 VDC).

4. Can it be mounted remotely?

   Yes, an optional remote panel mounting kit is available.

5. What display does CP430B use?

   A 4-line × 20-character monochrome LCD with backlight.

6. Is it suitable for outdoor use?

   Primarily designed for indoor applications; use additional protection for outdoor environments.

7. What is its protection rating?

   IP54 when panel-mounted, IP20 when handheld.

8. Does it support real-time monitoring?

   Yes, it provides live status, operational data, and alarms.

9. Can multiple languages be used?

   Yes, operators can select from a range of supported languages.

10. Does it comply with international standards?

    Yes, it meets CE, UL, cULus, EN 61800-5-1, and EMC requirements.
