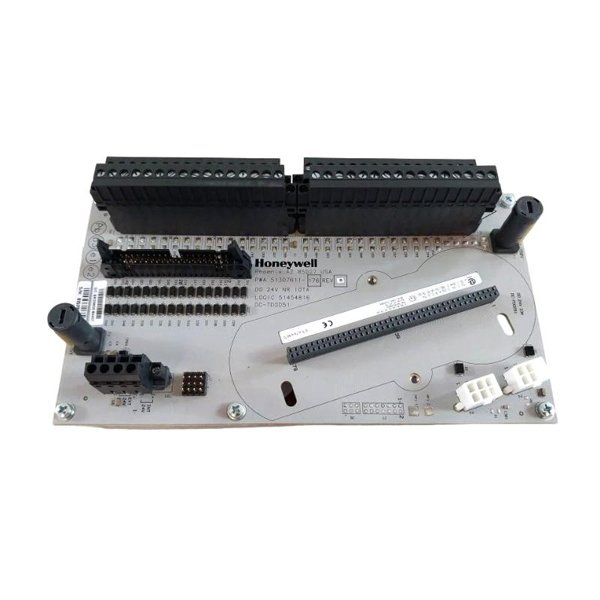

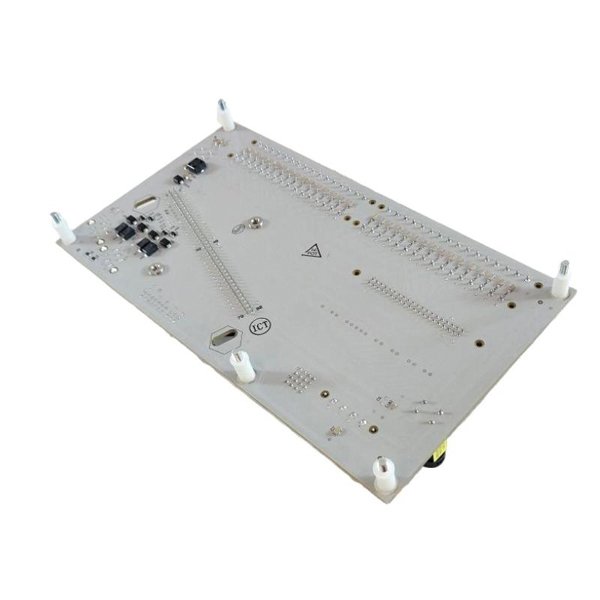

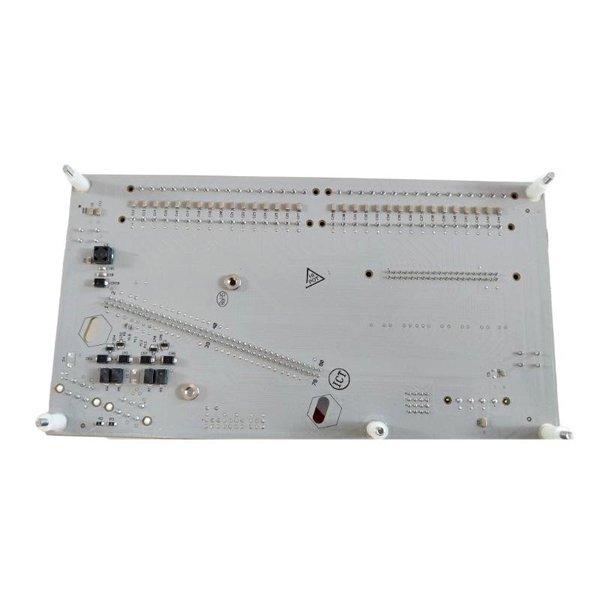

Honeywell DC-TDOD51 51307611-176 Digital Output Module

The Honeywell DC-TDOD51 51307611-176 Digital Output Module is a high-performance, isolated digital output (DO) module, purpose-built for use in Honeywell Experion PKS, C300 Controllers, and Series C I/O environments. It offers 16 channels of isolated, high-reliability digital output for controlling a wide variety of field devices such as motor starters, solenoids, interposing relays, alarm annunciators, lighting circuits, and safety interlocks.

Each of the 16 channels is individually isolated, ensuring maximum protection against electrical transients and cross-talk. The module provides fast switching performance, extensive channel diagnostics, and LED indication to ensure high availability and easy maintenance — all vital in demanding process industries where uptime, reliability, and safety are critical.

Widely deployed across industries such as oil & gas, chemicals, power generation, water treatment, mining, pulp & paper, and life sciences, the DC-TDOD51 enables Honeywell control systems to deliver precise and robust on/off control in even the harshest operating environments.

Product Specifications

Applications

• Digital control of solenoid valves, interposing relays, motor contactors, audible alarms, lighted annunciators

• Activation of safety interlocks and emergency shutdown circuits

• Batch automation in chemical and pharmaceutical industries

• Process and utility equipment control in oil & gas upstream, midstream, refining

• Power plant process control — steam turbines, generators, and auxiliaries

• Water and wastewater treatment facility automation

• Continuous and batch control in food & beverage plants

• Mining and minerals processing equipment control

• Building automation and emergency management systems

• Pulp & paper mills automation and drive control

Product Advantages

• High Isolation: Each output channel is individually isolated to prevent cross-channel interference and protect against voltage spikes

• Fast Switching: < 1 ms switching performance supports time-critical processes

• Advanced Diagnostics: Provides detailed per-channel diagnostics for predictive maintenance and fault detection

• Compact, High Density: 16 isolated outputs in a compact module save space and panel wiring

• Visual Status Indication: LED per channel enables fast visual verification of channel status

• Certified for Harsh Environments: ATEX Zone 2, IECEx certified for hazardous areas

• Flexible Mounting: DIN rail or panel mount supports easy installation and retrofit upgrades

• Supports Redundant Power: Ensures high availability and system reliability

• Designed for Process Industries: Meets stringent environmental, vibration, and EMC requirements for industrial applications

• Fully Supported by Honeywell Lifecycle Programs: Ensures long-term serviceability and upgrade paths

Frequently Asked Questions (FAQ)

1. What is the primary function of the DC-TDOD51 module?

   The DC-TDOD51 provides 16 isolated digital DC outputs for controlling field devices in process automation systems.

2. Which control systems is this module compatible with?

   It is fully compatible with Experion PKS, C300 Controllers, and Series C I/O.

3. How fast does the module switch outputs?

   It offers ON/OFF switching in less than 1 millisecond.

4. What is the isolation type on this module?

   Each channel is individually isolated with additional logic-to-field isolation.

5. What type of field devices can this module control?

   It is suitable for solenoids, relays, contactors, alarms, lighting circuits, and interlocks.

6. What is the output voltage range?

   The module operates between 18–30 VDC, with 24 VDC nominal.

7. What is the current capacity per channel?

   Each channel can continuously supply 0.5 A of current.

8. Does this module support diagnostics?

   Yes — it offers per-channel diagnostics and visual LED status.

9. Is it suitable for hazardous areas?

   Yes — certified for ATEX Zone 2 and IECEx environments.

10. Is redundant power supported?

    Yes — the module supports redundant 24 VDC power supply inputs.
