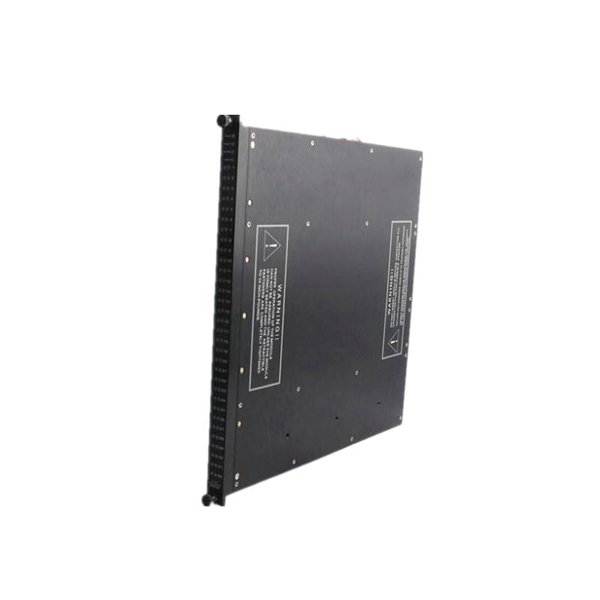

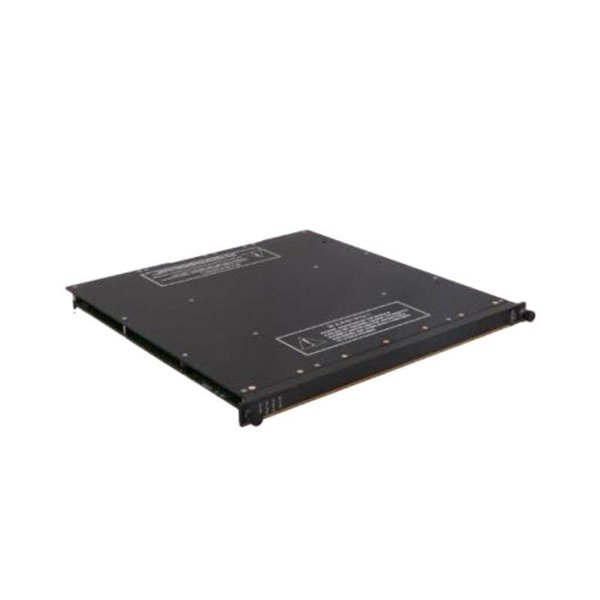

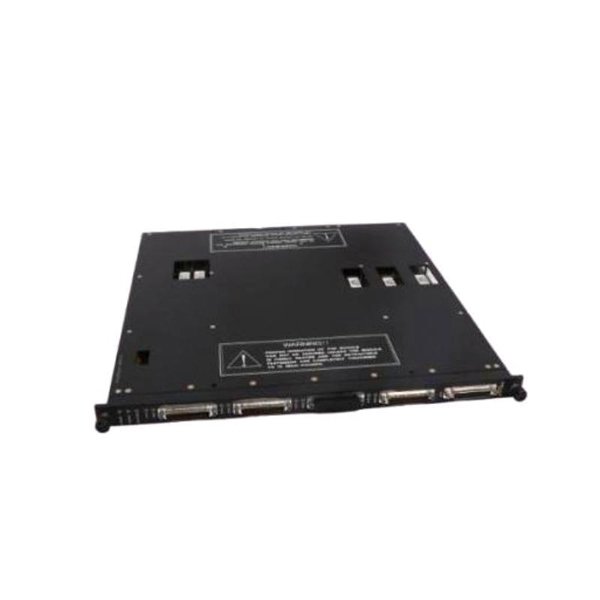

Triconex 3501T Digital Input Module

The Invensys Triconex 3501T is a highly reliable digital input module designed for use in critical safety systems. As part of the Triconex safety system, it is engineered to provide robust monitoring of digital input signals in applications where safety and reliability are paramount. The 3501T module is built for high availability and fault tolerance, ensuring the continuous operation of safety-critical systems in industries such as oil and gas, chemical processing, power generation, and petrochemical.

This module is integral to the Triconex® System—a SIL 3 certified safety instrumented system (SIS) that meets the highest standards for operational safety. The 3501T delivers accurate, fast response times and ensures seamless integration with other Triconex controllers and modules for optimal performance in industrial environments.

Product Specifications

Here are the detailed technical specifications for the Triconex 3501T Digital Input Module:

Product Applications

The Triconex 3501T Digital Input Module is primarily used in safety-critical and automation systems. It is widely employed across various industrial sectors for:

• Safety Instrumented Systems (SIS) – Provides digital input monitoring to ensure safety levels are maintained.
• Process Control Systems – Monitors on/off switches and emergency shutdown systems.
• Oil & Gas – Ensures reliability in hazardous environments where safety cannot be compromised.
• Chemical & Petrochemical Industries – Works in systems requiring strict adherence to safety standards for equipment and personnel protection.
• Power Generation – Provides digital input to monitor various conditions and shutdown sequences in power plants.
• Water & Wastewater Treatment – Ensures reliable control and monitoring of digital inputs for critical systems.
• Manufacturing & Automation – Monitors safety and emergency systems in automated plants.

Product Advantages

1. High Reliability – The 3501T is designed for use in safety-critical systems with SIL 3 certification.
2. Fast Response Time – With a response time of ≤ 10 ms, it ensures quick digital signal processing.
3. Wide Temperature Range – Operational temperature range of -20°C to +60°C, suitable for diverse environments.
4. Flexible Input Configuration – Can handle 16 digital inputs, offering versatile integration options.
5. Compact Design – DIN rail mounted, offering a space-saving solution for control panels.
6. Enhanced Fault Tolerance – Integrated with redundant features for high availability.
7. Seamless Integration – Compatible with other Triconex safety systems and control modules.
8. Low Power Consumption – With only 2W of power consumption, it ensures energy efficiency.
9. Certified Safety Standards – CE, UL, FM certified for safe operation in industrial settings.
10. Durable Construction – Resistant to shock and vibration, making it ideal for harsh industrial conditions.
