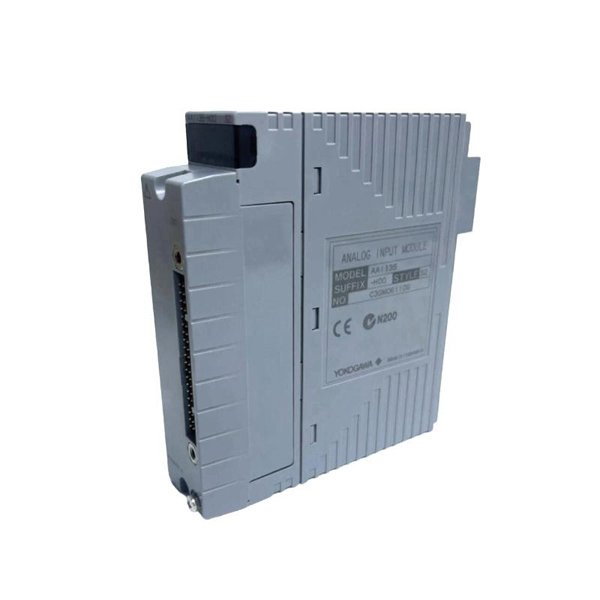

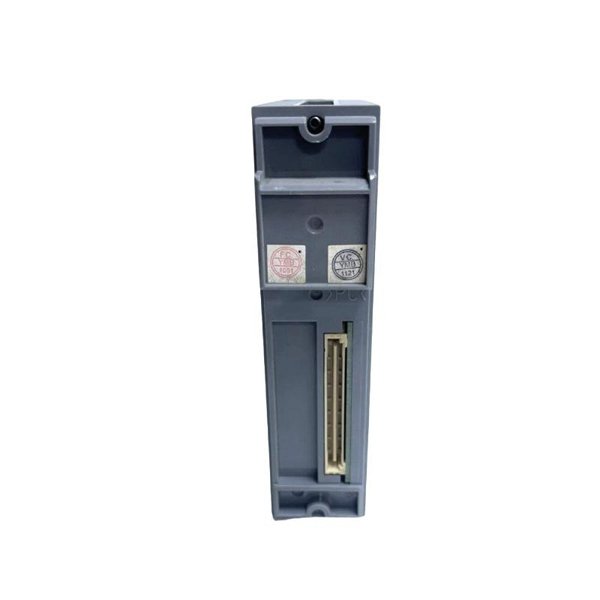

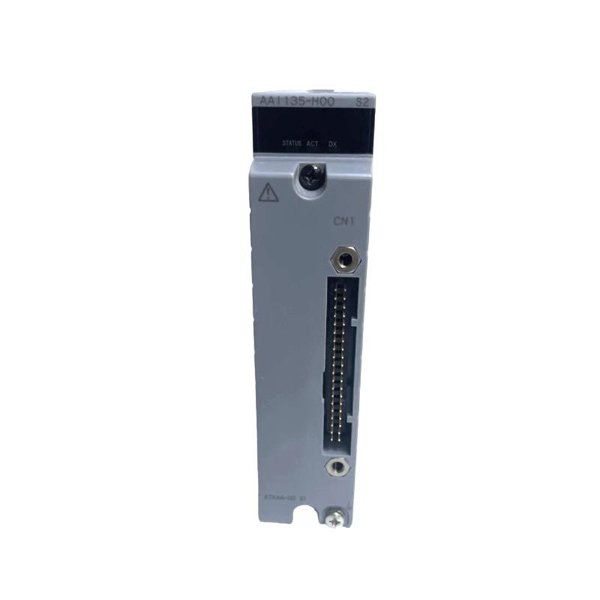

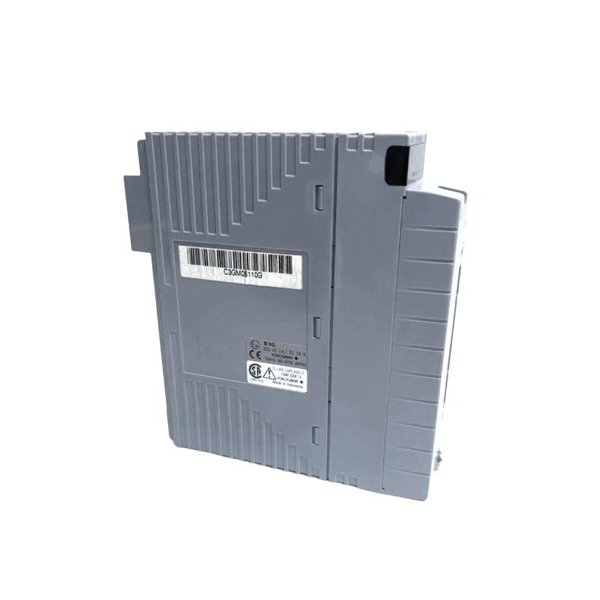

Yokogawa AAI135-H50/K4A00 Analog Input Module

The Yokogawa AAI135-H50/K4A00 Analog Input Module is a high-reliability, 16-channel 4–20 mA analog input module designed for use in Yokogawa’s CENTUM VP and ProSafe-RS systems. Specifically developed for mission-critical process control and safety instrumented systems (SIS), it supports HART communication, enabling dual signal capabilities—analog process values and digital device diagnostics over the same two wires.

This module is certified for SIL2/SIL3 applications under IEC 61508, making it suitable for systems where safety, reliability, and diagnostic capabilities are essential. It provides individual channel-to-channel and channel-to-ground isolation, ensuring signal integrity in electrically noisy or hazardous environments.

Product Specifications

Product Applications

The AAI135-H50/K4A00 is widely adopted in industrial automation environments where safety and reliability are paramount. Typical application areas include:

• Oil & Gas Production Facilities: Monitoring of wellhead transmitters, pressure sensors, and flowmeters.

• Chemical Processing Plants: Acquisition of analog signals for reactor temperature, pressure, and level monitoring.

• Power Generation: Integration with turbines, boilers, and emission monitoring systems.

• Pharmaceutical Manufacturing: High-accuracy data collection in cleanroom and batch processing systems.

• Water and Wastewater Treatment: Supervisory control of flow, level, and chemical dosing systems.

• Pulp and Paper Mills: Signal acquisition for continuous process loops in digesters and bleaching towers.

Product Advantages

• SIL2/SIL3 Certified Safety: Fully certified for functional safety applications under IEC 61508.

• Built-in HART Communication: Allows for easy configuration and remote device monitoring, reducing maintenance time.

• High-Density Configuration: 16 input channels in one module maximize control cabinet efficiency.

• Robust Channel Isolation: Prevents cross-talk and ensures accurate signal interpretation.

• Advanced Fault Diagnostics: Early detection of signal wire faults, overcurrent, and miswiring for increased system resilience.

• Low Power Consumption: Efficient design helps reduce system-wide power demand.

• Seamless DCS Integration: Plug-and-play compatibility with Yokogawa CENTUM VP and ProSafe-RS ensures smooth deployment.

• Long-Term Stability: Factory-calibrated module with excellent long-term drift performance.

FAQ

1. Can each channel on the AAI135-H50/K4A00 be independently configured for different input types?

   No. All channels are fixed for 4–20 mA input; signal conditioning is required for other types.

2. Does the module support HART passthrough for asset management systems?

   Yes. HART communication can be integrated into asset management systems like Yokogawa’s PRM.

3. How does the module detect open circuit conditions?

   It has built-in diagnostic features to detect loop interruptions and will trigger system alerts.

4. What is the minimum update time per channel?

   The sampling cycle is approximately 100 ms per channel under typical system conditions.

5. Is the AAI135-H50/K4A00 suitable for redundant analog input configurations?

   Yes. It supports redundancy when used in appropriate system architectures with redundant bases.

6. Can it operate in hazardous environments with explosive atmospheres?

   Yes, when installed in certified systems, it meets ATEX and CSA requirements for hazardous zones.

7. Is configuration required before system integration?

   Yes. Configuration is done through Yokogawa engineering tools such as SENG.

8. Does it support online parameter change without stopping the module?

   Most parameter changes can be made online depending on system configuration and role.

9. How are channel errors communicated to the control system?

   The module generates diagnostic status flags and alarm codes readable by the control system.

10. Can this module be used outside Yokogawa systems?

    No. It is designed specifically for Yokogawa DCS platforms like CENTUM VP and ProSafe-RS.
