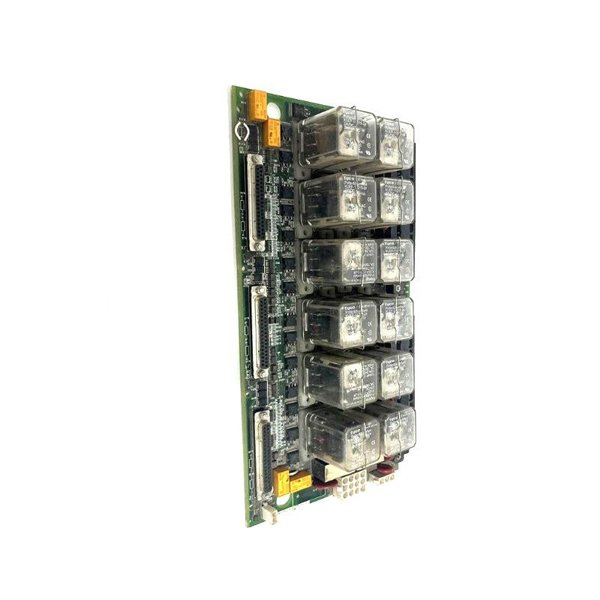

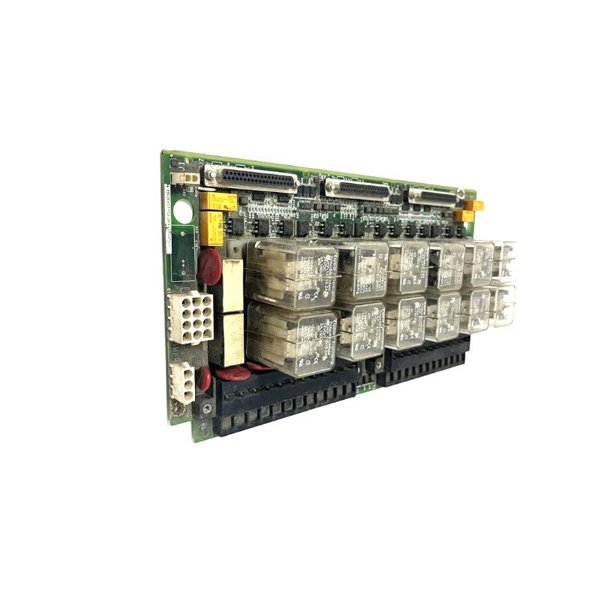

General Electric IS200TREGH1BDB Mark VI Series Turbine Emergency Trip Terminal Board
Manufacturer:GE
Product Number:IS200TREGH1BDB
Product Type:Turbine Emergency Trip Terminal Board
Origin:USA
Dimensions:178 x 330.2 x 43 mm
Weight:0.907 kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS200TREGH1BDB is a Turbine Emergency Trip Terminal Board designed for the Mark VI Series turbine control systems. It is primarily used to interface trip solenoids and emergency stop (ETS) circuits with the turbine control system, ensuring safe and reliable turbine shutdown during critical events.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Emergency Trip Terminal Board |
| Series | Mark VI |
| Board ID | IS200TREGH1BDB |
| Function | Emergency trip relay interface |
| Input Type | Dry contact input (Emergency Trip) |
| Output Type | Relay contact to trip solenoids |
| Mounting | DIN rail or chassis mount |
| Dimensions (mm) | 178 x 330.2 x 43 |
| Weight | 0.907 kg |
| Operating Temp | -30°C to +65°C |
| Compatibility | Mark VI Turbine Control Systems |
| Relay Contacts | Form C (SPDT), electromechanical |
| Power Supply | 28 VDC nominal |
Applications
-
Gas and steam turbine emergency trip systems
-
Shutdown interlock interfaces
-
Industrial turbine protection systems
-
Power plant safety circuits
-
High-integrity trip signal interfacing
Advantages
-
Supports fast and reliable turbine emergency shutdown
-
Integrates seamlessly with GE Mark VI controllers
-
Durable relay contact design for high reliability
-
Compact board layout for efficient panel design
-
Easy field wiring with clearly labeled terminals
FAQ
1. What is the main function of the IS200TREGH1BDB board?
It provides an emergency trip interface for turbine protection by relaying trip signals to the solenoids.
2. Is this board compatible with Mark VI control systems?
Yes, it is specifically designed for integration with GE Mark VI turbine control systems.
3. What types of signals does it handle?
It handles dry contact emergency stop inputs and provides relay outputs to trip solenoids.
4. Can it be used in both gas and steam turbines?
Yes, it is suitable for both gas and steam turbine trip systems.
5. What mounting options are available?
It can be mounted on a DIN rail or directly to a chassis.
6. Does the board support redundant trip configurations?
Yes, it can be configured for redundant or fail-safe trip relay setups.
7. What is the operating temperature range?
It operates from -30°C to +65°C.
8. What is the relay contact type used?
Form C (SPDT), electromechanical relays.
9. Is it field-serviceable?
No, the board is not user-serviceable and should be replaced if faulty.
10. How many trip channels does it support?
It typically supports up to three trip solenoid circuits, depending on system configuration.
