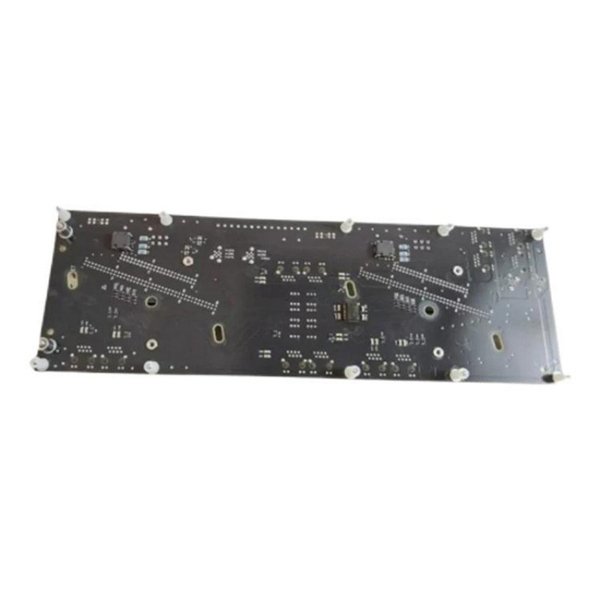

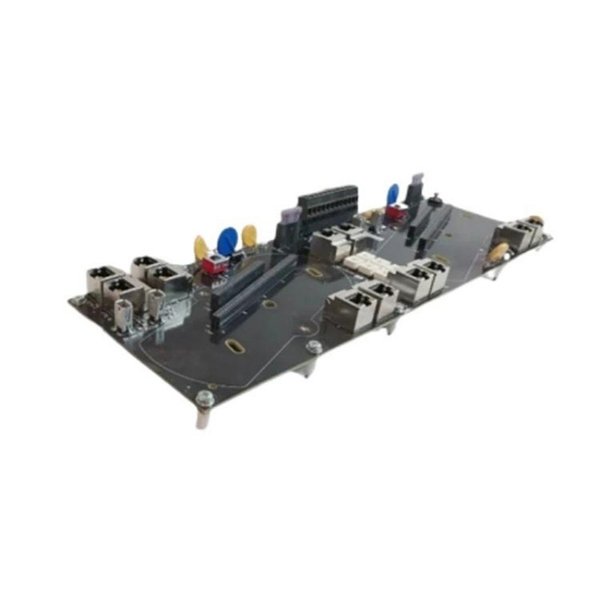

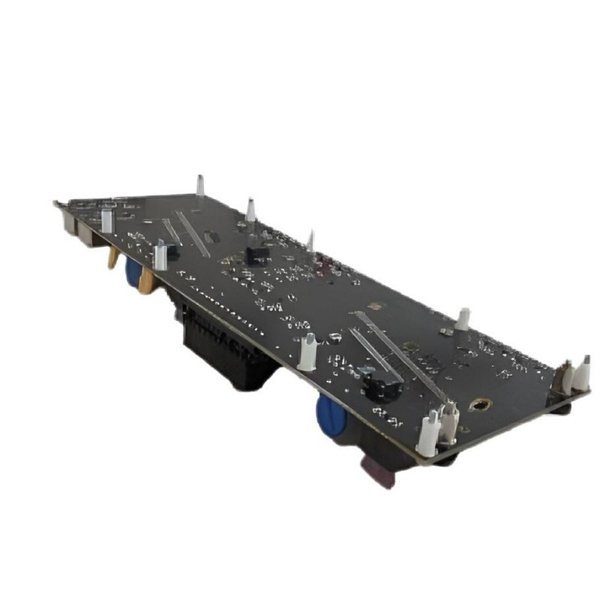

Honeywell FC-TCNT11 51307928-176 SC S300 IOTA Controller Redundancy

The Honeywell FC-TCNT11 51307928-176 is a redundant controller interface module designed for use in the Safety Manager SC S300 IOTA system, part of Honeywell’s high-integrity process safety and critical control platforms. It facilitates redundancy and communication between dual controllers, ensuring that failover and fault-tolerant operations can continue without system interruption or data loss.

Built to support TÜV-certified SIL3 safety applications, the FC-TCNT11 offers seamless controller switchover, real-time diagnostics, and synchronization between primary and secondary controllers. This module plays a pivotal role in functional safety and is vital for systems that cannot tolerate downtime.

Key Features

• Enables controller redundancy in SC S300 IOTA Safety Manager systems

• Ensures automatic switchover between primary and backup controller

• Real-time synchronization of memory, I/O, and logic state

• Fully compliant with IEC 61508 SIL3 safety standards

• Hot-swappable, enabling maintenance without system shutdown

• Advanced diagnostic and health monitoring features

• Designed for high-reliability environments including ESD, F&G, and BMS systems

• Seamless integration with Honeywell Experion PKS and Safety Builder

Technical Specifications

Industry Applications

The FC-TCNT11 redundancy module is an essential part of Honeywell’s functional safety architecture and is widely applied in:

• Oil & Gas – Emergency Shutdown Systems (ESD), pipeline integrity

• Chemical & Petrochemical – Process interlocks, toxic release mitigation

• Power Generation – Boiler protection systems, turbine safety control

• Refineries – Fire & Gas (F&G) systems, high-integrity protection systems

• Pharmaceuticals – GMP-critical process safety controls

• Water Treatment – Redundant supervisory logic in filtration and disinfection units

• Mining & Metals – Conveyor safety, automated shutdown interlocks

Product Advantages

• Zero Downtime Operation: Supports automatic controller switchover without disrupting the process.

• Enhanced System Safety: SIL3 certified and TÜV-approved for high-integrity safety applications.

• Rapid Fault Response: Built-in diagnostics enable quick detection and isolation of controller faults.

• Operational Flexibility: Hot-swappable design reduces maintenance burden in critical environments.

• Integrated Architecture: Works seamlessly with Honeywell’s Safety Manager and Experion PKS platforms.

• Reduced Lifecycle Costs: Reliability and predictive diagnostics help minimize unplanned outages.

• Security and Compliance: Meets international safety, EMC, and hazardous location certifications.

Frequently Asked Questions (FAQ)

1. Q: What is the main purpose of the FC-TCNT11 module?

   A: It enables and manages redundancy between two SC S300 controllers to ensure fail-safe operations.

2. Q: Is this module certified for SIL3 applications?

   A: Yes, it is TÜV-certified and fully compliant with IEC 61508 SIL3 safety standards.

3. Q: Can the module be replaced during operation?

   A: Yes, the FC-TCNT11 is hot-swappable and can be replaced without shutting down the system.

4. Q: How does it detect controller failure?

   A: It uses built-in diagnostics to monitor controller health and automatically triggers switchover if needed.

5. Q: What systems is it compatible with?

   A: It is specifically designed for Honeywell SC S300 IOTA Safety Manager platforms.

6. Q: What kind of communication interface does it use?

   A: It communicates over the internal IOTA backplane.

7. Q: Does the module synchronize memory and logic between CPUs?

   A: Yes, it ensures real-time synchronization for seamless switchover.

8. Q: How is power supplied to the FC-TCNT11?

   A: Power is supplied via the SC S300 IOTA base backplane.

9. Q: Is there LED indication for diagnostics?

   A: Yes, onboard status indicators show health, activity, and fault conditions.

10. Q: What is the typical use case in a system?

    A: It is used in any system where controller failure must not interrupt process operation, such as ESD or BMS systems.
