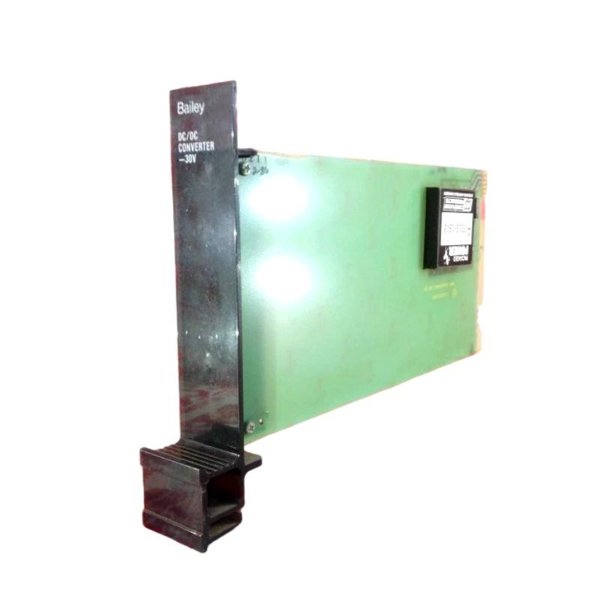

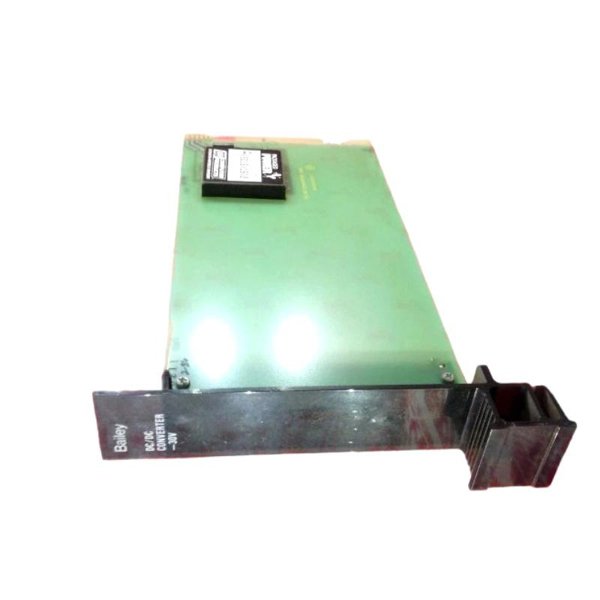

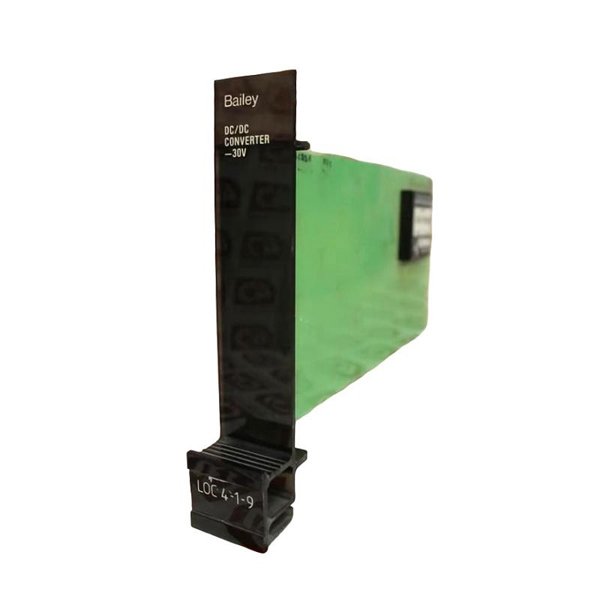

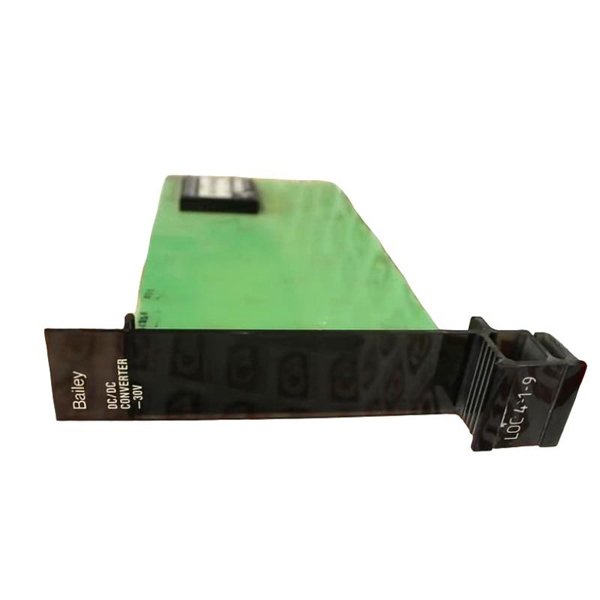

ABB Bailey NSDM01 DC/DC Converter Module

The ABB Bailey NSDM01 is a DC/DC Converter Module engineered for use within the Bailey INFI 90 Distributed Control System (DCS). This module provides reliable and stable power conversion between DC voltage levels, ensuring uninterrupted and clean power supply to various I/O modules and control components within the system.

The NSDM01 supports the stringent requirements of industrial process control environments, where consistent voltage regulation and noise suppression are critical. Its compact design and high efficiency allow for seamless integration into INFI 90 racks, contributing to system stability and long-term operational reliability.

Its rugged construction also enables it to operate effectively in harsh industrial settings, making it an essential element in the power distribution and control infrastructure of many automation plants worldwide.

Product Specifications

Applications

The NSDM01 DC/DC Converter Module is widely used in industrial automation systems requiring stable, noise-free power for sensitive control and I/O modules. Common applications include:

• Power Supply Stabilization for distributed control systems in power plants (thermal, hydro, nuclear)

• Petrochemical and Refinery Automation, ensuring clean power to field I/O modules

• Oil & Gas Processing Plants, supporting control logic hardware

• Water and Wastewater Treatment Facilities requiring reliable DC power conversion

• Manufacturing Automation, including pulp and paper, metals, and chemicals

• Pharmaceutical Production Systems needing consistent power for precise control

Advantages

• Reliable Voltage Conversion: Provides stable 5 V output from a 24 V input, essential for digital and analog I/O modules.

• High Efficiency: Converts power with minimal losses, reducing heat and energy consumption.

• Robust Design: Built to endure industrial environmental stresses, including temperature variations and vibration.

• Compact Size: Fits conveniently within INFI 90 racks, saving valuable cabinet space.

• Built-in Protection: Safeguards against overload, short circuits, and overvoltage to prolong module life and system safety.

• Easy Installation and Maintenance: DIN rail or rack mounting options allow flexible deployment.

• Long-Term Availability: ABB’s legacy support ensures this module remains serviceable for years in existing plants.

Frequently Asked Questions (FAQ)

1. What is the primary function of the NSDM01 module?

   It converts a 24 V DC input voltage to a regulated 5 V DC output to power I/O modules within the INFI 90 system.

2. What is the maximum output current provided by the NSDM01?

   The module can supply up to 3 Amperes on the 5 V output line.

3. Is the NSDM01 compatible with other ABB control systems outside INFI 90?

   It is specifically designed for INFI 90 but may be adaptable to other ABB legacy systems with proper electrical specifications.

4. What protections are built into the NSDM01?

   It includes overvoltage, overload, and short-circuit protection features to prevent damage.

5. What is the typical efficiency of the DC/DC converter?

   The module operates at approximately 85% to 90% efficiency under typical loads.

6. Can the NSDM01 operate in harsh industrial environments?

   Yes, it is rated for operation between 0°C and 60°C with humidity tolerance up to 95% non-condensing.

7. How is the NSDM01 mounted in the control system?

   It can be mounted on a DIN rail or within an INFI 90 rack system.

8. What are the input voltage requirements?

   The input voltage range is typically 18 V to 32 V DC, with 24 V DC nominal.

9. Is there a replacement or upgrade path for the NSDM01?

   ABB supports legacy equipment with direct replacements or compatible upgrade modules depending on system needs.

10. How long is the expected service life of the NSDM01?

    With proper operation and maintenance, it can last 10 to 15 years in typical industrial settings.
