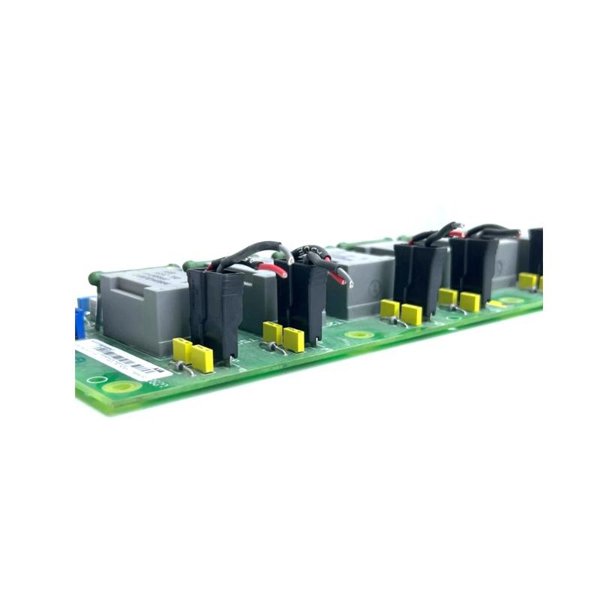

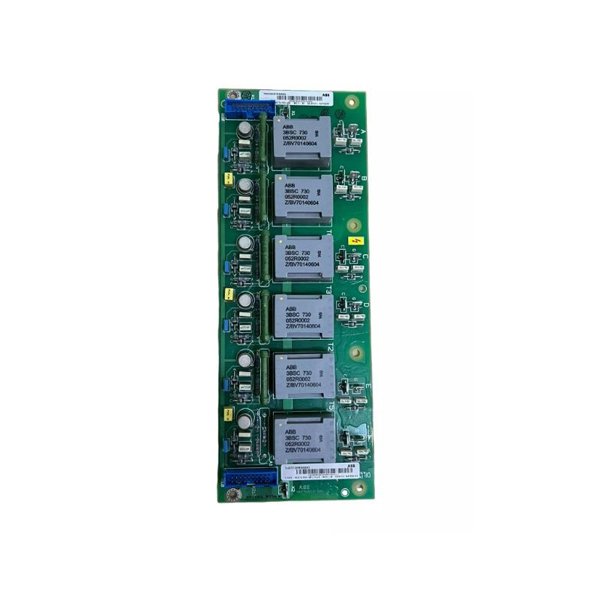

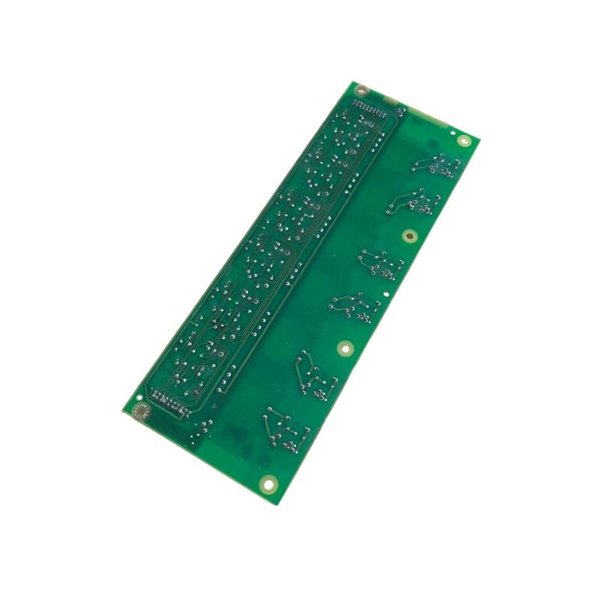

ABB SDCS-PIN-48 3ADT220090R0043 Pulse Transformer Board

The ABB SDCS-PIN-48 (Part No: 3ADT220090R0043) is a dedicated pulse transformer interface board used in ABB’s DC drive systems, particularly within the DCS400 series. It plays a critical role in transmitting galvanically isolated gate pulses from the control unit to power semiconductor devices such as thyristors and IGBTs. Its high-isolation design allows for safe and reliable signal transmission in electrically noisy industrial environments.

By ensuring separation between the low-voltage control circuitry and high-power switching components, the SDCS-PIN-48 enhances operational safety and equipment durability. It is built with robust industrial-grade components and designed to operate in demanding applications, such as steel mills, paper manufacturing, marine drives, and mining machinery, where precision and fault tolerance are non-negotiable.

Product Specifications

Applications

The SDCS-PIN-48 is widely used in DC drive control systems, providing isolated gate pulse signals to power modules. Its performance is particularly crucial in high-load environments that demand reliable and consistent power switching.

Typical applications include:

• Steel and Metal Processing – Drives in rolling mills and metallurgical control systems

• Paper and Pulp Industry – DC drives in paper processing and winders

• Marine and Offshore Systems – Motor control in ship propulsion and hoisting systems

• Cranes and Hoists – Lift and material handling systems requiring smooth operation

• Mining Equipment – Conveyor belt drives, crushers, and winches

• Energy Sector – Power converters in substations and renewable installations

Product Advantages

• High-Fidelity Signal Isolation

  Provides galvanic isolation up to 2.5 kV to prevent signal interference and protect critical circuitry.

• Durable Industrial Construction

  Designed for continuous operation in harsh conditions with vibration, heat, and electrical noise.

• Plug-and-Play Integration

  Easily installed in compatible ABB DCS drive systems with no need for special tools or software.

• Maintenance-Free Operation

  No moving parts or calibration required—minimal downtime and service effort.

• Fault-Tolerant Design

  Reduces the risk of component failure due to voltage spikes or ground loop issues.

• Compact and Modular

  Fits cleanly into ABB system enclosures without requiring extra panel space.

Frequently Asked Questions (FAQ)

1. What does the SDCS-PIN-48 board do?

   It transmits isolated gate firing pulses from the control module to thyristors or IGBTs in a DC drive system.

2. Can the board be used in systems other than DCS400?

   It is optimized for the DCS400 series but may work with other ABB systems that support the same interface.

3. What kind of isolation does it provide?

   It offers galvanic isolation of over 2.5 kV between the control and power sides.

4. Is this board hot-swappable?

   While modular, it is recommended to power down the drive system before replacing it to avoid damage.

5. Does it require firmware or configuration?

   No. It is a hardware-only module and does not require software configuration.

6. What causes this board to fail?

   Excessive voltage, improper handling, or short-circuiting of connected power components may cause faults.

7. What’s the installation process?

   Slide the board into the designated rack slot and secure it using standard ABB retention guides.

8. Does it require periodic maintenance?

   No scheduled maintenance is required under normal operating conditions.

9. What environment is it designed for?

   Industrial control cabinets with proper ventilation and protection against dust/moisture.

10. What voltage is used to power the board?

    Typically 24 VDC from the drive’s control system.
