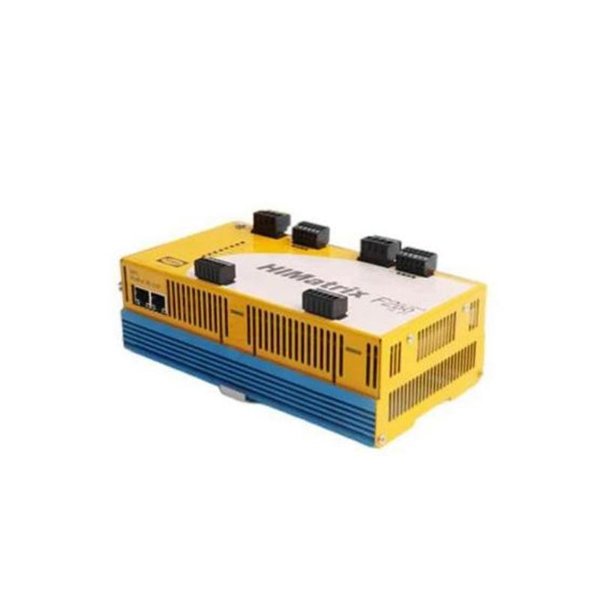

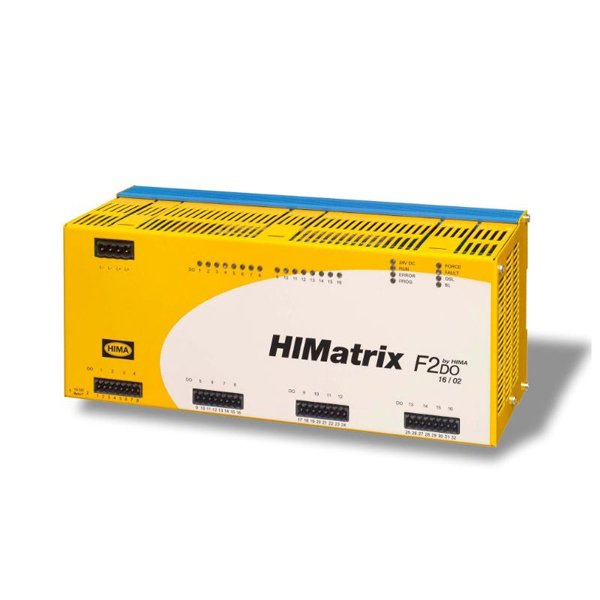

Hima F2 DO 16 02 Remote I/O Module

The HIMA F2 DO 16 02 is a highly reliable Remote I/O Module designed for use in safety-critical systems, particularly in Safety Instrumented Systems (SIS). As part of the HIMA F2 series, the F2 DO 16 02 module provides 16 digital outputs for controlling safety functions in environments where system integrity is crucial. It is used extensively in industries like oil and gas, chemical processing, and power generation, where safety is paramount, and any failure could lead to serious consequences.

This module integrates seamlessly into HIMA’s SIL-rated systems, offering high fault tolerance and redundant architecture to ensure that safety functions remain operational even in the event of component failures. The F2 DO 16 02 can control and monitor multiple devices simultaneously, and with its ability to interface with a variety of input and output devices, it provides flexibility for a wide range of industrial applications.

Product Specifications

Applications

The HIMA F2 DO 16 02 module is designed for use in safety-critical applications where reliability and fault tolerance are key. Some key applications include:

1. Safety Instrumented Systems (SIS)

   The F2 DO 16 02 module is commonly used in Safety Instrumented Systems for monitoring and controlling critical safety functions.

2. Emergency Shutdown Systems (ESD)

   It is essential for triggering emergency shutdown processes in hazardous environments, ensuring the safety of personnel and assets.

3. Process Automation in Oil & Gas

   The F2 DO 16 02 controls safety-related equipment, such as valves and pumps, in the oil and gas sector.

4. Chemical and Petrochemical Plants

   Used in chemical plants to control digital outputs that interact with safety devices like pressure relief valves and gas detectors.

5. Power Generation

   In power plants, the module ensures that emergency shutdowns and other safety functions are performed reliably and efficiently.

Advantages

1. High Safety Integrity (SIL 3 Certified)

   The F2 DO 16 02 module is certified to SIL 3, ensuring it meets the highest safety standards for critical systems, reducing the risk of failure in hazardous environments.

2. Compact and Robust Design

   Designed for both space-constrained and harsh industrial environments, the F2 DO 16 02 is compact yet robust, able to withstand challenging operational conditions.

3. Flexibility and Scalability

   The module supports Profibus, Modbus, HART, and Ethernet communication protocols, ensuring easy integration into existing control systems while providing flexibility for future upgrades.

4. Fast and Reliable Operation

   With 16 digital relay outputs, the module offers high-speed, reliable switching, essential for safety-related functions in industrial environments.

5. Seamless Integration

   The module easily integrates with other HIMA products, such as F2 CPUs and F2 I/O Modules, creating a unified, highly reliable safety system that can be easily scaled and expanded.

6. High Fault Tolerance

   Featuring redundant design and self-diagnosing capabilities, the module offers high fault tolerance, ensuring that system failure does not compromise safety functions.
