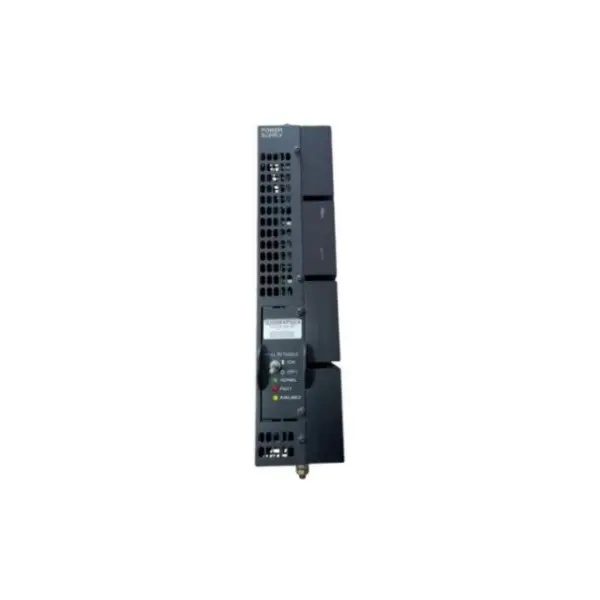

GE IS2020RKPSG3A VME Rack Power Supply Module

GE IS2020RKPSG3A VME Rack Power Supply Module is 400W. The input voltage is rated at 125 Vdc. The module has one status ID output, one remote +28V PSA output, and five additional +28V PSA outputs. The module is designed to fit into the right side VME control and interface rack. The VMErack power supply is mounted on the side of the VME control and interface module. It provides +5, ±12, ±15, and ±28V DC to the VME backplane and provides an optional 335V DC output for powering flame detectors connected to the TRPG. There are two power supply input voltage options, one is a 125 V input supply, which is supplied by the power distribution module (PDM), and the other is a low voltage version for 24V DC operation.

Frequently asked questions about the product are as follows:

-What is the main function of IS2020RKPSG3A?

Provides stable power supply and supports the normal operation of other modules in the rack.

-Does the module support redundant configuration?

In some critical applications, redundant power supply modules can be configured to improve system reliability.

-Which Mark VI series product group does the IS2020RKPSG3A device belong to?

It belongs to the third group of GE's Mark VI series products.
