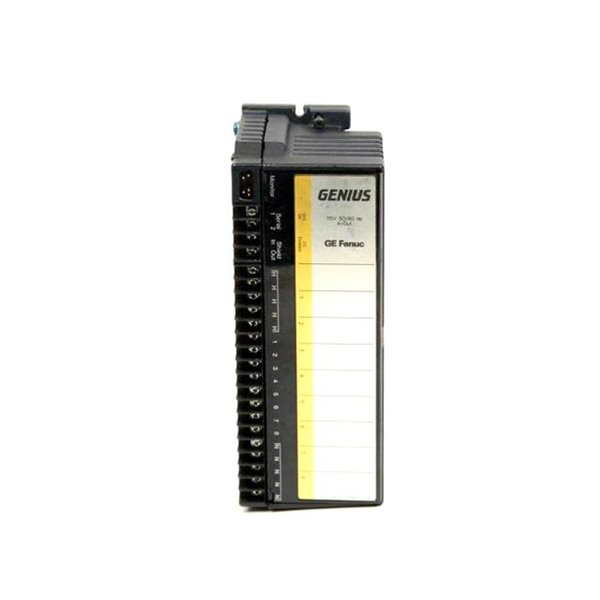

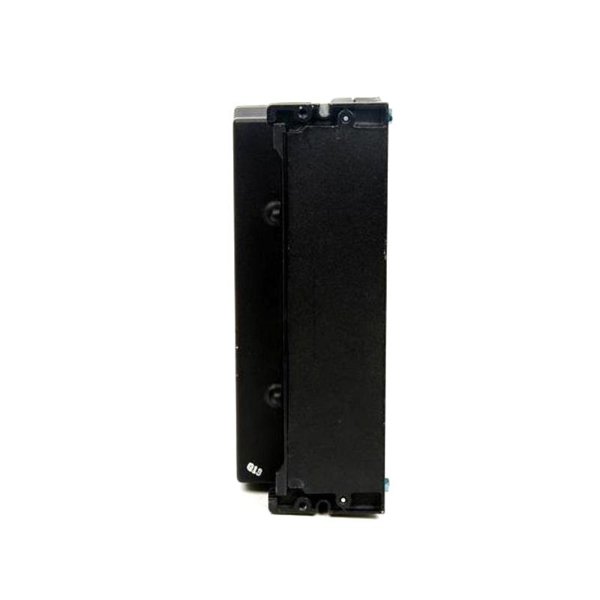

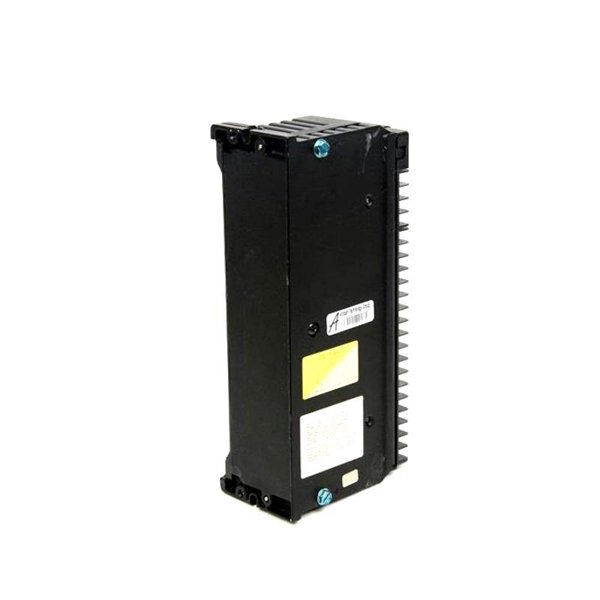

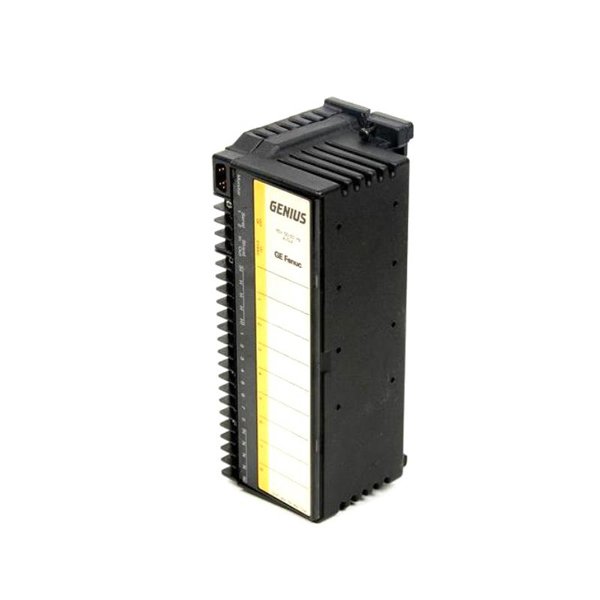

General Electric IC660BBD100 I/O Module

The GE IC660BBD100 is a high-performance I/O module designed for use with GE Fanuc’s 90-30 programmable logic controller (PLC) systems. This module provides reliable and efficient input/output connections to control various industrial processes, allowing the PLC to interface with external field devices such as sensors, actuators, and switches. It is engineered for demanding environments that require robust communication, fast data transmission, and high accuracy in input and output operations.

With the GE IC660BBD100, users can expand the capabilities of their control systems, enhance process monitoring, and improve system reliability by integrating a wide range of field devices. Its modular design allows for easy installation and integration into existing PLC systems, making it ideal for applications in industries such as manufacturing, energy, automation, and more.

Product Specifications

Product Applications

The GE IC660BBD100 I/O Module is primarily used in industrial automation systems where high-speed and accurate control of field devices is essential. Common applications include:

• Manufacturing Automation: To control production lines, machinery, and robotics.

• Process Control: For monitoring and controlling parameters such as temperature, pressure, and flow rates.

• Energy Management: Used in power generation and distribution systems for real-time monitoring and control.

• Machine Control: In CNC machines, conveyor belts, and other machinery for precise control of inputs and outputs.

• Building Automation: For controlling lighting, HVAC systems, and security systems in commercial buildings.

• Material Handling: To control material movement and processing in industries such as automotive and food manufacturing.

Advantages of the GE IC660BBD100 I/O Module

1. High Reliability: The module is designed to operate in harsh industrial environments, providing long-term stability and reduced maintenance costs.

2. Flexible Integration: Easily integrates with various GE Fanuc PLC systems, offering a flexible solution for expanding input/output capabilities.

3. Wide Temperature Range: With an operating temperature range from -25°C to 70°C, it performs reliably even in extreme conditions.

4. Fast Data Processing: Supports fast and efficient data transmission between the field devices and the PLC, ensuring real-time process control.

5. Durability: The module is built to withstand vibrations, shocks, and other challenging industrial conditions.

6. Cost-Effective: By combining multiple inputs and outputs into one module, it helps reduce the overall system cost without compromising performance.

7. Modular Design: The module can be easily swapped or expanded, providing the flexibility to adapt to changing system requirements.

8. Versatility: Supports both sinking and sourcing input configurations, making it compatible with a wide variety of sensors and actuators.

FAQ

1. What is the operating voltage range of the GE IC660BBD100 I/O Module?

   • The operating voltage range is 24 VDC.

2. How many digital input channels does the GE IC660BBD100 have?

   • The module has 16 digital input channels.

3. Can the GE IC660BBD100 I/O module be used with any GE Fanuc PLC?

   • Yes, it is compatible with the GE Fanuc 90-30 PLC systems.

4. What types of digital outputs are supported by this module?

   • The module supports both relay and triac output types.

5. What is the temperature range for operation?

   • The operating temperature range is -25°C to 70°C.

6. What is the weight of the GE IC660BBD100 I/O Module?

   • The module weighs 1.59 kg.

7. What communication protocols are supported by the GE IC660BBD100 I/O Module?

   • It supports Modbus RTU and GE Fanuc protocols.

8. What are the dimensions of the GE IC660BBD100 I/O Module?

   • The dimensions are 2.5″ x 7.5″ x 4.0″ (63.5mm x 190.5mm x 101.6mm).

9. What types of input configurations can be used with the GE IC660BBD100 I/O Module?

   • It supports both sinking and sourcing input configurations.

10. What industries can benefit from using the GE IC660BBD100 I/O Module?

    • It is ideal for industries such as manufacturing, energy, process control, machine control, building automation, and material handling.
