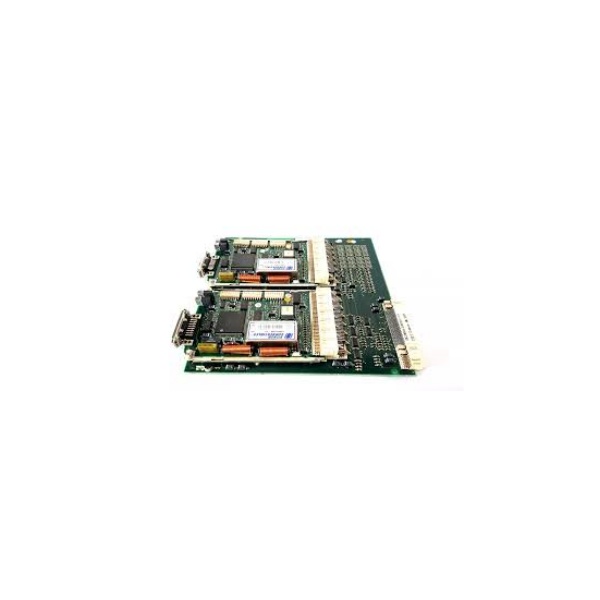

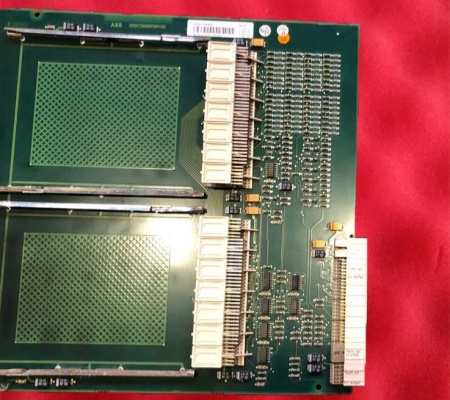

ABB PM154 3BSE003645R1 Communication Interface Board

ABB PM154 3BSE003645R1 Communication Interface Board is an important part of ABB industrial automation system, especially in the S800 I/O system or the 800xA platform. The PM154 facilitates communication between different parts of the system, enabling seamless data exchange and integration of various field devices with the control system.

The PM154 is designed to provide communication between S800 I/O modules and central controllers. It supports a wide range of communication protocols, ensuring interoperability across the system.

It is part of the modular architecture of the ABB S800 I/O system, which means it can be easily integrated into a larger system. The communication board can be replaced or upgraded independently of the other modules, making it easier to maintain and expand your system.

This interface board typically supports fieldbus protocols such as Modbus, Profibus or Ethernet/IP, depending on the system setup. Fieldbus protocols enable communication between controllers and I/O devices, allowing for distributed control throughout a plant.

Frequently asked questions about the product are as follows:

-What protocols does the PM154 support?

The PM154 typically supports a variety of industrial communication protocols, such as Ethernet/IP, Modbus TCP, Profibus, Profinet, and possibly other standards.

-How do I configure the PM154?

ABB's configuration software can be used to define the parameters of the PM154, such as the communication protocol, device address, and other settings. The process may involve setting up communication paths to integrate the board with the rest of the control system.

-What diagnostic features does the PM154 have?

The PM154 includes diagnostic features that allow monitoring of communication status, detection of network issues, and identification of faults. This can include LEDs that indicate the health of the communication link, as well as software-based diagnostics through ABB control system tools.
