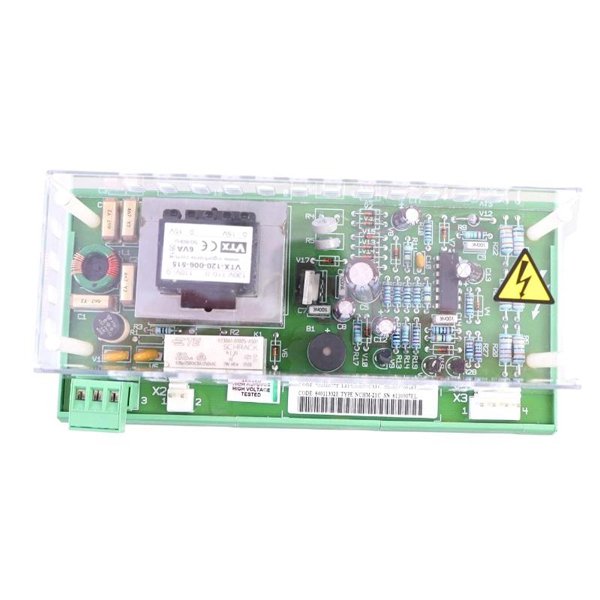

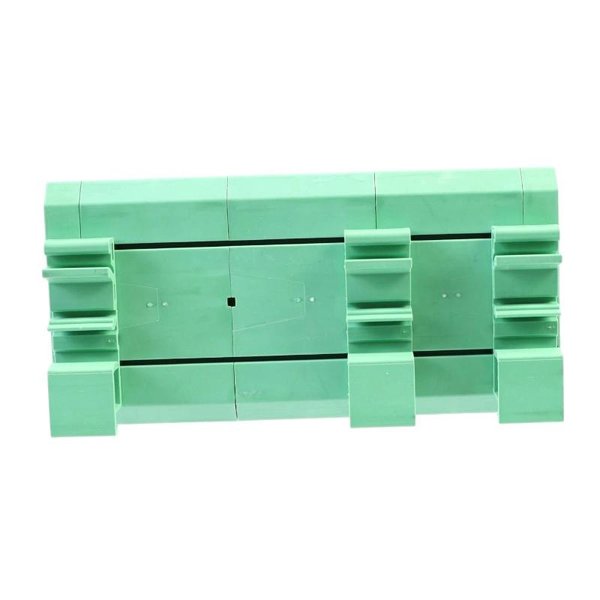

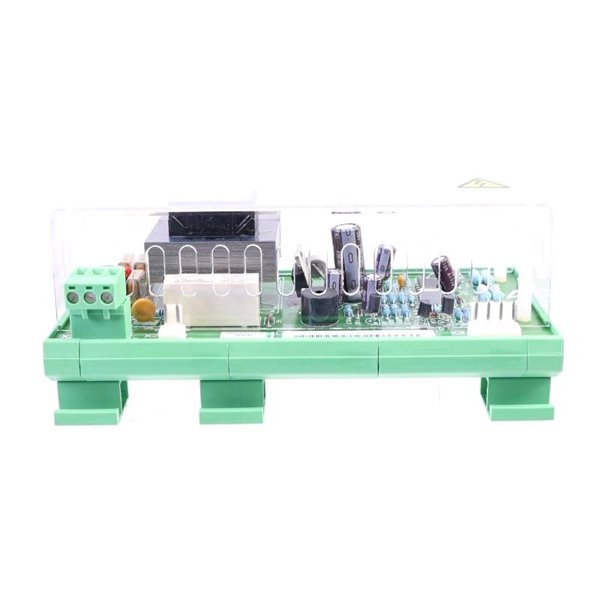

ABB NCHM-21C 64011332E Charging Monitoring Unit

The ABB NCHM-21C (Part No. 64011332E) is a Charging Monitoring Unit designed for monitoring the charging status of DC bus capacitors in industrial Variable Frequency Drives (VFDs) and power converter systems. As a critical safety and diagnostic component, the NCHM-21C ensures that high-voltage capacitors are correctly charged or discharged before any service or maintenance activities are performed.

This module plays a vital role in protecting both personnel and equipment by providing feedback on capacitor voltage conditions. It monitors the charge levels, enables safe operation of pre-charging circuits, and can trigger interlocks if unsafe voltage levels are detected. As part of ABB’s modular system design, the NCHM-21C integrates seamlessly into ACS800, DCS800, and other compatible ABB industrial drive systems.

With a compact profile, high reliability, and essential functionality, the NCHM-21C helps enhance system safety, uptime, and maintainability in high-performance automation environments.

Technical Specifications

Applications

The ABB NCHM-21C Charging Monitoring Unit is used extensively in medium and high-voltage industrial drive systems, where DC capacitor charging needs to be carefully monitored and controlled. Typical application areas include:

• Industrial Drives (VFDs) – DC bus monitoring in ACS800, ACS880, and DCS800 drive systems

• Regenerative Energy Systems – Ensures capacitors are safely charged before power feedback

• Power Converters – Protects hardware during pre-charge and discharge sequences

• Automation Panels – Safety interlock in high-voltage panels requiring capacitor discharge

• Traction Systems – Used in electric rail or transport systems requiring safe capacitor charge monitoring

• Energy Storage Systems – Ensures safe charge/discharge cycles of DC capacitors in UPS or battery systems

Advantages

• Enhanced Safety: Prevents accidental contact with charged capacitors during maintenance or inspection.

• Reliable Feedback: Provides clear, fast detection of DC bus voltage levels.

• Status Indication: Built-in LEDs allow operators to visually confirm charging or discharge status at a glance.

• Compact Design: Small footprint fits easily into control cabinets or drive enclosures.

• Fast Response Time: Helps trigger interlocks or cut-off systems in under 50 ms to avoid equipment damage.

• Flexible Mounting: Can be mounted on panels or DIN rails depending on enclosure type.

• Versatile Integration: Compatible with a wide range of ABB drive systems and control architectures.

• Low Power Consumption: Designed for continuous monitoring with minimal energy use.

• Rugged Construction: Industrial-grade components ensure performance under harsh conditions.

FAQs

1. What is the primary function of the NCHM-21C unit?

It monitors the charge status of DC bus capacitors in ABB drive systems to ensure safe operation and servicing.

2. Is it compatible with the ACS800 drive series?

Yes, it is fully compatible with ACS800 as well as other series like ACS880 and DCS800.

3. Can I use this unit for regenerative systems?

Absolutely, it helps monitor safe capacitor behavior in regenerative and energy storage applications.

4. Does the unit have visual indicators?

Yes, it features LED indicators to show capacitor charge and discharge states.

5. How is it installed in a drive system?

It can be mounted either on a panel or DIN rail, and connects to the DC bus monitoring circuit.

6. What happens if capacitor voltage exceeds safe limits?

The unit can trigger an alarm or interlock output to disable the system or alert operators.

7. Is it suitable for high-humidity environments?

Yes, it supports 5%–95% relative humidity, provided it is installed in a protected enclosure.

8. Is the NCHM-21C a standalone device?

No, it is intended to be integrated within ABB drive systems or panels.

9. Does it require programming?

No programming is required. It operates based on internal voltage thresholds.

10. What certifications does it have?

It complies with CE, RoHS, UL, and IEC safety standards.
