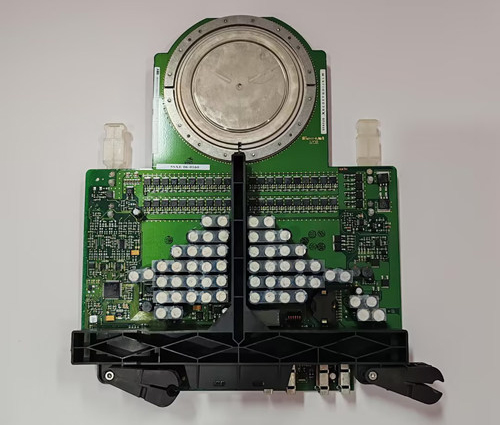

The ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166,serves as a ICGT module for the ACS6000 series variable frequency drives (VFDs). It facilitates the operation of VFDs based on digital input signals.

Key Features

This module boasts 16 digital inputs, each configurable as either normally open (NO) or normally closed (NC) contacts. Additionally, the module offers several other functions:

• Programmable Outputs: Two programmable outputs that can drive external devices, such as relays or contactors.
• Watchdog Circuit: An integrated watchdog circuit that monitors the module’s operation and resets it in the event of a malfunction.
• Communication Port: A communication port for linking the module to a PLC or other control systems.

Versatility and Applications

The ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166 is a versatile and widely applicable module, suitable for a range of purposes including industrial automation, HVAC systems, and renewable energy solutions.

Practical Applications

Here are some practical applications of the ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166:

• Factory Automation: In a factory setting, this module can control motors that drive conveyor belts. Digital inputs are used to initiate and halt motor operation, as well as to monitor the conveyor’s operational status.
• HVAC Systems: Within HVAC systems, the module can govern the operation of fans or pumps. Digital inputs can be employed to activate and deactivate fans or pumps, and to verify their operational status.
• Renewable Energy: In renewable energy systems, this module can manage the operation of solar inverters or wind turbines. Digital inputs can control the activation and deactivation of inverters or turbines, and monitor their performance.

Conclusion

The ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166 stands as a dependable and versatile module, suitable for a wide array of applications.

Connectivity for VFDs

For connecting to the ACS6000 series variable frequency drives, the ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166 encompasses three components: 5SHY3545L0020, a cable for connecting the VFD and the module; 3BHE014105R0001, a connector to link the cable and the module; and 5SXE08-0166, which represents the module itself. These components collectively enable the connection of the VFD to external devices, such as PLCs or other control systems. This setup empowers users to control various equipment, including motors, fans, and pumps, using the VFD.
