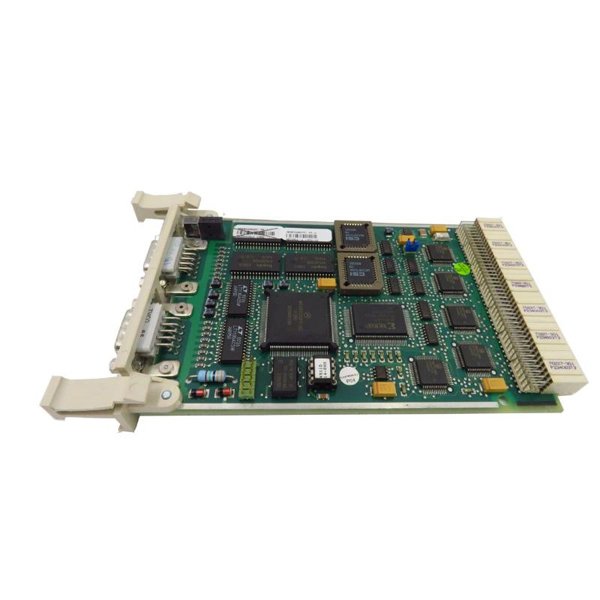

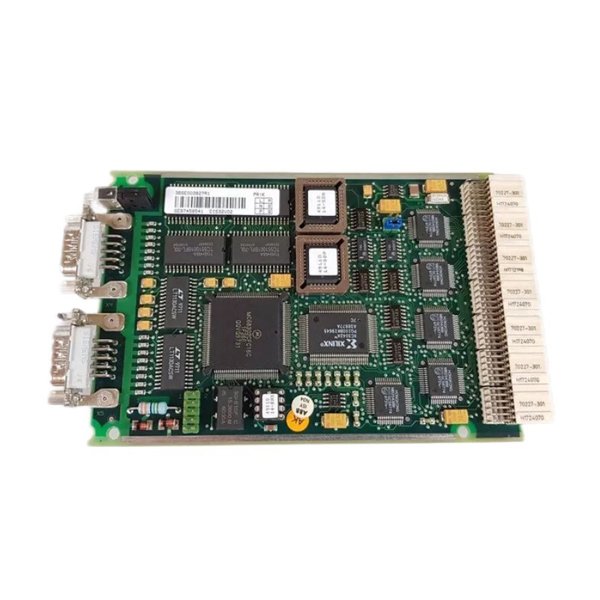

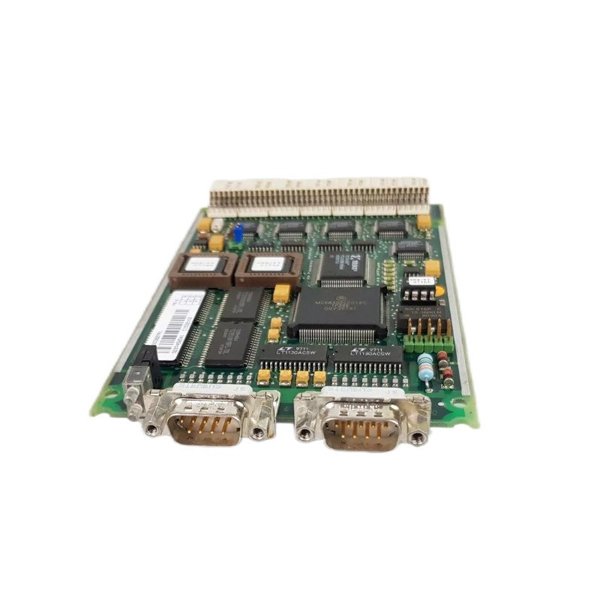

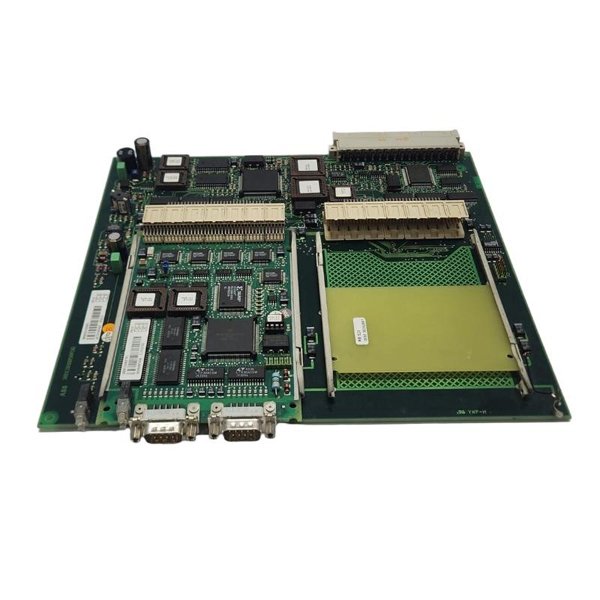

ABB CI532V02 3BSE003827R1 Interface Module

The ABB CI532V02 3BSE003827R1 interface module is designed to provide flexible and reliable communication between the ABB S500 I/O systems and the industrial control network. This module is engineered for high-speed data transmission, offering superior performance in demanding industrial environments. It is equipped with a range of connectivity options that ensure seamless integration with a variety of control systems, making it an ideal choice for industrial automation, process control, and manufacturing applications.

The CI532V02 module is known for its compact design, measuring 234 x 22.5 x 108 mm and weighing only 0.155 kg, which allows for easy installation in tight spaces. Its robust construction ensures reliable operation in harsh industrial conditions, while the built-in diagnostic features assist in quick identification of communication issues, minimizing downtime and enhancing overall system reliability.

Product Specifications

Product Applications

The CI532V02 3BSE003827R1 interface module serves a variety of applications that require high-speed communication and reliable data exchange. Its key uses include:

• Factory Automation: Enables real-time communication between control systems and remote I/O devices, optimizing automation processes in manufacturing environments.

• Process Control: Commonly used in chemical, petrochemical, and pharmaceutical industries, where accurate and fast data transmission is essential for process regulation.

• Industrial Robotics: Supports synchronization and control in robotics applications, ensuring minimal latency and high reliability.

• Material Handling: Provides reliable data exchange for automated conveyor systems and robotic material handling systems.

• Energy Management: Used in power generation and distribution automation, where stable, high-speed communication is critical for system monitoring and control.

• Building Automation: Integrates various building systems, including HVAC, lighting, and security, with centralized control networks for efficient management.

Product Advantages

1. EtherNet/IP Protocol Support: Provides reliable and high-speed communication over industrial Ethernet networks.

2. Compact and Lightweight: Measuring 234 x 22.5 x 108 mm and weighing 0.155 kg, the module fits easily into tight spaces and minimizes panel clutter.

3. High Compatibility: Fully compatible with ABB’s S500 series I/O systems, enhancing the flexibility of the automation system.

4. DIN Rail Mounting: Simplifies installation and provides easy integration into control panels and cabinets.

5. Energy Efficient: Consumes only about 2 W of power, helping to reduce energy costs in large-scale automation systems.

6. Enhanced Diagnostics: Features diagnostic LEDs that provide instant feedback on the status of the module, aiding quick troubleshooting and system reliability.

7. Wide Operating Temperature Range: Operates effectively from -20°C to +60°C, suitable for use in diverse industrial environments.

8. Robust Protection: IP20 rated for protection against dust and indirect contact, ensuring reliable operation in typical industrial conditions.

9. Improved Network Performance: The module enhances the overall communication speed and system responsiveness in automated applications.

10. Reliable Integration: Allows seamless integration with a wide range of industrial control systems, ensuring smooth data flow and system synchronization.

FAQs

1. What protocol does the CI532V02 3BSE003827R1 use for communication?

   It uses the EtherNet/IP protocol for reliable and fast communication.

2. What is the operating voltage of the CI532V02 module?

   The module operates on a 24 V DC input voltage.

3. What are the physical dimensions of the CI532V02?

   The module has dimensions of 234 x 22.5 x 108 mm.

4. How much does the CI532V02 weigh?

   The weight of the module is 0.155 kg.

5. What is the power consumption of the CI532V02 module?

   The module consumes approximately 2 W of power.

6. How many communication ports are available on the CI532V02?

   The module has 1 EtherNet/IP communication port.

7. Is the CI532V02 module compatible with ABB S500 I/O systems?

   Yes, it is fully compatible with the ABB S500 series I/O systems.

8. What diagnostic features does the module offer?

   The module comes with diagnostic LEDs for easy monitoring of the system’s status.

9. What is the temperature range for operating the CI532V02?

   The operating temperature range is between -20°C and +60°C.

10. How is the CI532V02 module mounted?

    The module is designed for easy DIN rail mounting.
