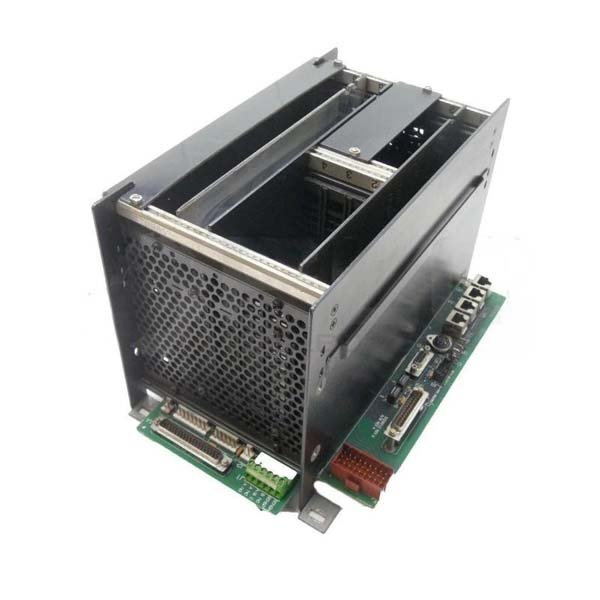

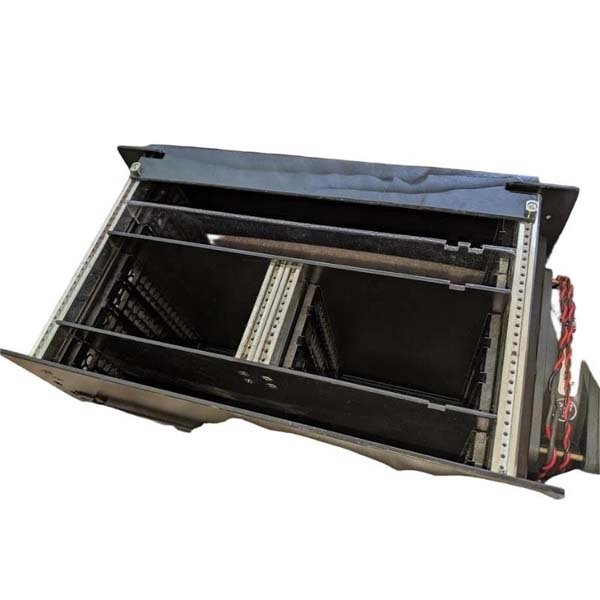

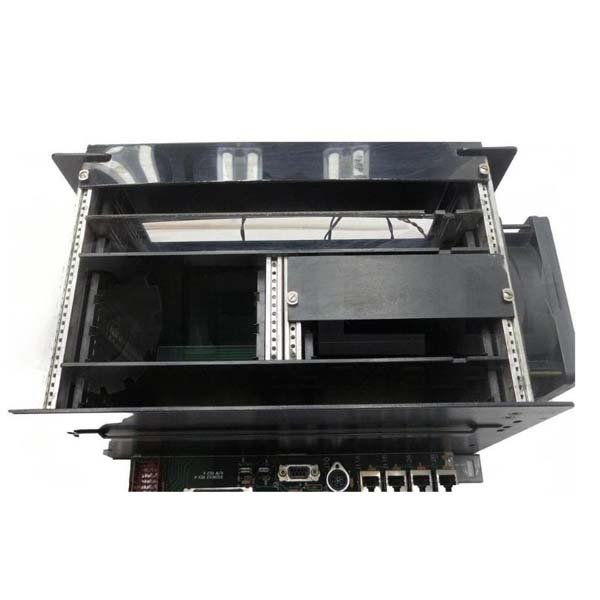

General Electric IS200CABPG1BAA Communication Interface Module

The GE IS200CABPG1BAA Communication Interface Module is a robust solution for linking distributed control systems with industrial automation networks. In contrast to conventional modules, this unit emphasizes signal integrity and low-latency communication, making it ideal for high-demand industrial applications. Its compact design allows integration into crowded control cabinets without sacrificing performance. Engineers will appreciate its combination of reliability, flexibility, and diagnostic features.

Technical Specifications

Applications

Engineers often select the IS200CABPG1BAA for scenarios that demand reliable real-time communication:

• Automated production lines: Facilitates rapid data exchange between PLCs and robotic controllers.

• Process control plants: Connects sensors and actuators to central CPUs for precise process monitoring.

• Energy distribution systems: Integrates measurement devices into SCADA networks.

• Water and wastewater management: Enables centralized monitoring of flow, pressure, and chemical dosing systems.

Its compatibility with multiple communication protocols allows for seamless integration into both legacy and modern automation systems.

Advantages

1. Multi-Protocol Compatibility: DeviceNet, Modbus, and Ethernet support in a single module.

2. Low Latency: Optimized for real-time control environments.

3. Compact Form Factor: Fits efficiently in crowded cabinets.

4. Robust Construction: Resistant to vibration, electrical noise, and temperature variations.

5. Diagnostic Features: LEDs provide immediate feedback on communication status.

6. Energy Efficient: Minimal power consumption reduces operational costs.

7. Flexible Integration: Works with a wide range of GE automation controllers and I/O modules.

FAQs

1. Which communication protocols are supported?

   DeviceNet, Modbus, and optional Ethernet modules.

2. What is the maximum number of nodes for DeviceNet?

   Up to 64 nodes, depending on network topology.

3. Can it operate continuously at 55°C?

   Yes, within the specified -20°C to 60°C range.

4. Does it require additional cooling?

   No, passive cooling is sufficient with proper cabinet ventilation.

5. Is it compatible with older GE CPU modules?

   Generally yes, but always verify protocol compatibility.

6. Can multiple modules be networked together?

   Yes, modules can be combined for expanded communication capabilities.

7. Does it provide diagnostic feedback?

   Yes, status LEDs indicate communication health and errors.

8. What is the expected MTBF?

   Approximately 60,000 hours under standard operating conditions.

9. Are firmware updates supported?

   Yes, optional updates improve protocol handling and fix minor bugs.

10. Mounting options?

    DIN rail or panel mounting with proper grounding.
