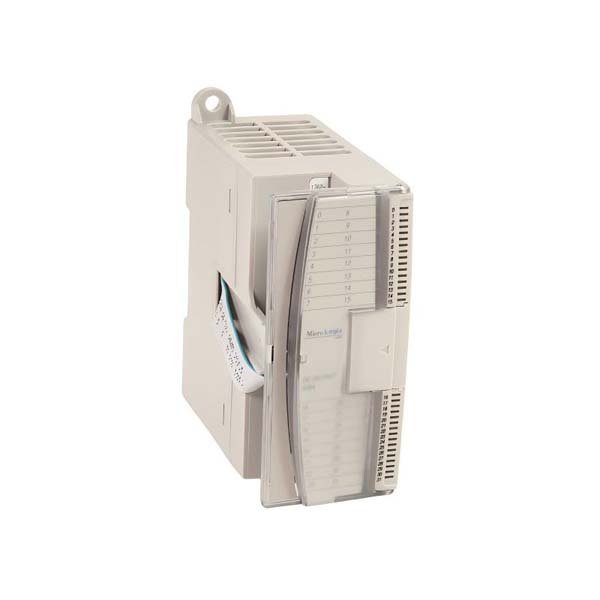

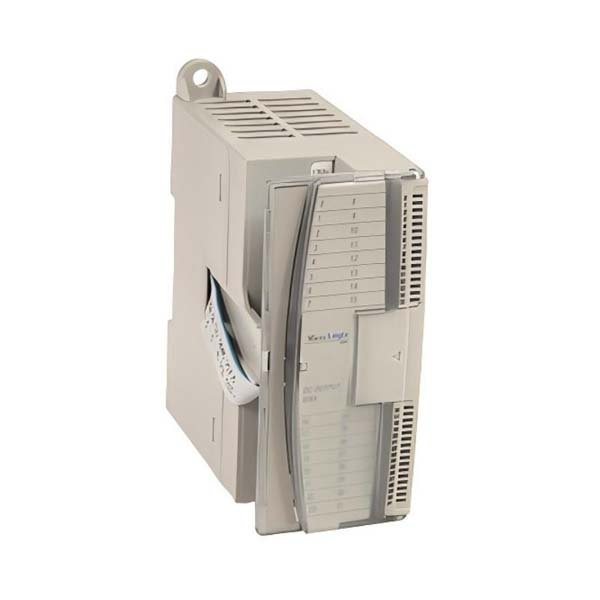

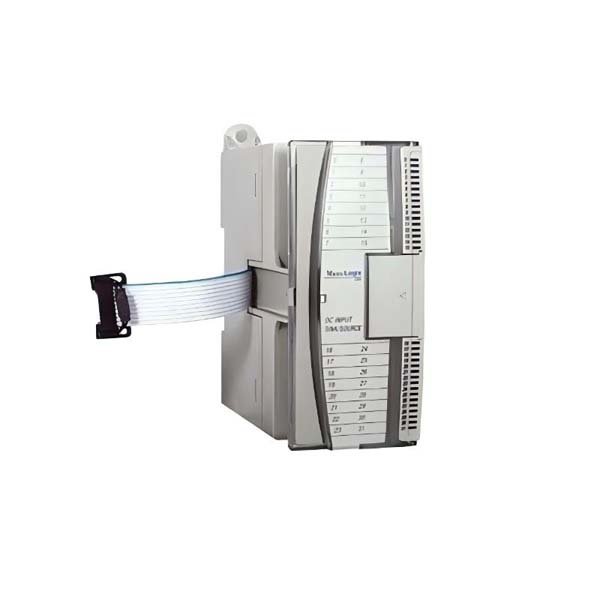

Allen-Bradley 1762-IQ32T Discrete Input Module
Manufacturer:Allen Bradley
Product Number:1762-IQ32T
Product Type:Discrete Input Module
Origin:USA
Dimensions:70 mm × 50 mm × 90 mm
Weight:0.25 kg
Views:135
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Allen-Bradley 1762-IQ32T is a 32-channel discrete input module designed for MicroLogix 1200 PLC systems. It accepts multiple digital inputs from sensors, switches, or other field devices, providing reliable signal acquisition for automated processes.
Engineers value the 1762-IQ32T for its high channel density, easy wiring, and compatibility with standard AC/DC signals. Its rugged design ensures stable operation in industrial environments where PLCs control conveyors, pumps, motors, or other automated equipment.
The module’s labeling, terminal layout, and hot-swap capability (with powered-down PLC) simplify integration into existing control panels.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 1762-IQ32T |
| Module Type | Discrete Input Module / PLC Input Card |
| PLC Compatibility | MicroLogix 1200 Series |
| Number of Inputs | 32 discrete channels |
| Input Type | AC/DC (field selectable) |
| Input Voltage Range | 24 V DC or 120 V AC (depending on wiring) |
| Input Current | 3–8 mA DC per point / AC per datasheet |
| Isolation | Optical isolation between channels and PLC backplane |
| Response Time | 10 ms typical |
| Status Indicators | Individual channel LEDs for input state |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +85 °C |
| Dimensions | 70 mm × 50 mm × 90 mm |
| Weight | 0.25 kg |
| Mounting | DIN rail / Panel mounting via MicroLogix chassis |
Applications / Field Deployment Examples
-
Digital input acquisition for MicroLogix-controlled conveyor systems.
-
Monitoring limit switches, pushbuttons, or safety interlocks.
-
PLC-based motor control and sequencing applications.
-
Integration into small to medium-sized automation panels requiring high input density.
-
Retrofitting older PLCs for expanded discrete I/O capability.
Advantages / Key Features
-
High Input Density: 32 channels in a compact form factor.
-
Wide Voltage Compatibility: Accepts both AC and DC discrete signals.
-
LED Status Indicators: Immediate visual feedback for troubleshooting.
-
Reliable Isolation: Protects PLC backplane from voltage transients.
-
Easy Installation: Snap-on DIN rail mounting with quick wiring access.
-
Field-Tested Performance: Robust in industrial environments with noise and vibration.
FAQs
-
Which PLCs are compatible?
– MicroLogix 1200 Series.
-
Can inputs be mixed AC and DC?
– Yes, field-selectable per wiring instructions.
-
Is the module hot-swappable?
– No, PLC power must be off before module replacement.
-
What is the response time of the inputs?
– Typical 10 ms.
-
Are there diagnostic LEDs?
– Yes, one LED per channel indicating input state.
-
How is the module mounted?
– Snap-on DIN rail or inside MicroLogix chassis.
-
What is the isolation type?
– Optical isolation between each input channel and PLC backplane.
-
What environmental conditions are supported?
– 0 °C – +55 °C operating, –20 °C – +85 °C storage.
-
Can it be used with third-party PLCs?
– Designed for MicroLogix 1200; third-party compatibility is not guaranteed.
-
What is the typical wiring scheme?
– Each input wired to sensor/switch with common return; refer to MicroLogix 1200 I/O manual.
