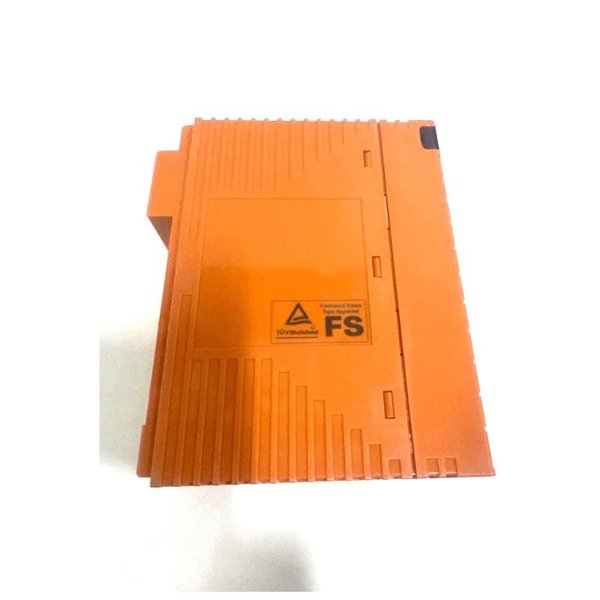

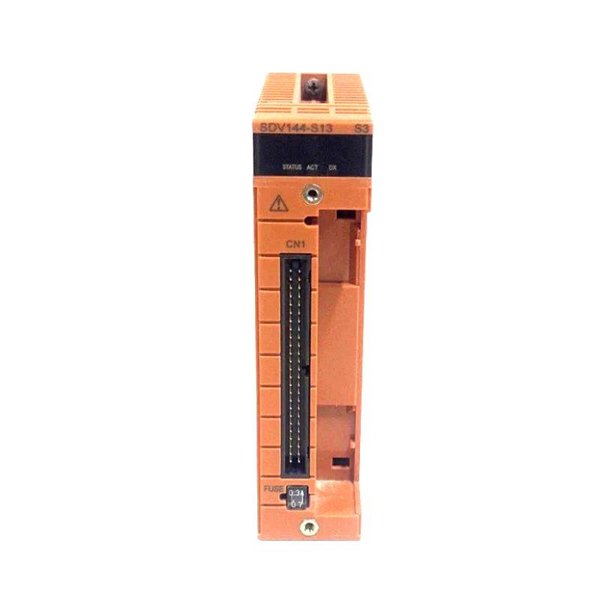

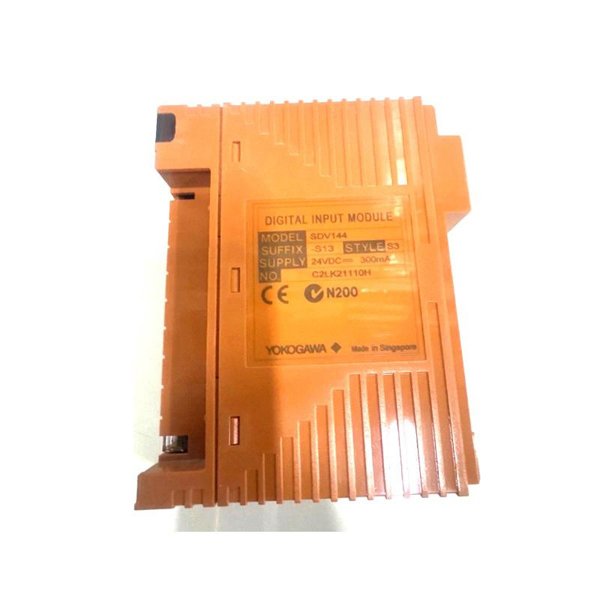

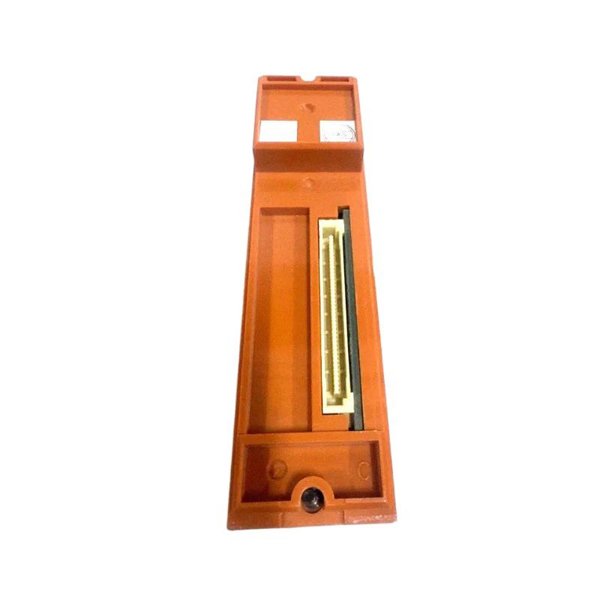

Yokogawa SDV144-S13/B4D10 Digital Input Module
Manufacturer:Yokogawa
Product Number:SDV144-S13/B4D10
Product Type:Digital Input Module
Origin:Japan
Dimensions:130 x 32.8 x 107.5 mm
Weight:0.36 kg
Views:51
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa SDV144-S13/B4D10 Digital Input Module is designed for high-reliability process automation applications within the Yokogawa CENTUM VP and ProSafe-RS systems. It provides stable and accurate digital signal acquisition with robust isolation, making it suitable for critical industrial control environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | SDV144-S13/B4D10 |
| Type | Digital Input Module |
| Input Channels | 16 isolated digital inputs |
| Input Voltage Range | 24 V DC (typical) |
| Input Isolation | Optical isolation between channels |
| Response Time | ≤ 5 ms |
| Power Supply | 5 V DC (internal bus) |
| Power Consumption | Approx. 4.5 W |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Humidity | 10 to 90% RH (non-condensing) |
| Dimensions | 130 × 32.8 × 107.5 mm |
| Weight | 0.36 kg |
| Mounting | Mounted on I/O card baseplate |
| Certification | CE, CSA, ATEX compliant |
Applications
-
Power plant control systems
-
Oil & gas safety interlock and shutdown systems
-
Chemical process monitoring
-
Refinery control loops
-
Manufacturing automation and discrete control
-
Critical safety applications within ProSafe-RS
Advantages
-
High channel density with compact module size
-
Robust isolation ensuring reliable operation in harsh environments
-
Fast response suitable for safety instrumented functions
-
Flexible integration with Yokogawa control systems
-
Proven reliability with long lifecycle support
-
Reduced downtime through hot-swappable design
FAQ
Q1: What type of signals does the SDV144-S13/B4D10 accept?
A1: It accepts isolated 24 V DC digital signals for monitoring ON/OFF states.
Q2: How many input channels are available?
A2: The module provides 16 independent and optically isolated digital input channels.
Q3: Can this module be used in safety instrumented systems (SIS)?
A3: Yes, it is certified for use with Yokogawa’s ProSafe-RS SIS platform.
Q4: What is the typical response time?
A4: The module achieves a response time of ≤ 5 ms, suitable for fast interlock applications.
Q5: Is the module hot-swappable?
A5: Yes, it supports online replacement without system shutdown.
Q6: What kind of isolation is implemented?
A6: Each channel is optically isolated to prevent noise coupling and ensure reliability.
Q7: What is the power consumption?
A7: The module typically consumes around 4.5 W.
Q8: Can it operate in high-temperature environments?
A8: Yes, it supports operation from 0 to 55 °C.
Q9: What certifications does the module comply with?
A9: It complies with CE, CSA, and ATEX standards for industrial use.
Q10: What industries most commonly use this module?
A10: Power generation, oil & gas, petrochemical, and heavy industrial automation.
