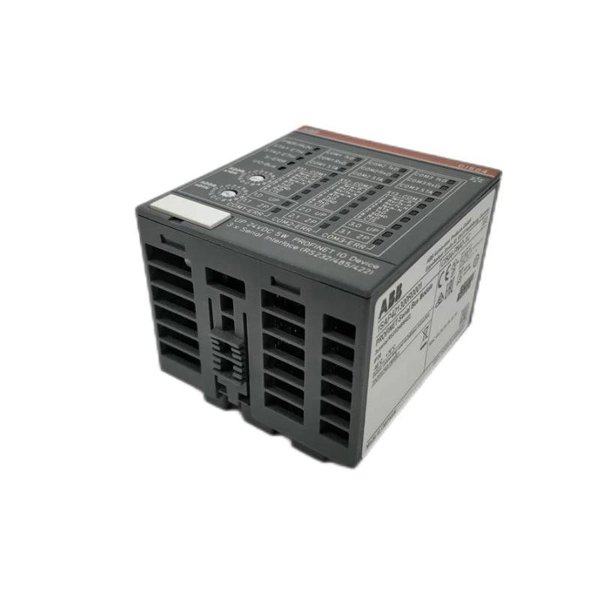

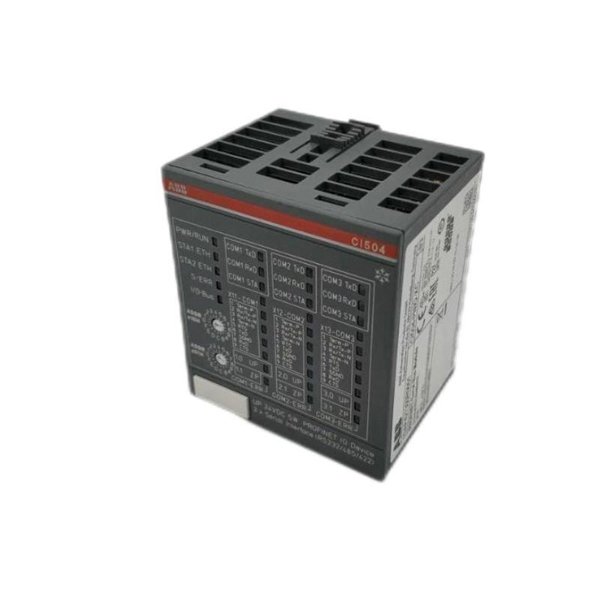

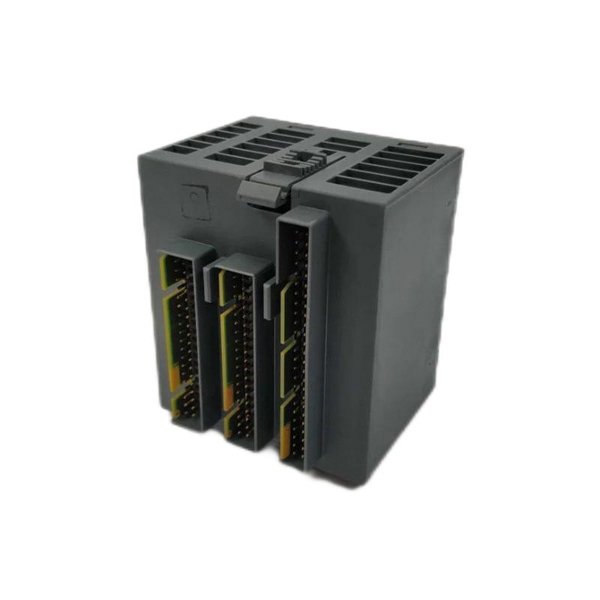

ABB CI504-PNIO 1SAP221300R0001 S500 Interface Module

The ABB CI504-PNIO 1SAP221300R0001 is a high-performance communication interface module designed specifically for the ABB S500 series of I/O systems. It enables seamless integration of remote I/O stations and programmable logic controllers (PLCs) into industrial Ethernet networks using the PROFINET protocol. This module is engineered to ensure reliable, high-speed data transfer while operating in demanding industrial environments. With its compact size and advanced diagnostic capabilities, the CI504-PNIO enhances the flexibility and efficiency of automation systems. It is an essential component for modern control architectures, facilitating real-time communication and network diagnostics that improve overall system performance.

Product Specifications

Product Applications

The ABB CI504-PNIO interface module supports a wide range of industrial applications by providing reliable communication and data integration between I/O modules and control systems:

• Factory Automation: Ensures real-time communication between controllers and remote I/O devices in manufacturing lines, improving operational efficiency and control accuracy.

• Process Automation: Ideal for chemical, petrochemical, and other process industries requiring precise data acquisition and control.

• Energy Management: Supports control systems in power plants, substations, and electrical distribution networks by providing seamless integration of automation devices.

• Packaging and Material Handling: Enables real-time monitoring and control of conveyors, robotic systems, and packaging machines to optimize throughput and quality.

• Automotive Manufacturing: Facilitates coordinated control in assembly lines, improving production speed and reducing errors.

• Building Automation: Integrates various building systems such as HVAC, lighting, and security with centralized control networks.

Product Advantages

1. PROFINET Protocol Compliance: Supports standard industrial Ethernet communication for fast and reliable data transfer.

2. Compact and Lightweight: Measures 62 x 76 x 67.5 mm and weighs only 0.139 kg, allowing easy integration in tight spaces.

3. DIN Rail Mounting: Simplifies installation and integration in control panels.

4. Wide Operating Temperature Range: Reliable operation from -20°C to +60°C suits a variety of environments.

5. Diagnostic LEDs: Provides immediate visual status for communication and module operation, easing troubleshooting.

6. Energy Efficient: Low power consumption of 1.2 W helps reduce overall system energy costs.

7. High Compatibility: Designed to seamlessly connect with ABB S500 series I/O modules.

8. Robust Construction: IP20 rated protection suitable for typical industrial conditions.

9. Real-Time Communication: Supports real-time data exchange for precise process control.

10. Ease of Maintenance: Built-in diagnostics reduce downtime and simplify maintenance tasks.

FAQs

1. What communication protocol does this module use?

   The CI504-PNIO uses the PROFINET protocol for industrial Ethernet communication.

2. What is the operating voltage of the module?

   It operates on 24 V DC.

3. How much power does the module consume?

   The power consumption is approximately 1.2 W.

4. What are the dimensions of the CI504-PNIO?

   The module dimensions are 62 x 76 x 67.5 mm.

5. How is the module installed?

   It is mounted on a DIN rail for easy installation.

6. What is the weight of the CI504-PNIO?

   The module weighs 0.139 kg.

7. What protection rating does the module have?

   The protection rating is IP20.

8. What temperature range can the module operate within?

   It operates between -20°C and +60°C.

9. Is the CI504-PNIO suitable for energy management applications?

   Yes, it is widely used in energy management systems such as substations and power plants.

10. What diagnostics features does the module offer?

    It has diagnostic LEDs that provide real-time status information to assist with troubleshooting.
