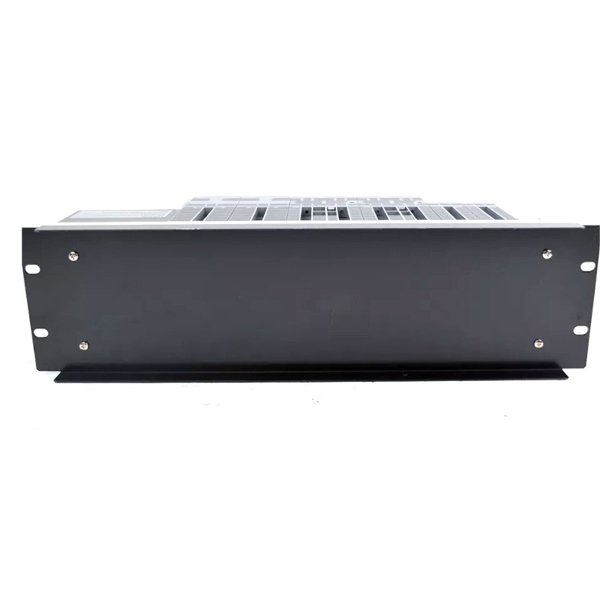

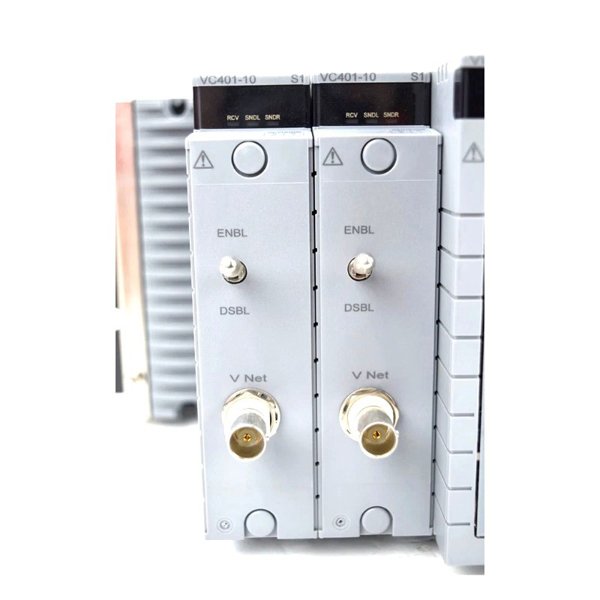

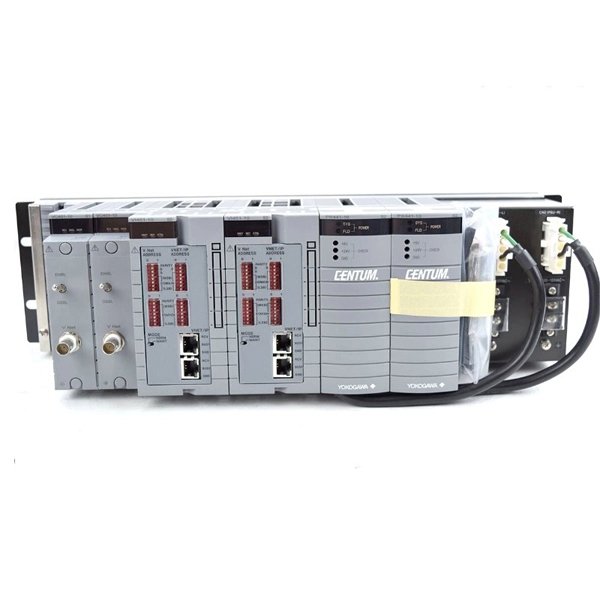

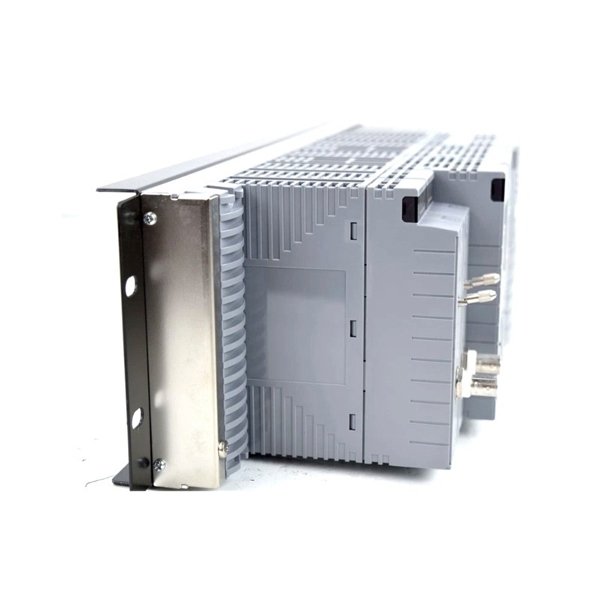

Yokogawa AVR10D Dual-Redundant V Net Router

The Yokogawa AVR10D Dual-Redundant V Net Router is a high-performance device designed to provide reliable communication between field devices and control systems in industrial automation networks. With dual-redundancy features, this router ensures uninterrupted operation, even in the event of a network failure, providing optimal network availability and robustness. The AVR10D is widely used in industries that require high reliability and data integrity, such as oil and gas, chemical processing, power generation, and manufacturing.

This router allows seamless communication between various Yokogawa control systems and field devices, making it an essential component for managing complex and distributed automation systems. The dual-redundant design ensures fault tolerance, maintaining system availability and preventing data loss in critical processes.

Product Specifications

Product Applications

The Yokogawa AVR10D Dual-Redundant V Net Router is designed to support various applications in the industrial automation domain:

1. Industrial Network Communication

   The router enables reliable communication between distributed devices, including controllers, I/O modules, and field devices, ensuring seamless data transfer in a factory automation setup.

2. Data Integrity & System Redundancy

   With dual-redundant network paths, the AVR10D ensures that the system remains operational even in the case of a network failure. It provides a critical failover mechanism, ensuring continuous data flow.

3. SCADA System Connectivity

   The AVR10D router plays a crucial role in connecting SCADA systems with various industrial devices, offering enhanced network reliability and fault tolerance.

4. Real-time Monitoring

   The router supports the real-time monitoring of various field devices and sensors in processes, providing consistent data flow to the control system for decision-making.

Product Advantages

• Dual-Redundant Operation

  The AVR10D offers dual-redundant V Net communication, ensuring continuous operation in case of failure and preventing downtime in critical operations.

• Versatile Communication Support

  Supports multiple industrial communication protocols such as V Net, Modbus, and TCP/IP, allowing seamless integration with existing networks and devices.

• High Availability

  The redundant design guarantees a high level of availability, which is essential for mission-critical operations where network failure is not an option.

• Compact & Flexible Design

  With a compact form factor and DIN rail mountability, the AVR10D can be easily integrated into control panels and industrial racks, saving valuable space.

• Easy to Install and Maintain

  The router is designed for straightforward installation, maintenance, and troubleshooting, ensuring that your industrial systems remain operational with minimal downtime.

• Reliable Power Supply

  The device is powered by a 24V DC supply with wide tolerance, ensuring robust performance even with slight power fluctuations.

FAQ

1. What communication protocols does the AVR10D support?

Answer:The AVR10D supports V Net, Modbus, and TCP/IP communication protocols, ensuring compatibility with a wide range of industrial automation systems.

2. Does the AVR10D require a specific type of network?

Answer:No, the AVR10D can be used in various network configurations, as long as the network supports the communication protocols it uses, such as Ethernet for TCP/IP.

3. Can the AVR10D be used in hazardous environments?

Answer:While the AVR10D has wide temperature and humidity tolerance, it is not specifically rated for hazardous locations. Please refer to product documentation for detailed environmental specifications.

4. How does the dual-redundant feature work?

Answer:The dual-redundant feature ensures continuous network communication by using two independent network paths. If one path fails, the other takes over, maintaining system communication without interruption.

5. What is the power requirement for the AVR10D router?

Answer:The AVR10D operates with a 24V DC power supply, with a tolerance of ± 20%.

6. Can the AVR10D support real-time data monitoring?

Answer:Yes, the AVR10D allows for real-time data monitoring of industrial processes, supporting seamless data flow to the control system.

7. What types of devices can be connected to the AVR10D?

Answer:The AVR10D can connect various field devices, such as controllers, I/O modules, sensors, and SCADA systems, through Ethernet and serial communication ports.

8. How do I install the AVR10D router?

Answer:The AVR10D router can be easily installed on a DIN rail and connected to the network through its Ethernet and serial ports.

9. What is the operating temperature range of the AVR10D?

Answer:The AVR10D operates in a temperature range of -10°C to 60°C, making it suitable for various industrial environments.

10. Is the AVR10D compatible with other Yokogawa systems?

Answer:Yes, the AVR10D is designed to seamlessly integrate with various Yokogawa control systems and field devices, enhancing the overall network communication.
