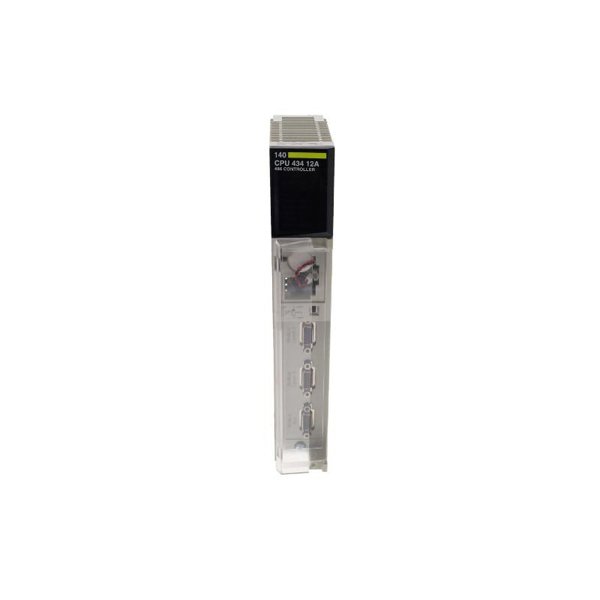

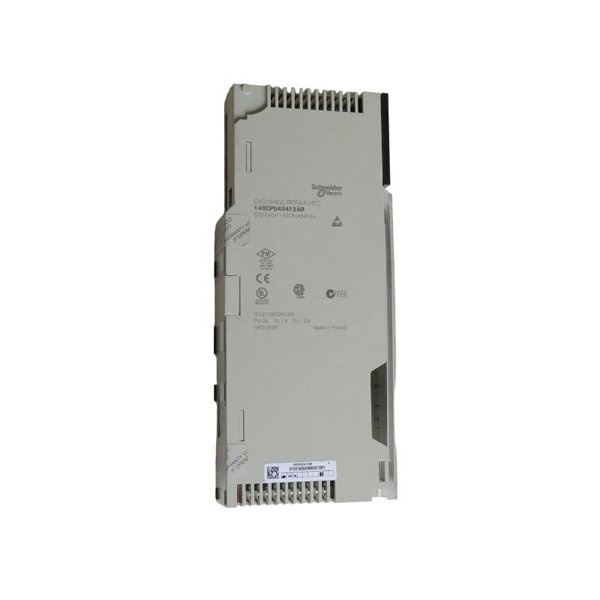

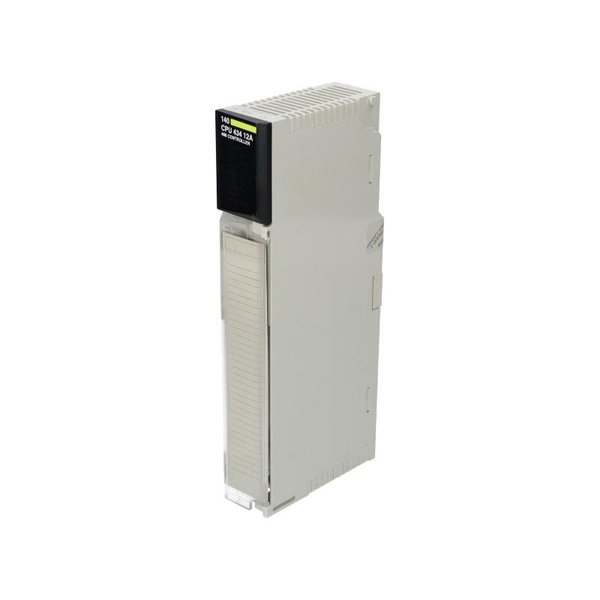

Schneider 140CPU43412AR processor

This model comes equipped with advanced features such as multitasking, peer-to-peer communication capabilities, remote I/O support, and compatibility with multiple programming languages through Unity Pro or Concept software. The 140CPU43412AR integrates seamlessly into existing Quantum architecture, offering flexibility for both new designs and retrofits.

Technical Specifications

Product Advantages

• High Performance: Equipped with a powerful Motorola 68040 processor, offering robust execution speeds for large-scale applications.

• Flexible Networking: Supports multiple communication protocols including Modbus, Modbus Plus, and Ethernet via add-on modules.

• Memory Retention: Retains critical user programs and data during power outages using internal battery backup.

• Scalability: Can control extensive I/O setups, making it ideal for expansive industrial systems.

• Software Compatibility: Works with Unity Pro, Concept, and ProWORX, allowing users to select the programming environment that fits their preferences.

• Diagnostic Features: Offers detailed diagnostics for enhanced system monitoring and maintenance.

• Industrial Reliability: Engineered to withstand harsh environments, making it suitable for mission-critical applications.

Product Applications

• Oil and Gas Refineries: For managing drilling, extraction, and processing equipment.

• Water Treatment Facilities: Automating filtration, chemical dosing, and pump stations.

• Power Generation Plants: Controls turbine sequencing, safety interlocks, and load sharing.

• Automotive Manufacturing: Used in assembly lines, robotic control, and quality checks.

• Pharmaceutical Production: Handles batch control, data logging, and environmental monitoring.

• Food and Beverage Industries: Manages blending, packaging, and CIP systems.

Frequently Asked Questions (FAQ)

Q1: What is the main function of the 140CPU43412AR?

A1: It serves as the central processing unit in a Modicon Quantum PLC system, handling program execution and I/O coordination.

Q2: Is it compatible with modern programming tools?

A2: Yes. It can be programmed with Unity Pro, Concept, or ProWORX 32.

Q3: Can it be used with Ethernet networks?

A3: Yes, though Ethernet communication requires an additional NOE module.

Q4: How much memory does the module have?

A4: The CPU has 544 KB of internal RAM for user applications.

Q5: What kind of processor does it use?

A5: The unit features a Motorola 68040 processor running at 25 MHz.

Q6: Does it support battery backup?

A6: Yes, it includes a backup battery to retain memory during power loss.

Q7: How do I mount the 140CPU43412AR?

A7: It is rack-mounted via the Quantum backplane system.

Q8: Can I use it in high humidity environments?

A8: Yes, it operates in environments with up to 95% non-condensing humidity.

Q9: What is the maximum I/O capacity?

A9: It supports up to 8000 discrete and 1024 analog I/O points.

Q10: What happens if the watchdog timer is triggered?

A10: If the watchdog is triggered, the CPU transitions to a safe state to prevent system damage.
