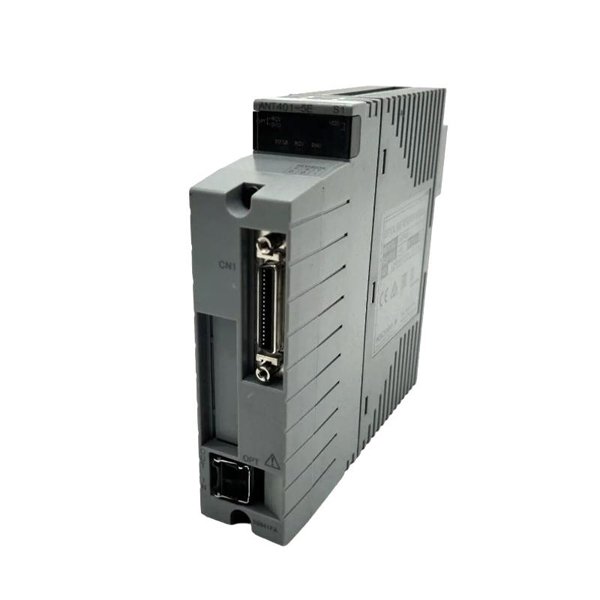

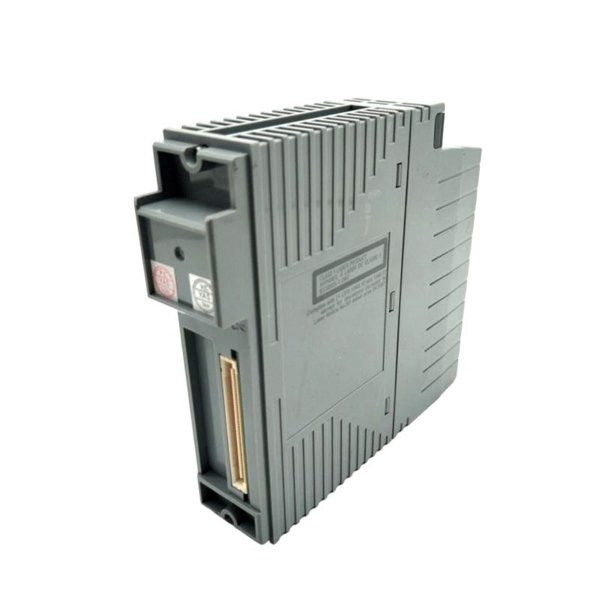

Yokogawa ANT401-50 S1 Optical ESB Bus Repeater Master Module

The Yokogawa ANT401-50 S1 Optical ESB Bus Repeater Master Module is a high-performance communication module designed to enhance system connectivity within large-scale distributed control systems (DCS). Serving as the master unit in the ESB (Extension Serial Bus) optical repeater system, it ensures seamless communication between remote nodes and the central controller across extended distances. This module plays a crucial role in improving system scalability, reliability, and noise immunity in industrial environments where electromagnetic interference (EMI) and long-distance data transfer are major challenges.

By using advanced optical communication technology, the ANT401-50 S1 supports high-speed data transmission over fiber-optic links, minimizing latency and ensuring deterministic performance for mission-critical processes. The module adheres to strict industrial standards, making it suitable for applications in oil & gas, petrochemical plants, power generation facilities, and other process automation sectors requiring robust and redundant network architecture.

Product Specifications

Product Applications

The Yokogawa ANT401-50 S1 Optical ESB Bus Repeater Master Module is widely applied in industrial environments where long-distance, high-speed, and interference-free communication is essential. Common application areas include:

• Process Automation Systems: Acts as a backbone for extending ESB bus connectivity between remote I/O nodes and control systems in large plants.

• Oil & Gas Facilities: Supports reliable communication in refineries, offshore platforms, and pipeline monitoring.

• Power Generation: Ensures stable data transmission across large-scale power stations, including thermal and nuclear facilities.

• Petrochemical Plants: Provides robust communication links in environments with high EMI and hazardous conditions.

• Pharmaceutical and Food Industries: Facilitates compliance with strict operational standards by maintaining deterministic communication.

Product Advantages

• High-Speed Fiber-Optic Communication: Enables fast and reliable data transfer with minimal latency.

• Excellent EMI Immunity: Optical technology eliminates electrical interference, ensuring stable system performance.

• Long-Distance Connectivity: Capable of extending communication up to several kilometers without signal degradation.

• Robust Redundancy Support: Enhances system availability by supporting redundant communication paths.

• Compact and Durable Design: Optimized for industrial environments, offering easy installation and maintenance.

• Wide Temperature and Humidity Range: Suitable for harsh and challenging operational conditions.

FAQ

1. What fiber type does the ANT401-50 S1 support, single-mode or multimode?

   It supports both single-mode and multimode fibers, depending on the required distance.

2. What is the maximum distance achievable with fiber-optic communication using this module?

   Typically up to 15 km with single-mode fiber, depending on system configuration.

3. Does the ANT401-50 S1 support redundant communication paths?

   Yes, it supports redundant optical paths for high system availability.

4. What is the maximum number of nodes that can be connected to the ESB bus via this module?

   Up to 64 nodes can be connected, depending on network design.

5. What protocols are supported over the ESB bus using this module?

   It supports Yokogawa’s proprietary ESB protocol for real-time process communication.

6. Can the ANT401-50 S1 operate in hazardous areas?

   It can be installed in certified enclosures for hazardous environments, complying with relevant standards.

7. What diagnostic features are available for fault detection?

   It provides LED status indicators, built-in diagnostics, and alarm outputs for link monitoring.

8. Is hot-swapping supported for this module?

   Yes, it can be replaced without shutting down the entire system when configured properly.

9. How does the module handle synchronization across multiple nodes?

   It uses time-synchronized data exchange mechanisms to ensure deterministic communication.

10. What measures are in place to handle data transmission errors?

    The module uses CRC error detection and automatic retransmission for error correction.
