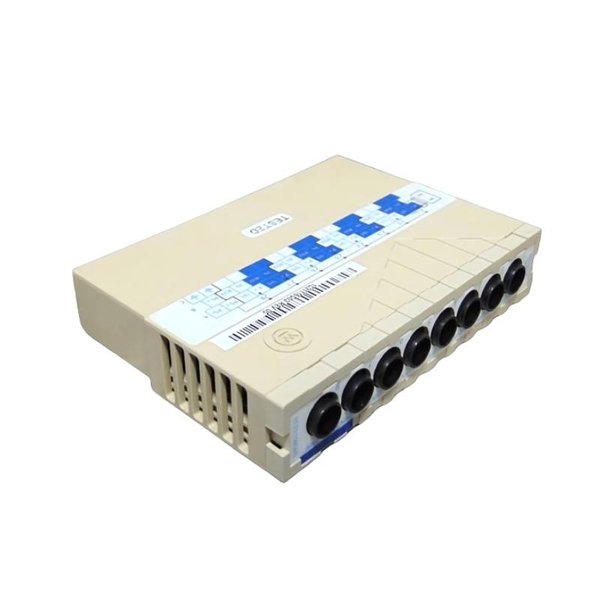

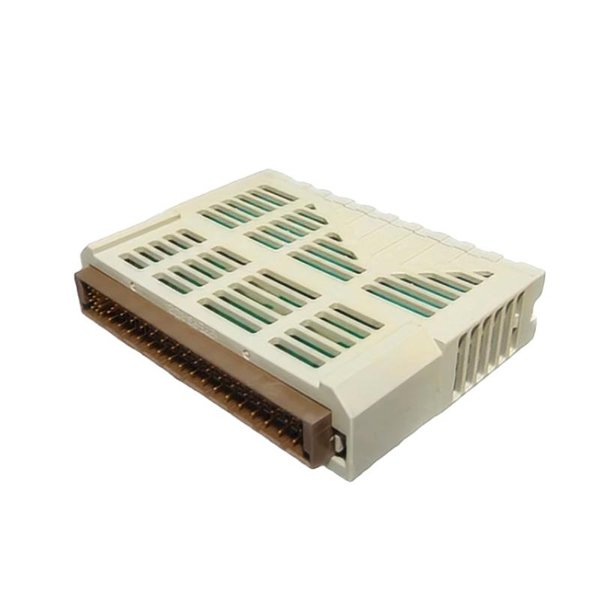

Ovation 1C31116G03 Analog Input Module

The Ovation 1C31116G03 Analog Input Module is a key component in Emerson’s Ovation Distributed Control System (DCS) family. Designed for precision and reliability, this module serves as an interface for collecting analog signals from field devices such as transmitters, sensors, and control instruments.

The 1C31116G03 module translates real-world process variables — such as temperature, pressure, level, or flow — into digital data that is utilized by the control system for monitoring and advanced process control. It offers high-accuracy analog-to-digital conversion, strong noise immunity, and robust diagnostic features, ensuring it meets the demanding requirements of industries such as power generation, chemical processing, and oil & gas.

Part of Emerson’s commitment to providing modular and flexible control architectures, the 1C31116G03 is fully compatible with Ovation’s I/O subsystems and integrates seamlessly into existing systems, making it a reliable solution for both new installations and modernization projects.

Product Parameters

Applications

The Ovation 1C31116G03 Analog Input Module is used in diverse industries where accurate process monitoring and control are critical. Typical application areas include:

• Power Generation Plants

  • Steam, gas, combined-cycle, hydroelectric, and nuclear plants for process variable monitoring.

• Oil & Gas Operations

  • Used in upstream, midstream, and downstream processes for temperature, flow, and pressure inputs.

• Chemical & Petrochemical Processing

  • Supports complex multi-variable process controls and regulatory loops.

• Water & Wastewater Treatment

  • Monitors flow rates, levels, chemical dosing, and environmental compliance parameters.

• Metals & Mining

  • Used in ore processing and refining plants.

• Pharmaceutical & Food Processing

  • Precision monitoring of critical batch processes and CIP (clean-in-place) systems.

Product Advantages

• High Accuracy & Precision

  Delivers 16-bit resolution and ±0.1% accuracy for superior process control.

• Multiple Signal Support

  Handles various signal ranges — from current loops to voltage — allowing for flexible plant integration.

• Excellent Noise Rejection

  High common-mode rejection for reliable operation even in noisy industrial environments.

• Isolated Channels

  Enhanced safety and reduced risk of ground loops through robust channel isolation.

• Hot Swappable

  Enables module replacement without system downtime.

• Compact & Modular

  Slim profile conserves valuable rack space and allows for modular system expansion.

• Proven Field Reliability

  Extensively deployed in global Ovation systems, with high mean time between failure (MTBF).

• Optimized for Emerson Ovation DCS

  Full interoperability with Ovation controllers, engineering tools, and diagnostics.

• Designed for Harsh Environments

  Suitable for wide temperature and humidity ranges; built for rugged conditions.

• Regulatory Compliance

  Meets industry safety, environmental, and performance standards.

FAQ

1. What is the primary function of the 1C31116G03 module?

   It converts analog signals from field instruments into digital data for use by the Ovation DCS.

2. How many analog inputs does this module support?

   It supports eight isolated analog input channels per module.

3. Is this module hot-swappable?

   Yes, it can be removed and replaced without shutting down the entire Ovation system.

4. What types of field signals are compatible?

   4–20 mA, 1–5 V DC, 0–10 V DC, and ±10 V DC are supported.

5. What is the resolution of the module’s A/D conversion?

   16-bit resolution ensures high accuracy across the signal range.

6. Does this module provide channel isolation?

   Yes, it offers both channel-to-channel and channel-to-ground isolation.

7. What kind of diagnostic features does it offer?

   It supports online diagnostics for input signal quality, integrity, and module health.

8. Can it handle rapidly changing process variables?

   Yes, with up to 1000 samples per second, it handles fast-changing analog inputs efficiently.

9. How does it integrate with existing Ovation systems?

   It is fully compatible with Ovation controllers and can be configured via Ovation engineering tools.

10. What environmental certifications does this module carry?

    CE, UL, CSA, and RoHS compliant, suitable for global installations.
