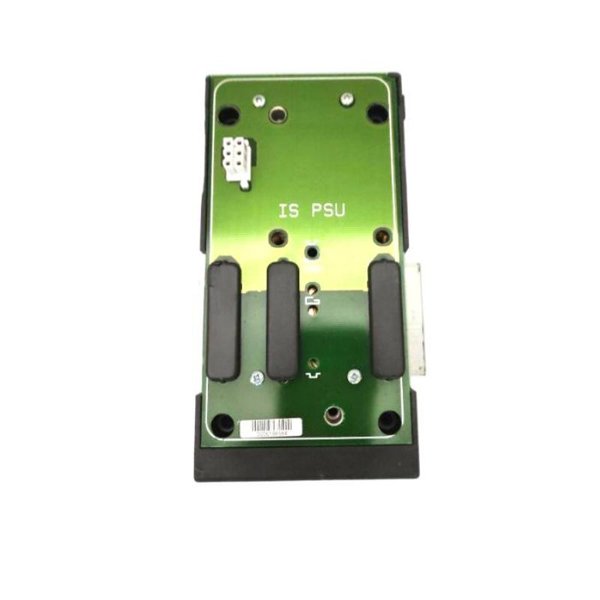

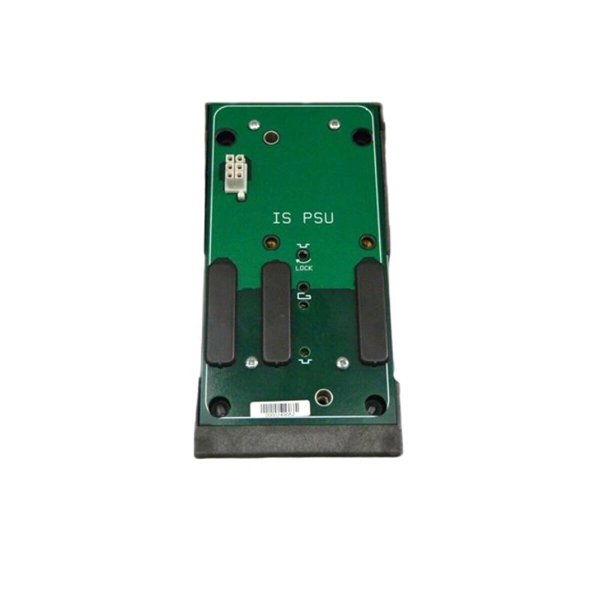

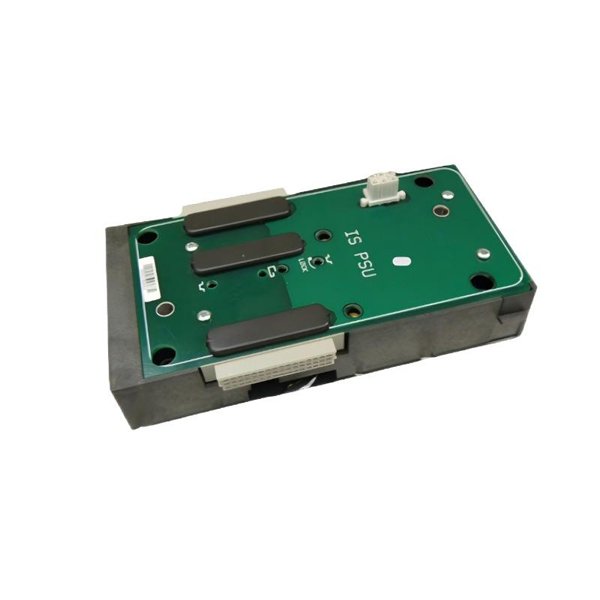

Emerson KJ4101X1-BC1 Power Carrier

The Emerson KJ4101X1-BC1 Power Carrier is a robust and compact mounting solution designed for Emerson’s DeltaV™ distributed control system (DCS). This power carrier serves as a reliable platform to supply, manage, and distribute power to connected I/O modules and system components. Its optimized design ensures stable power transmission, easy module integration, and maximum space efficiency in complex control environments.

Built with industrial-grade materials and high-quality internal circuitry, the KJ4101X1-BC1 guarantees consistent performance, even in challenging environments where reliability and uptime are critical. Its compatibility with multiple DeltaV™ modules makes it a vital component for power management in industrial automation systems.

Technical Specifications

Applications

• Process Automation Systems – Delivers stable and consistent power to critical control modules.

• Oil and Gas Industry – Supports mission-critical power distribution in drilling and refining facilities.

• Power Generation Plants – Ensures uninterrupted power flow for turbine and generator monitoring modules.

• Chemical and Petrochemical Facilities – Provides dependable power management in hazardous and high-demand environments.

• Manufacturing Automation – Simplifies power integration for high-density control panels in production systems.

• Water and Wastewater Treatment Plants – Supports continuous operation of automated control and monitoring systems.

Advantages

• Compact Design – Small footprint (102 × 56 × 30 mm) enables installation in space-limited cabinets.

• Lightweight Construction – Weighing only 0.159 kg, it simplifies mounting and reduces strain on enclosures.

• Robust Durability – Engineered with high-quality materials for long-lasting operation in harsh conditions.

• Efficient Power Distribution – Provides reliable and consistent power to all connected DeltaV™ modules.

• Flexible Mounting Options – Supports both DIN-rail and panel-mount installations.

• Simplified Maintenance – Tool-free design for easy replacement or service during operations.

• High Compatibility – Fully supports Emerson’s standard DeltaV™ I/O and communication modules.

• Wide Environmental Tolerance – Operates effectively across a broad temperature and humidity range.

• Proven Reliability – Tested for consistent performance in industrial automation systems worldwide.

• Enhanced System Uptime – Reduces the risk of power interruptions, improving operational efficiency.

FAQ

Q1: What is the primary role of the KJ4101X1-BC1 in a DeltaV™ system?

A1: It acts as the central platform to deliver and distribute power to various connected modules within the DeltaV™ DCS system.

Q2: Is the KJ4101X1-BC1 compatible with legacy DeltaV™ modules?

A2: Yes, it is fully backward-compatible with most legacy DeltaV™ modules, ensuring seamless integration.

Q3: Can the power carrier handle redundant power setups?

A3: Yes, it supports redundant configurations to enhance reliability and ensure uninterrupted power distribution.

Q4: What type of connections does the KJ4101X1-BC1 use?

A4: It features a high-integrity integrated bus for power and signal distribution to connected modules.

Q5: How does it maintain system stability under variable loads?

A5: The internal design ensures stable power regulation even during fluctuating load conditions in automation systems.

Q6: Is hot-swapping supported with the KJ4101X1-BC1?

A6: Yes, connected modules can often be hot-swapped when the system is properly configured for such operations.

Q7: What is the recommended operating temperature range?

A7: The carrier operates reliably between –20 °C and +70 °C, suitable for diverse industrial environments.

Q8: Does the unit provide surge protection for modules?

A8: While it maintains stable power delivery, external surge protection devices are recommended for added system safety.

Q9: Can it be used in high-vibration industrial settings?

A9: Yes, its rugged construction ensures reliable performance even under high vibration or mechanical stress.

Q10: How easy is it to integrate into existing DeltaV™ systems?

A10: Integration is straightforward due to its universal compatibility and tool-free installation process.
