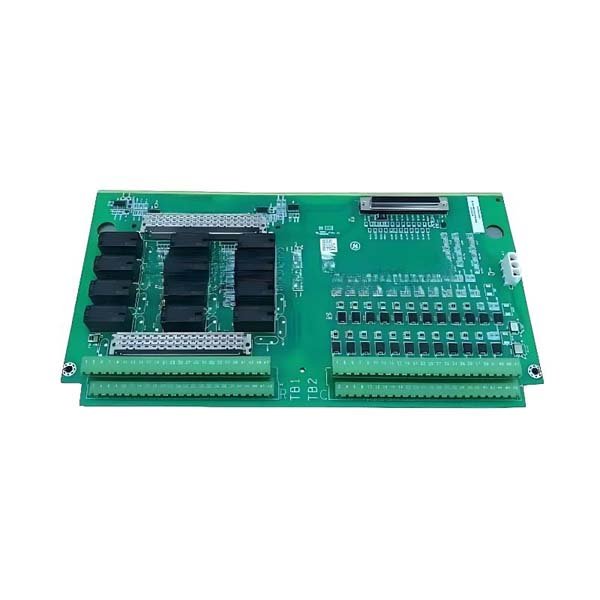

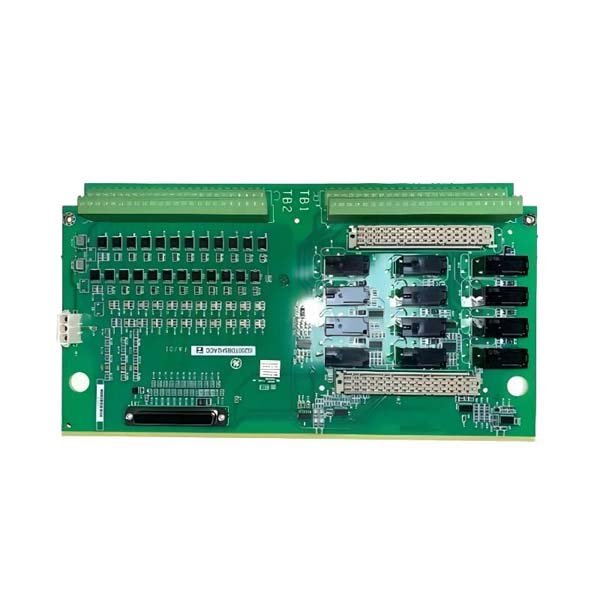

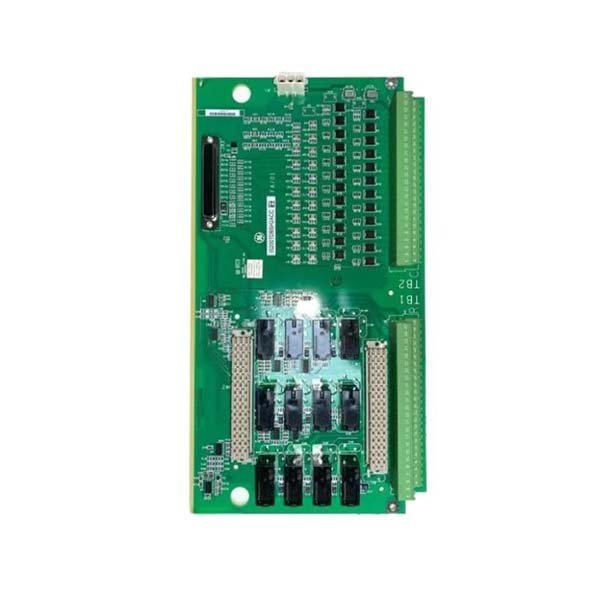

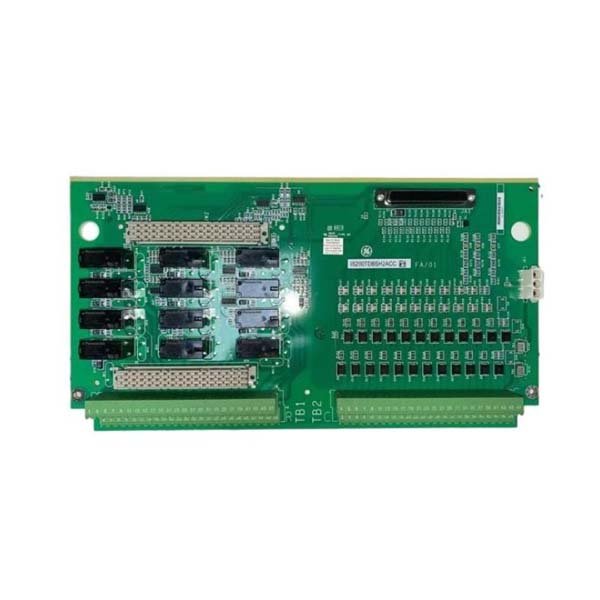

General Electric IS200TDBSH2AAA Terminal Digital Buffer Board

The GE IS200TDBSH2AAA is a terminal digital buffer board designed for precise signal routing within Mark VI and Mark VIe control environments. In practical field settings, this board acts as a stable interface between cabinet-level wiring and the controller’s logic modules. It ensures clean digital transitions, isolates noise, and organizes distributed I/O in a way that simplifies both commissioning and long-term maintenance.

Its construction supports robust cabinet installations where high-density wiring and repetitive switching activity demand predictable electrical behavior.

Hardware Details & Physical Characteristics

Typical Operating Environments

The IS200TDBSH2AAA is commonly applied in panels where digital signals must be cleanly delivered to controllers. It sees use in:

• Turbine protection and sequencing

• Distributed interlock networks

• Industrial machines with high digital channel counts

• Retrofit and expansion work where wiring density requires reliable buffering

• Hazardous-area cabinets that need noise-resistant signal isolation

Because it reduces switching noise and stabilizes incoming field signals, technicians often employ this board when troubleshooting intermittent digital behavior or upgrading aged terminal hardware.

Operational Benefits

From a maintenance perspective, the TDBS module provides clear wiring access and consistent digital-state behavior, which reduces troubleshooting time. The buffer circuits minimize false triggering, allowing operators to maintain stable interlock logic even under noisy electrical conditions. Its compact footprint helps in tightly packed cabinets without sacrificing accessibility.

FAQs

1. What is the primary function of the IS200TDBSH2AAA?

   It buffers and conditions incoming digital signals before they enter the control system.

2. Does it provide isolation?

   Yes, the module includes circuitry that reduces noise and electrical interference.

3. Can it be used interchangeably with H1 variants?

   Only if wiring layout and rack compatibility match; verification is required.

4. Does the board require configuration?

   No, it functions as a hardware interface and does not require software setup.

5. What symptoms point to a failing TDBS module?

   Unstable digital transitions, dropout of input states, or intermittent logic faults.

6. Is it part of the core control loop?

   No, it provides digital signal interfacing rather than processing logic.

7. Can the module support high-frequency switching?

   It handles standard industrial digital transitions reliably but is not intended for rapid switching applications.

8. What installation precautions apply?

   Proper grounding and cable shielding improve signal stability.

9. Is hot-swapping possible?

   No, power should be removed before replacement.

10. How long does the board typically last in service?

    Often more than a decade under normal cabinet conditions.
