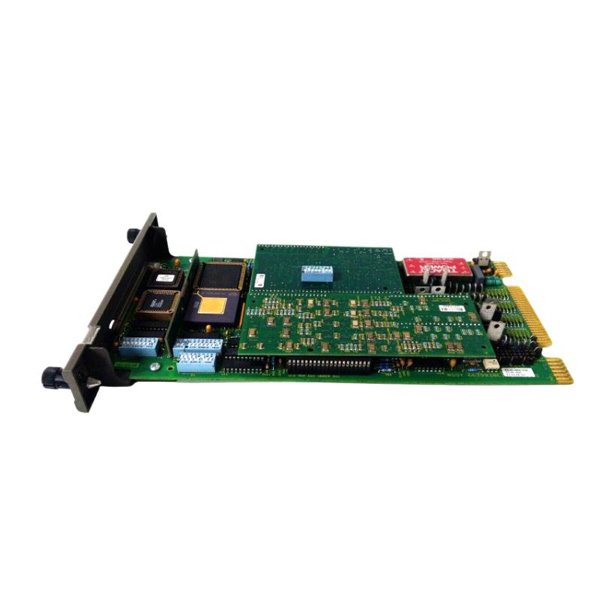

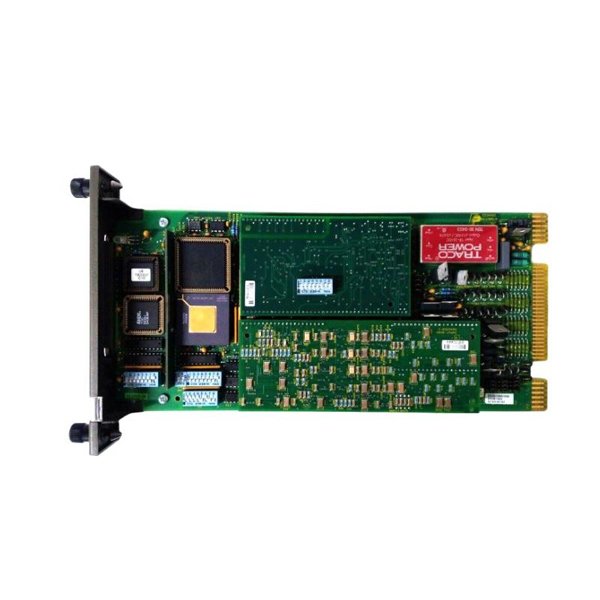

ABB Bailey IMRIO22 Remote I/O Module

The ABB Bailey IMRIO22 is a Remote Input/Output (I/O) Module engineered for the INFI 90 Distributed Control System (DCS). It acts as a communication bridge between field devices and the centralized controller, allowing the collection of process data and control commands over long distances. The IMRIO22 expands I/O capabilities in large industrial environments where centralized wiring is impractical or cost-prohibitive.

Designed for high-performance and reliability, this module plays a critical role in decentralized control architectures. It provides deterministic I/O communications and supports a wide range of analog and digital signal types. The module communicates with the controller via INFI-NET, ensuring seamless integration and fast data transmission with minimal latency.

Technical Specifications

Product Applications

The IMRIO22 is used in complex automation scenarios where remote monitoring and distributed control are necessary. Its applications include:

• Power Generation Facilities – Remote sensing of turbine temperatures, voltages, and pressures.

• Oil & Gas Platforms – Distributed control of pumps, valves, and compressors across extended facilities.

• Water & Wastewater Treatment – Monitoring tank levels, chemical dosing systems, and valve positions in remote plants.

• Steel and Metal Plants – Data collection from distant sensor networks for furnace and rolling control.

• Paper and Pulp Mills – Remote control of machines like paper feeders, cutting rollers, and steam valves.

• Pharmaceutical Plants – Accurate monitoring and control in clean rooms or isolated production areas.

Product Advantages

• Distributed Architecture Support: Enables decentralization of I/O, reducing wiring complexity and improving maintainability.

• High Communication Reliability: Utilizes INFI-NET protocol for stable, real-time data transfer.

• Redundancy Ready: Supports dual-channel redundancy to enhance system availability.

• Flexible Mounting: Can be mounted in racks or on DIN rails for versatile installation across plant zones.

• Modular Expansion: Easily scalable with additional I/O modules connected remotely.

• Industrial Durability: Built to operate under harsh environmental conditions.

• Reduced Latency: Real-time data access ensures faster control loop response.

• Long-Term Compatibility: Fully compatible with legacy INFI 90 systems, ideal for modernization and expansions.

Frequently Asked Questions (FAQ)

1. Q: What is the main function of the IMRIO22 module?

   A: It connects remote field I/O signals to the central DCS controller using the INFI-NET protocol.

2. Q: Is IMRIO22 compatible with non-ABB systems?

   A: No, it is specifically designed for ABB’s INFI 90 and Symphony DCS platforms.

3. Q: Can the IMRIO22 module be used in redundant configurations?

   A: Yes, it supports redundant communication paths for fault-tolerant operation.

4. Q: How is the module configured?

   A: Configuration is performed using ABB’s INFI 90 configuration tools or Composer software.

5. Q: What kind of I/O signals are supported?

   A: It supports analog (e.g., 4–20 mA), digital (e.g., 24 VDC), and pulse signals through connected modules.

6. Q: Is it possible to install IMRIO22 outdoors?

   A: The module must be housed in a protected enclosure as it has an IP20 protection rating.

7. Q: How does IMRIO22 handle power supply interruptions?

   A: It resumes operation automatically upon power restoration and maintains communication states.

8. Q: Can multiple IMRIO22 modules be used in one system?

   A: Yes, several remote I/O modules can be integrated within the same DCS network.

9. Q: What is the typical power consumption of the module?

   A: Power consumption is low (approx. 5–10 Watts), depending on I/O load.

10. Q: What are the diagnostics available on the module?

    A: Front panel LEDs indicate power, communication status, and fault conditions.
