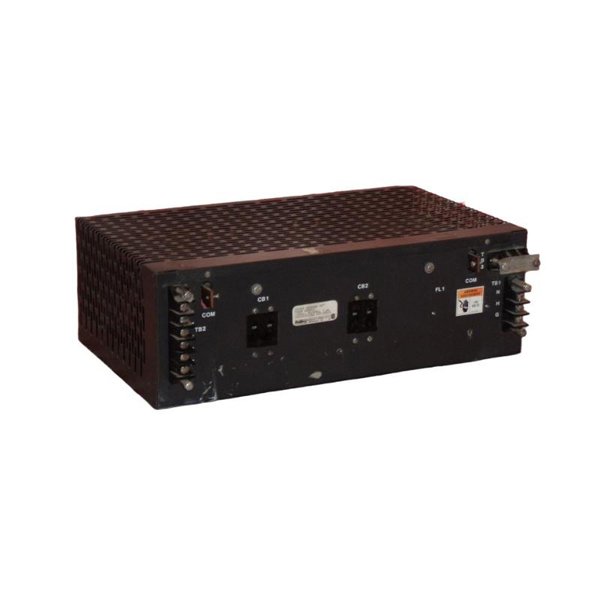

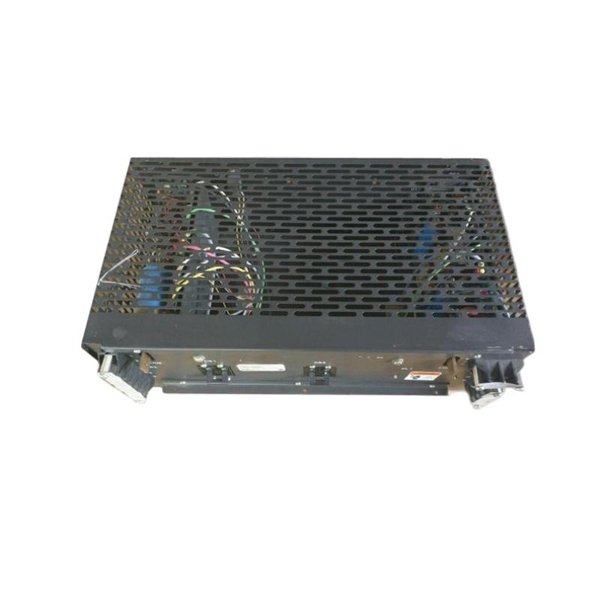

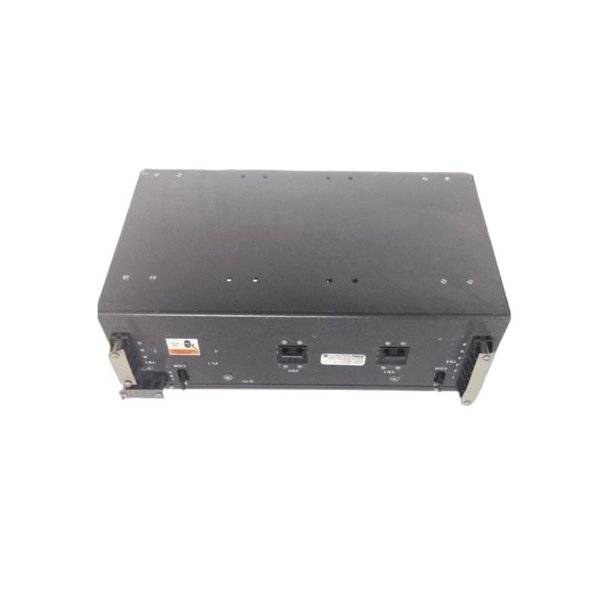

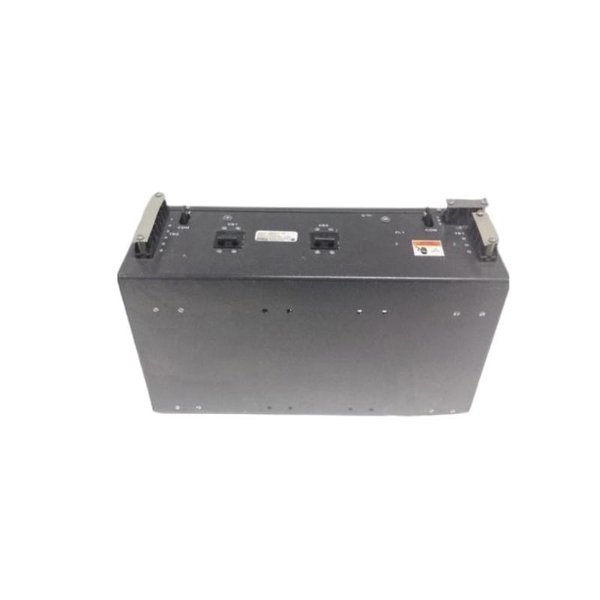

ABB Bailey NSPS01 Power Supply Module

The ABB Bailey NSPS01 Power Supply Module is a crucial component in industrial control systems, providing stable and reliable power to various electronic devices and systems. This power supply unit is designed specifically for use in the ABB Bailey control system, offering high efficiency and excellent performance in demanding environments. With a focus on robust design and operational reliability, the NSPS01 ensures continuous system operation even under challenging conditions.

The NSPS01 module features an advanced power conversion technology, making it capable of handling a wide input voltage range while maintaining consistent output voltage for the connected systems. This capability makes it ideal for a variety of industrial applications, especially where equipment stability and power reliability are essential.

As part of ABB’s Bailey series, the NSPS01 power supply module supports both standard and critical loads in complex control systems, ensuring high availability and preventing system downtime. With features designed to meet the most stringent industrial standards, it is highly durable and suitable for use in harsh environments where electrical noise and interference are common.

Product Specifications

Product Applications

The ABB Bailey NSPS01 Power Supply Module is designed to support a variety of applications where reliable power supply and system stability are required:

• Industrial Control Systems: Essential for powering the control systems used in manufacturing and production lines, automation processes, and industrial machinery.

• Process Control: Used in chemical plants, oil refineries, and food processing industries where uninterrupted power is critical to maintain continuous operation.

• Building Management Systems (BMS): Suitable for providing power to the centralized control systems in commercial and industrial buildings, ensuring the smooth operation of HVAC, security, and lighting systems.

• Data Centers: The NSPS01 is perfect for powering equipment in data centers, where a stable and efficient power supply is necessary to support sensitive server and network equipment.

• Power Distribution Systems: Used in energy management applications, where it can provide power to critical components of the power grid or energy monitoring systems.

• Heavy Machinery and Robotics: Powers control systems in heavy machinery or robotic applications, offering a stable supply for operation in rugged and demanding environments.

Product Advantages

• High Efficiency: The NSPS01 power supply module operates with an efficiency rate greater than 90%, ensuring minimal energy waste and contributing to lower operational costs.

• Wide Input Voltage Range: With an input voltage range of 85-264 V AC, the module can accommodate various power sources, making it adaptable for use in different geographical regions with varying power supply standards.

• Stable Output Voltage: It provides a stable 24 V DC output, making it ideal for powering sensitive electronic equipment that requires consistent power for reliable operation.

• Fan Cooling for Optimal Performance: Equipped with fan cooling, the NSPS01 maintains optimal temperature levels even in high-demand environments, preventing overheating and ensuring long-term reliability.

• Compact and Robust Design: The module’s compact size (390 x 215 x 140 mm) and weight (9.66 kg) allow for easy installation in standard racks and cabinets, while its rugged build makes it durable and capable of operating in harsh industrial environments.

• Wide Operating Temperature Range: It can operate in temperatures ranging from -20°C to +60°C, providing reliable performance even in extreme environmental conditions.

• Compliant with Industry Standards: The NSPS01 meets global industry standards, including CE, UL, and RoHS, ensuring it adheres to safety and environmental regulations.

FAQ

1. Q: What is the input voltage range for the ABB Bailey NSPS01 power supply module?

   A: The input voltage range is 85-264 V AC, making it suitable for use in regions with varying power supply standards.

2. Q: What is the output voltage of the NSPS01?

   A: The NSPS01 provides a stable 24 V DC output, ideal for powering control systems and electronic devices.

3. Q: How much current can the NSPS01 output?

   A: The NSPS01 has an output current capacity of 5 A.

4. Q: What is the efficiency rating of the ABB Bailey NSPS01?

   A: The NSPS01 operates with an efficiency of over 90%, ensuring minimal energy loss.

5. Q: What is the operating temperature range of the module?

   A: The NSPS01 can operate in temperatures ranging from -20°C to +60°C, making it suitable for harsh environments.

6. Q: How is the ABB Bailey NSPS01 module cooled?

   A: The module is fan-cooled, ensuring it remains at optimal operating temperatures during high-demand periods.

7. Q: What is the weight of the ABB Bailey NSPS01?

   A: The NSPS01 weighs 9.66 kg.

8. Q: Can the ABB Bailey NSPS01 be used in industrial control systems?

   A: Yes, it is specifically designed to support industrial control systems and other critical applications.

9. Q: How is the ABB Bailey NSPS01 mounted?

   A: The module is rack-mounted, providing ease of installation in control cabinets or industrial racks.

10. Q: Is the ABB Bailey NSPS01 compliant with industry standards?

    A: Yes, the NSPS01 is compliant with CE, UL, and RoHS certifications, ensuring it meets safety and environmental regulations.
