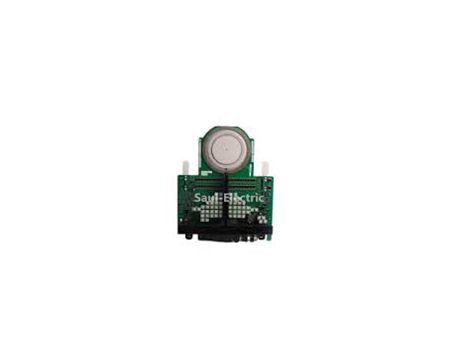

ABB 5SGY3545L0009 3BHB006485R0001 Power Semiconductor Module
Manufacturer: ABB
Product Number: 5SGY3545L0009 (3BHB006485R0001)
Category: IGCT Power Semiconductor Module
System Platform: ACS6000 Medium Voltage Drive System
Voltage Rating: 4500 V
Current Rating: 4000 A RMS
Switching Frequency: Up to 500 Hz
Cooling Method: Deionized water cooling
Application: Medium voltage drives, steel rolling mills, marine propulsion, mining conveyors, industrial power conversion[citation:6]
Product Description
The ABB 5SGY3545L0009 3BHB006485R0001 is a power semiconductor module designed for industrial control systems. It combines multiple power semiconductor devices (such as MOSFETs, IGBTs, etc.) to form a complete module through advanced packaging technology.
Features
- High Performance: Designed for high-performance applications.
- Compact Structure: Highly compact size for easy integration.
- Advanced Protection: Offers advanced protection levels.
- Versatile Output: Supports both NPN and PNP output modes.
Technical Specifications
- Model: 5SGY3545L0009 3BHB006485R0001
- Working Voltage: 10~30VDC
- Current Consumption: 30mA
- Sensing Distance: 30cm
- Dimensions: 13.5 (W) x 25.0 (H) x 30.0 (L) cm
- Weight: 2.64 kg
