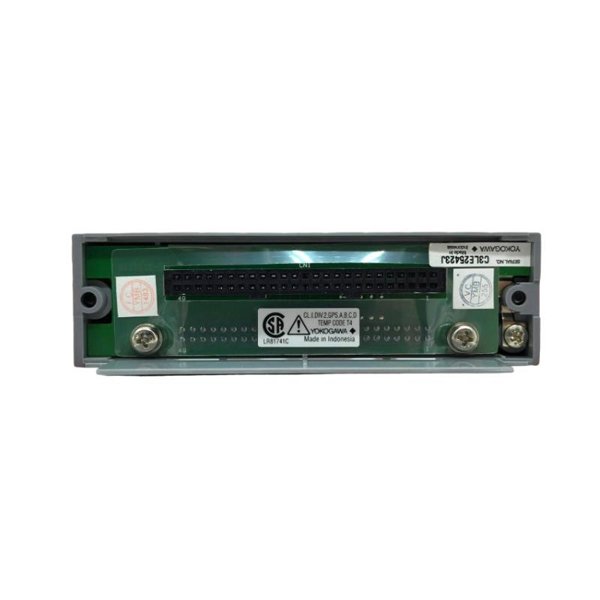

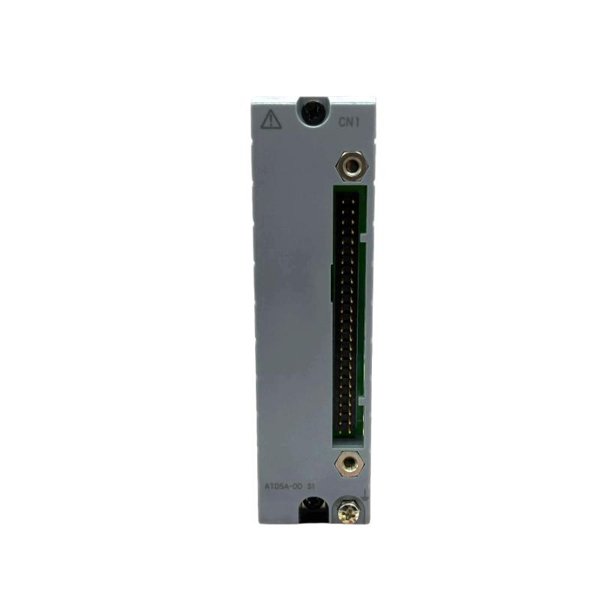

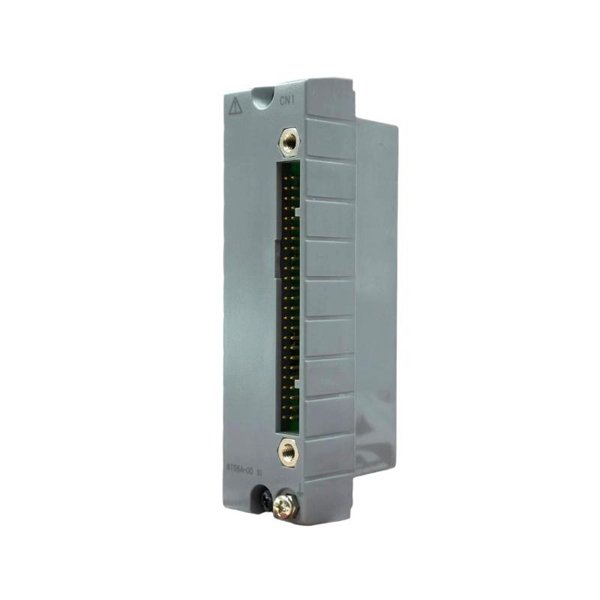

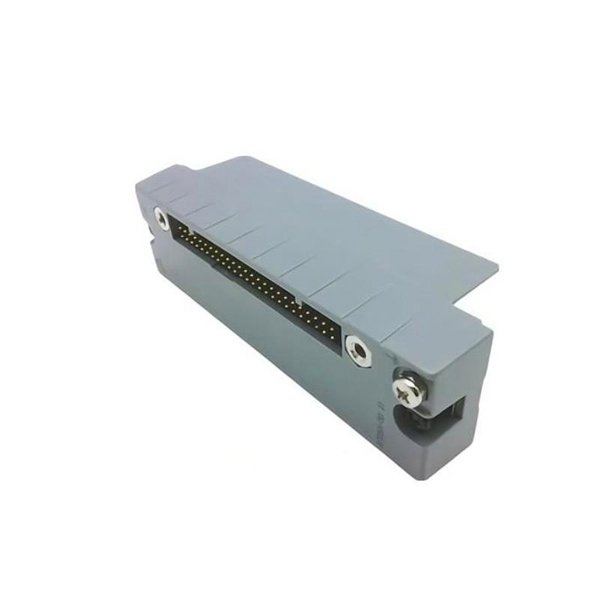

Yokogawa ATD5A KS Cable Interface Adapter

The Yokogawa ATD5A KS Cable Interface Adapter is a highly reliable interface device designed to ensure seamless connection between field wiring and control system modules. Part of Yokogawa’s instrumentation and I/O infrastructure portfolio, the ATD5A serves as a bridge between system components, helping reduce installation complexity and ensure consistent signal quality.

This adapter is specifically engineered for use in CENTUM series Distributed Control Systems (DCS), especially where plug-and-play connections to analog or digital I/O modules are required. By facilitating the transition between I/O cards and terminal blocks or junction boxes, the ATD5A minimizes manual wiring errors and significantly enhances maintainability and system reliability.

The ATD5A KS variant is configured for KS cables—Yokogawa’s standard connection system—making it ideal for modular and scalable control system designs in process industries.

Technical Specifications

Applications

The ATD5A KS Cable Interface Adapter is used in a broad range of industrial automation and control applications. It serves as a reliable intermediary between system wiring and I/O hardware, providing orderly and secure electrical signal routing. Common applications include:

• Chemical Processing Facilities – Reduces wiring complexity in modular control cabinets.

• Oil & Gas Operations – Interfaces field instrumentation in high-density rack systems.

• Power Generation Plants – Enables quick connection/disconnection during maintenance.

• Pharmaceutical Manufacturing – Ensures clean and compliant I/O wiring layout.

• Water Treatment Facilities – Organizes I/O wiring for pumps, valves, and sensors.

• Food & Beverage Industry – Supports hygienic and traceable automation wiring schemes.

Product Advantages

• Simplified Installation: Reduces hardwiring time and potential errors through plug-and-play KS cable compatibility.

• Space Saving Design: Compact size allows high-density mounting inside control cabinets.

• Universal Compatibility: Works with a variety of Yokogawa I/O modules and systems.

• High Signal Integrity: Shielded and grounded design minimizes electrical noise.

• Modular Structure: Easily replaceable and serviceable during system expansions or upgrades.

• Durability: Made from flame-retardant material to comply with industrial safety standards.

• Secure Connection: MIL-grade connectors ensure stable and long-term signal performance.

• Flexible Mounting Options: Supports DIN rail or panel mounting for various cabinet layouts.

Frequently Asked Questions (FAQ)

1. What is the ATD5A KS used for?

   It serves as a cable interface adapter between Yokogawa I/O modules and KS standard cables.

2. Which control systems support the ATD5A?

   It is compatible with Yokogawa’s CENTUM VP and CENTUM CS series systems.

3. Does the ATD5A KS support analog and digital signals?

   Yes, it supports both analog and digital I/O connections depending on the module type.

4. Is it DIN rail mountable?

   Yes, it can be mounted on a DIN rail or directly onto a panel.

5. How many channels does it support?

   Typically up to 32 signals, depending on system configuration and wiring.

6. Is it suitable for high-vibration environments?

   Yes, when properly mounted and installed, it withstands industrial vibration levels.

7. What are the connector types used?

   The adapter uses 40-pin or 50-pin MIL-style connectors compatible with KS cables.

8. Does it include surge or overcurrent protection?

   Protection must be provided externally or via associated I/O modules.

9. Can I use this adapter for field instrumentation wiring?

   Yes, it acts as a terminal bridge between field wiring and system modules.

10. Is it compliant with safety and environmental regulations?

    Yes, it is CE certified and RoHS compliant.
