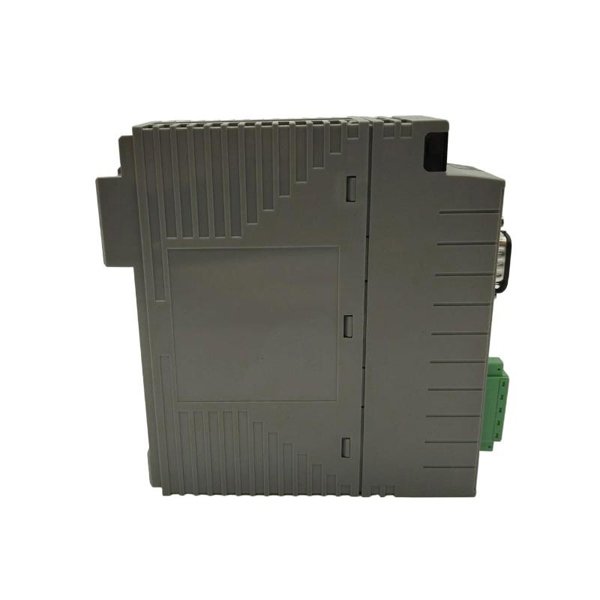

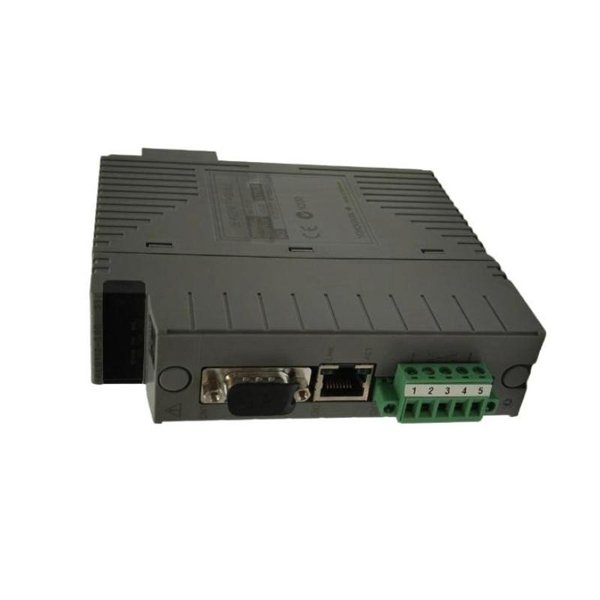

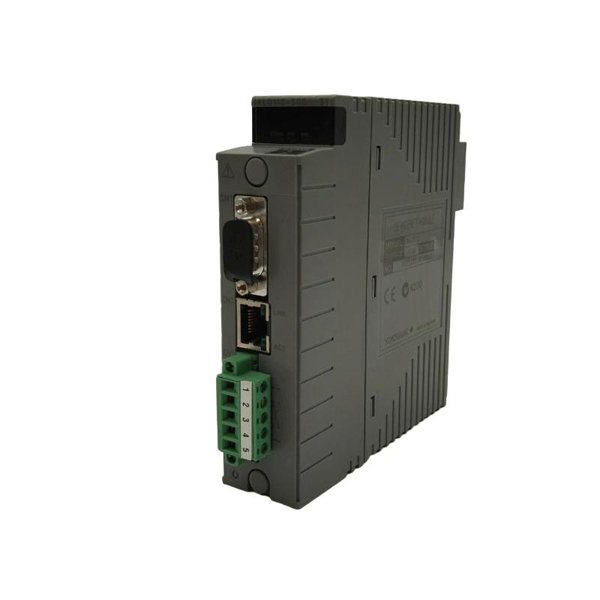

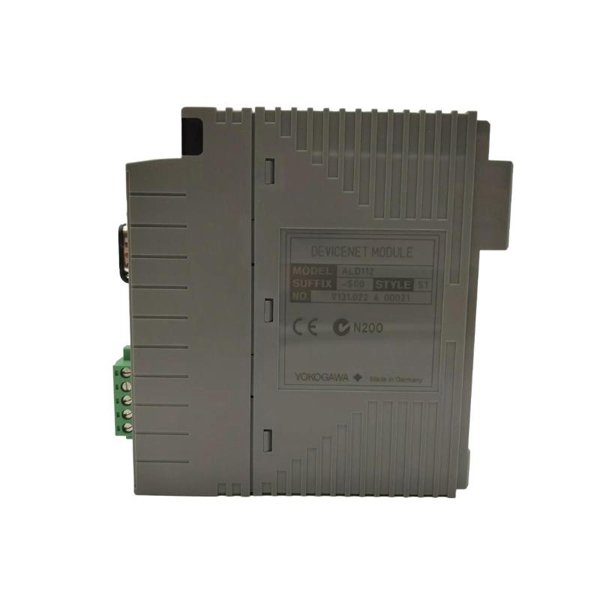

Yokogawa ALD112-S00 S1 DeviceNet Module

The Yokogawa ALD112-S00 S1 DeviceNet Module is a communication interface module designed to facilitate the integration of Yokogawa control systems with DeviceNet networks. DeviceNet is a popular industrial network protocol widely used for connecting control devices and field instruments in automation systems.

This module allows Yokogawa’s controllers and field devices to communicate efficiently with DeviceNet devices, enabling seamless data exchange and control across the network. It supports robust industrial communication, enhancing the flexibility and interoperability of process control and automation setups.

Technical Specifications

Applications

• Integration of Yokogawa control systems with DeviceNet networks

• Communication between controllers, I/O modules, and field devices over DeviceNet

• Industrial automation in manufacturing, process industries, and infrastructure

• Data acquisition and control in distributed control systems

• Enhancing interoperability in multi-vendor automation environments

Advantages

• Seamless Integration: Enables Yokogawa systems to connect with DeviceNet networks effortlessly.

• Flexible Network Speeds: Supports common DeviceNet speeds (125/250/500 kbps).

• Multiple Node Support: Accommodates up to 64 DeviceNet nodes for scalable network size.

• Dual Ports: Provides two DeviceNet ports for network expansion or redundancy.

• Robust Industrial Design: Suitable for harsh operating environments.

• Compact and Modular: Rack-mounted form factor fits into Yokogawa system racks easily.

• Compliance and Reliability: Meets stringent industrial safety, EMC, and communication standards.

Frequently Asked Questions (FAQ)

1. What communication protocol does the ALD112-S00 support?

   It supports the DeviceNet protocol using CIP (Common Industrial Protocol).

2. How many DeviceNet nodes can be connected?

   Supports up to 64 nodes on the DeviceNet network.

3. What network speeds are supported?

   125 kbps, 250 kbps, and 500 kbps.

4. How many DeviceNet ports does the module have?

   It has two DeviceNet ports for connection and expansion.

5. What are the operating temperature limits?

   Operates between 0°C and 55°C.

6. Is the module rack-mounted?

   Yes, it is designed for rack mounting within Yokogawa control system racks.

7. What power supply is required?

   Requires a 24 V DC power supply.

8. Is the module compatible with other Yokogawa modules?

   Yes, it integrates seamlessly within Yokogawa’s control system environment.

9. Does the module meet industrial safety and EMC standards?

   Yes, it complies with relevant standards for safety and electromagnetic compatibility.

10. What industries typically use this module?

    Used across manufacturing, petrochemical, power generation, water treatment, and other industrial automation sectors.
