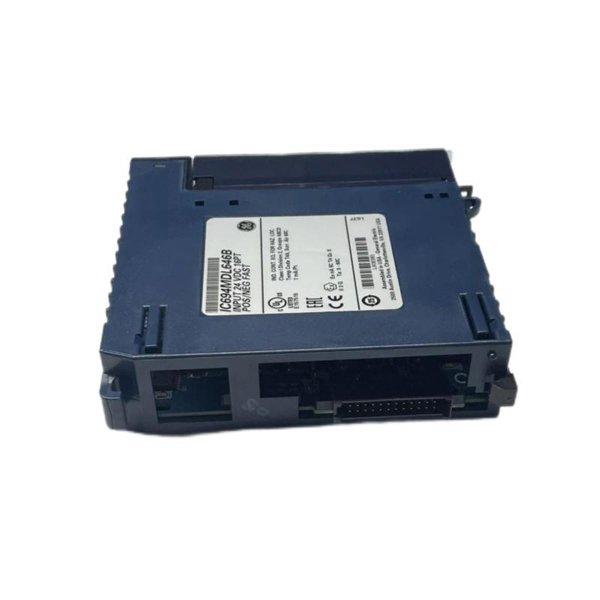

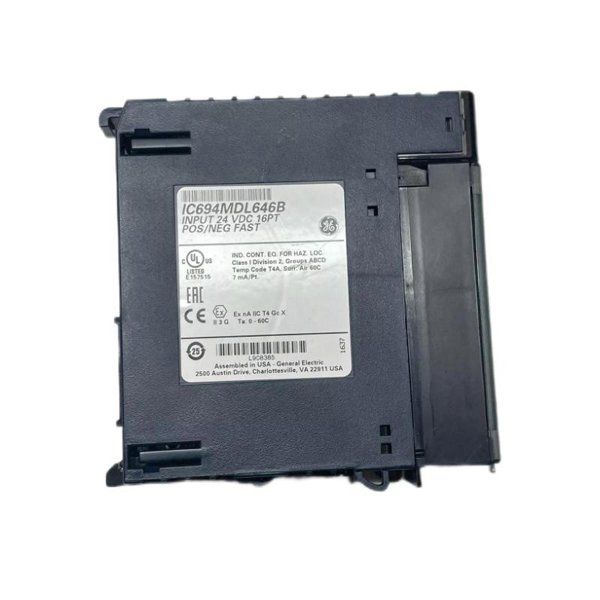

General Electric IC694MDL646B 24 VDC 16-point positive/negative logic Input Module

The GE IC694MDL646B is a digital input module designed for use in the GE Fanuc series of programmable logic controllers (PLCs). This module provides high-speed input monitoring, designed to interface with external devices and sensors to provide real-time data to a central control system. It’s part of the Series 90-30 system and is ideal for use in various industrial automation applications.

This module is equipped with 16 digital input points, providing flexibility and precision in controlling industrial machinery and processes. With its advanced features and easy integration into the PLC system, it significantly enhances system performance and operational efficiency.

Product Features & Advantages

• High-Speed Input Monitoring: The module supports fast, real-time input processing, making it ideal for high-speed applications.

• Compact Design: Its compact form factor allows for easy installation and integration into the existing PLC system.

• Reliable Performance: Built to withstand harsh industrial environments, the module offers stable and reliable performance over time.

• Wide Compatibility: The IC694MDL646B is compatible with other components of the GE Fanuc Series 90-30 system, ensuring seamless communication within the automation environment.

• Cost-Effective: It offers high-quality performance at a competitive price, making it a cost-effective solution for industrial applications.

Specifications

Applications

The GE IC694MDL646B module is widely used in various industrial sectors where precise control and monitoring of digital signals are required. Some of its key applications include:

• Automated Manufacturing: Used in factories and plants for controlling machinery and robots.

• Process Control: Provides essential input to PLCs for managing industrial processes such as chemical processing, food production, and material handling.

• Machine Monitoring: Helps monitor machine states and system performance in real-time.

• Building Automation: Integrates into systems for controlling lighting, heating, ventilation, and air conditioning (HVAC) in commercial and industrial buildings.

Installation Instructions

1. Mounting: Insert the IC694MDL646B module into the GE Fanuc Series 90-30 rack.

2. Wiring: Connect the input devices to the input terminals on the module. Ensure correct polarity for proper signal detection.

3. Configuration: Configure the module in the PLC software, ensuring it is correctly mapped to the intended addresses in the control system.

4. Testing: Once installed, power up the system and test each input point for correct operation by monitoring the status LEDs on the module.
