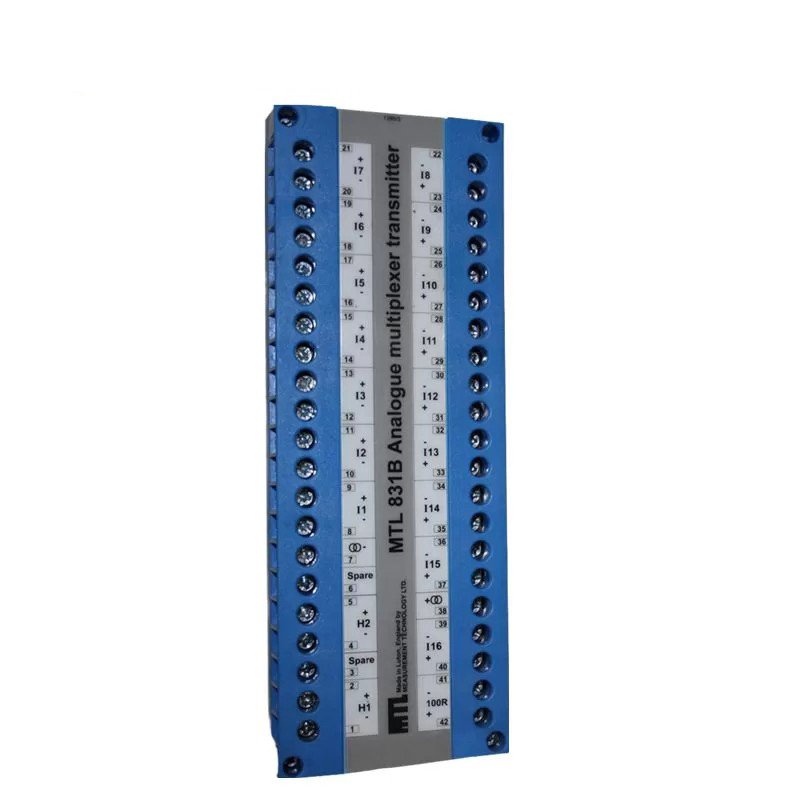

MTL 831B Analog Multiplexer Transmitter
Manufacturer: MTL (Eaton)
Product Number: 831B
Category: Intrinsic Safety Multiplexer / Analog Multiplexer Transmitter
Series: MTL830 Series
Input Channels: Up to 16 thermocouple/mV sources (±60mV max) or up to 15 RTDs (2/3/4-wire)
Hazardous Area Compatibility: Zone 0, IIC, T4
Communication: Dual redundant data highways, loop-powered from receiver
Transmission Distance: Hazardous area up to 2km, safe area up to 3km
Operating Temperature: -20°C to +60°C
Mounting: ENC8/ENC83 series chassis
Compatible Receivers: MTL838C receiver
Application: Hazardous area temperature monitoring, petrochemical, oil and gas, process automation[citation:7 from previous batch]
Product Description
The MTL831B is an analog multiplexer transmitter designed for hazardous areas. It offers a versatile solution for monitoring and transmitting temperature measurements from multiple thermocouples (TC) or resistance temperature detectors (RTD) to a control system.
Key Features
- Multiple Inputs: Accommodates up to 16 TC or 15 2-, 3-, or 4-wire RTD inputs.
- Hazardous Area Certification: Certified for hazardous environments, meeting relevant safety standards.
- Analog Outputs: Provides analog outputs for seamless integration with control systems.
- Modbus Communications: Supports the Modbus protocol for serial data output.
- Redundancy: Includes redundant data highways for enhanced reliability.
- Safety Barrier: Incorporates a safety barrier to protect control systems from hazardous area conditions.
Technical Specifications
- Input Types: Thermocouples (TC) or Resistance Temperature Detectors (RTD)
- Number of Inputs: Up to 16 TC or 15 RTD
- Input Range: Varies based on the TC or RTD type
- Output: Analog (e.g., 4-20mA)
- Communications: Modbus
- Safety: Certified for hazardous area use
- Power Supply: Typically 24VDC
Applications
- Process Control
- Oil and Gas
- Chemical Processing
- Power Generation
